Whistle (key finder)
Colin Mitchell
Colin Mitchell
June 18, 2009
Make sure to subscribe to our newsletter and be the first to know the news.

Table Of Contents

Whistle Parts List

[Kits are available](mailto:colin@elechelp.com?Subject=Buying components for the Whistle Key Finder&Body=Please e-mail the cost of components for the Whistle Key Finder on prototype PC board by air mail to my country:****___**** and send details of how I can pay for it. My name is:____) for this project from Talking Electronics for $10.00 plus postage.
Plus you will need: 6pin to 5pin adapter @ $2.50

You will also need:

  • Chip Programmer - PICkit2 from Modtronix (MPASM and MPLAB come with PICkit2) and it includes USB lead
  • PIC12F629 Data Sheet (.pdf 4,926KB)
  • Instruction Set for PIC12F629
  • blank12F629.asm template
  • PIC12F629.inc

See more projects using micros:

Why spend $2 on a “Whistle Key Finder” when you can spend $10.00 on producing your own design?
Because you don’t learn anything when you buy the $2.00 device.

Whistle Iso

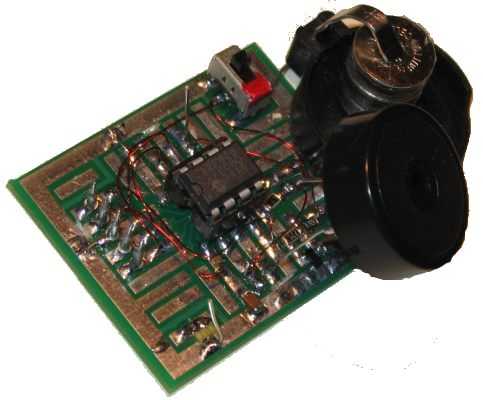

Whistle Key Finder on prototype board. The piezo has been moved slightly to show the surface-mount components. The 5 pins on the left are for In-Circuit Programming. The coin holder positive has been bent to hold 3 button cells. The LED on the lower corner was used to test the chip.

This project uses one of the smallest chips in the PIC microcontroller range, the PIC12F629 and you can learn to program it and experience the thrill of making something yourself and see what goes into writing a program.
Even a program as simple as this one is not easy to put together and if you are starting from scratch, you will need a programmer (a “burner”) and all the data that goes with “burning” and creating a program for the micro. We use the PICkit-2 as it is the cheapest and best. It comes with USB cable and 2 CD’s containing the programs needed to “burn” the chip. You will also need NotePad2 to write your .asm program
(use Whistle.asm or Whistle.txt as a template for your program).

The PC board includes 5 pins for “In Circuit Programming” via PICkit-2 and you will be encouraged to use surface-mount components to interface the piezo diaphragm to the chip.
One of the clever parts of the circuit is the piezo is used to detect the sound and then produce the beep-beep-beep reply.
Be reminded that not all piezo diaphragms are the same. Some are very sensitive when detecting audio and others are not sensitive at all.
Ours produces an output of about 20mV to 50mV when whistling up-close, while an insensitive diaphragm will produce only a few millivolts.

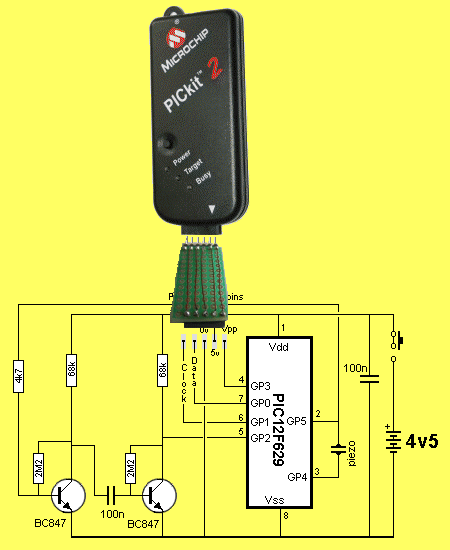

The circuit consists of two common-emitter stages with enough gain to produce a rail-to-rail signal when the piezo detects a whistle.
We are not concerned about distortion or over-driving the chip as we want a fairly square wave.
A super-alpha arrangement was tried using two transistors but it did not work at all.
It is surprising how “theory” does not always work in practice and that’s why you must try everything before settling on a result. Each stage has a gain of approx 70, making the total approx 5,000. This allows a 1mV signal from the piezo to produce a rail-to-rail waveform.
As we mentioned, the interesting feature of the circuit is the use of the piezo to detect a signal and then produce a beep. This has been done by making the piezo “float.”
It is not connected to any rail and although it is connected to pins of the chip, these can be made “inputs” and thus become high impedance.
The 4k7 on the base of the transistor allows the piezo to be driven by the chip in “bridge-mode” where the pins are alternately made high then low so that twice the supply voltage is effectively delivered across the piezo to increase its output.
Without the 4k7, the lead of the piezo would not rise above 0.6v due to the base-emitter voltage limitation.
When the piezo is required to detect a signal, one lead is connected to 0v via a pin of the chip and the other lead connects to the base via the 4k7. The pin on the chip is changed to “input” during this operation.
When the piezo is activated, the signal is also amplified through the transistors but the chip is not in detection-mode and this signal is not detected.


To keep in line with miniaturisation, we have used surface-mount components. Once you start using surface-mount components, you get hooked. Through-hole components seem enormous. You will need fine tweezers to hold them in place while one end is soldered.
Always use very fine solder as you only need very little for each component and the main reason for adding extra is to take advantage of the flux to clean the connection. Always solder resistors with the value showing. Capacitors don’t have values marked on them and you cannot work out the value by the size of the component.
That’s why you have to know the value before taking them out of their “carrier.”


You can build the circuit on any type of PC board and we have used a small prototype board that needs some of the tracks cut to suit the placement of the 8 pin IC socket.
The kit of components comes with all the parts you need to get the project working, including a pre-programmed chip and a prototype PC board that needs some tracks cut.
We will not describe any construction details as most constructors will be adept in placing components. The only thing to remember is to cut the tracks before fitting the IC socket as some tracks run under the socket.

To modify the program you will need a PICkit-2 programmer and this comes with 2 CD’s containing all the software needed for In-Circuit Programming.
You will also need a lead to connect the programmer to your lap top via the USB port (comes with PICkit-2) and an adapter we call a 6pin to 5 pin Adapter to connect the PICkit-2 to your project. (The photo below shows the prototype 6pin to 5 pin Adapter. A PC board is now available for the adapter.)

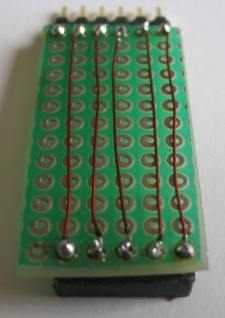

6pin to 5pin Adapter

6pin to 5pin Adapter

PICkit-2 and Adapter connected for In-Circuit Programming


The program detects the signal from the diaphragm and only processes a waveform that falls in the 2kHz region. A 2kHz signal has a period of 1,000,000 / 2,000 = 500uS. The period of a waveform is the time taken to travel from the 0v level to the maximum (positive), then to the max negative and back to the 0v level. Of course this time is also the distance between two peaks but it is more convenient to describe it in our terms (starting at the 0v level).
This means the time when the signal will be HIGH will be 250uS and 250uS for a LOW.
If we take the HIGH portion, we can “open the gate of the chip” by making a pin INPUT and looking at that pin to see if it is HIGH. The signal will create a HIGH on the pin.
We create a very short-duration loop to look for a HIGH and when it is detected, we delay nearly 250uS and see if it is still HIGH.
A short time after this, the signal should be LOW and if this is the case, we look for a LOW of about 250us and see if the signal becomes HIGH just after 250uS.
This is the principle of looking for a 2kHz signal and we have allowed for a “look” just slightly before and after 250uS to cater for frequencies just slightly above and below 2kHz. Each time the micro detects a high and low, it increments a file called “count.”
Now, there’s what is also happening:
We are only looking for a signal for about 100mS (100,000uS) and this “time-delay” is done in the background via a set of registers that are incremented by the clock in the PIC chip.
When the registers fill and roll over, the micro leaves the section it is executing and goes to a sub-routine called “isr.” This is the Interrupt Service Routine and it tells the micro to go to Main2 where the number of cycles stored in the “count” file is released as beeps from the piezo.
But first, only values in the high nibble in the “count” file are used. The nibbles are swapped so that the value in the upper 4 bits will be used. The register is then shifted two places to the right so that the two top bits appear in the lowest places in the register. The register is then masked to get only the two lowest bits. This produces 1, 2, 3 or 4 beeps.
Finally, the program has a delay in the “isr” that makes the micro beep 3 times after approx 1-minute of non-detection.
The most difficult part of the program is detecting a narrow band of frequency. We have done this in the section “aa” to “dd” but it can be improved and it is your job to narrow this filter and only detect a whistle.
The micro loops around the instructions contained at “aa,” “bb,” “cc,” “dd” and when the 131,072uS has been reached, the micro goes to address 4 where it finds the instruction to go to isr. This is how it gets out of the loop.

Another important feature of this program is the coverage of the INTERRUPT routine.
To enable the micro to count in the background then go to the interrupt location (address 4), requires a number of bits to be set in a number of files. The setting of these bits in the various files is shown in “Main.”
When you are creating another project that requires similar “counting in the background,” you will be able to “cut and paste” the code. (Point to remember: Timer0 does not produce a long delay, so Timer1 has to be used).

Here are the files you will need:

    ;Whistle (Key Finder) 12F629.asm
    ;  9-7-2009

    list    p=12f629
    radix   dec
    include "p12f629.inc"

    errorlevel  -302    ; Don't complain about BANK 1
                ;  Registers during assembly

            & _WDT_OFF & _INTRC_OSC_NOCLKOUT  ;Internal osc.

    ;Files for 12F629 start at 20h

temp1         equ   20h
temp2         equ   21h
count         equ     22h
beep          equ     23h
timer         equ   24h     ;beeps after 1 minute to let you know it's on

    ; globals

GPIO        equ   05h

status        equ     03h
option_reg  equ     81h
TRISIO        equ     85h

                        ; bits

pin7    equ 0   ;GP0
pin6    equ 1   ;GP1
pin5    equ 2   ;GP2 and T0CkI
pin4    equ 3   ;GP3 input only
pin3    equ 4   ;GP4
pin2    equ 5   ;GP5

z   equ 2   ;zero flag


rp0 equ 5   ;bit 5 of the status register

Start   org   0x00  ;program starts at location 000
      goto  SetUp
      nop             ;NOPs to get past reset vector address
      org     4
      goto  isr

SetUp   movlw   07h      ;Set up W to turn off Comparator ports
      movwf   CMCON    ;must be placed in bank 0
      goto    Main     ;Main


_25uS   movlw     .7
      movwf   temp1
      decfsz    temp1,1
      goto    $-1
      retlw   00

_130uS  movlw     .45
        movwf     temp1
        decfsz  temp1,1
        goto      $-1
        retlw     00

_250uS  movlw     .84
        movwf     temp1
        decfsz  temp1,1
        goto      $-1
        retlw     00

_100mS  movlw     .100
        movwf     temp2
        decfsz  temp1,1
        goto      $-2
        decfsz  temp2,1
        goto      $-4
        retlw   00

_250mS  movlw     0FFh
        movwf     temp2
        decfsz  temp1,1
        goto      $-2
        decfsz  temp2,1
        goto      $-4
        retlw   00

    ;interrupt service routine

isr     nop
        decfsz  timer,1     ;creates 1 min delay to let you know it is on.
        goto      Main1
        movlw     03
        movwf     count
        goto      sss

Main      bsf     status,rp0    ;Bank 1
        movlw   b'00100100' ;Set GP2 input  GP5 input
        movwf   TRISIO
        movlw   b'10010100'
        movwf   OPTION_REG  ; x000 0000 x=1= weak pull-ups disabled
                ; 0x00 0000 INTDEG Don't care
                ; 00x0 0000  x=0 = internal instruction clock
                ; 000x 0000 Count on falling edge - don't care
                ; 0000 x000 0=prescaler assigned to timer0
                ; 0000 0xxx = 111 = 1:128  x100=1:32
        bcf   status,rp0    ;bank 0
        bcf   GPIO,4
        call    _100mS        ;(settling time)
        movlw   b'10100000' ;b'10100000'
        movwf INTCON          ;,0  1=GP0,5 interrupt flag
                ;,1  1=GP2 interrupt occurred
        ;bcf    INTCON,2    ;1=TMR0 overflowed. Clear overflow flag
        ;bcf    INTCON,3    ;1=enable GPIO port change interrupt
        ;bcf    INTCON,4    ;1=enable GP2 external interrupt
        ;bsf    INTCON,5    ;1=enable TMR0 overflow (interrupt)
        ;bcf    INTCON,6    ;1=enable all peripheral interrupts
        ;bsf    INTCON,7    ;1=enable all unmasked interrupts

    bcf INTCON,5    ;0=disables TMR0 interrupt
    bsf INTCON,6    ;1=enable all peripheral interrupts

    movlw   b'00010101' ;b'00110001'
    movwf   T1CON       ;,7  not used
                ;,6 0=Timer1 is ON
                ;,5,4  11=8 prescale (max) 01=1:2
                ;,3 bit ignored
                ;,2 This MUST BE SET!!!!!!
                ;,1 0=int clock
                ;,0 1=enable timer
    bsf status,rp0  ;Bank 1
    bsf PIE1,0      ;,0 1=enables TMR1 interrupt
    bcf status,rp0  ;bank 0
    bcf PIR1,0      ;clear TMR1 overflow flag

    clrf    TMR1L       ;clear the Timer1 low register
    clrf    TMR1H       ;clear the Timer1 high register
    clrf    count       ;count the number of cycles
                ;Timer0 is not used
                ; will go to isr when overflow occurs in TMR1
                ;0.13 sec when prescaler=1:2  131,072uS
                ;input is LOW when no audio detected.

aa  call    _25uS
    btfss   GPIO,2      ;Is input HIGH?  Start with a HIGH
    goto    aa
bb  call    _250uS
    btfss   GPIO,2      ;Is input LOW?
    goto    cc
    goto    aa          ;freq too low

cc  call    _250uS
    btfsc   GPIO,2      ;Is input LOW?
    goto    dd
    goto    aa          ;freq too low

dd  incf    count,1
      goto  bb

Main1   bcf   PIE1,0          ;,0 0=disables TMR1 interrupt
      bcf     T1CON,0         ;disable timer1
      bsf     status,rp0    ;Bank 1
      bCf     INTCON,7    ;disable all unmasked interrupts
      bcf     INTCON,5    ;disables TMR0 interrupt
      bcf     status,rp0    ;bank 0
      swapf count,1
      rrf     count,1         ;
      rrf     count,1         ;only use top 2 bits
      movlw b'00000011'
      andwf count,1       ;max 4 beeps
      movf  count,1
      btfsc status,z      ;z flag will be SET if file is zero
      goto  Main

sss   bsf     status,rp0    ;Bank 1
      movlw b'00000100' ;Set GP4,5 output
      movwf TRISIO
      bcf     status,rp0    ;bank 0
      call  _250mS
      movlw 0FFh
      movwf beep
      bsf     GPIO,4
      bcf     GPIO,5
      call  _130uS
      bcf     GPIO,4
      bsf     GPIO,5
      call  _130uS
      decfsz    beep,1
      goto  $-7
      decfsz    count,1
      goto  $-12
      call  _250mS
      call  _250mS
      call  _250mS
      call  _250mS
      goto  Main



We have not produced the “Ultimate Key Finder” project. We have left some improvements for you to work on.
The detection software could be improved, the beep could be changed and the 1-minute alert could be lengthened. These are all things for you to try.
I don’t think you will be able to turn the project into voice recognition but you will certainly be able to produce different tones or even a set of notes to indicate when a whistle is detected.
It’s now up to you.

Whistle Parts List

Cost: au$10.00 plus postage
[Kits are available](mailto:colin@elechelp.com?Subject=Buying components for the Whistle Key Finder&Body=Please e-mail the cost of components for the Whistle Key Finder on prototype PC board by air mail to my country:****___**** and send details of how I can pay for it. My name is:____)

  • 1 - 4k7 SM resistor

  • 2 - 68k SM resistors

  • 2 - 2M2 SM resistors

  • 2 - 100n SM capacitors

  • 2 - BC 847 SM transistors (1F)

  • 1 - SPDT mini slide switch

  • 1 - 22mm piezo diaphragm

  • 1 - 20cm fine enamelled wire

  • 1 - 30cm - very fine solder

  • 1 - 8 pin IC socket

  • 5 - machine pins

  • 1 - PIC12F629 chip (with Whistle routine)

  • 1 - coin-cell holder

  • 3 - button cells

  • 1 - Prototype PC board
