Solar Tracker-1
Colin Mitchell
Colin Mitchell
July 10, 2010
Make sure to subscribe to our newsletter and be the first to know the news.

Table Of Contents

01
THE PLANETARY DRIVE
02
LIMIT SWITCHES
03
TRAVEL DISTANCE
04
THE H-BRIDGE
05
USING A 6v MOTOR
06
THE CIRCUIT
07
THE POWER SUPPLY
08
TESTING
09
THE "BOOST" CIRCUIT
10
PROGRAMMING A PIC CHIP
11
THE PROGRAM
12
CONSTRUCTION
13
GOING FURTHER
14
SOLAR TRACKER - PARTS LIST

A tracking project for your solar panel using a PIC12F629 chip and H-bridge

  • PIC Programmer MkV

  • Instruction Set for PIC12F629

  • PIC12F629 data (pdf)

  • BlankF629.asm

  • PIC12F629.inc See more projects using micros:

  • Pic A PIC Project

  • Notepad++ or VS Code

  • Library of Sub-routines “Cut and Paste”

  • Library of routines: A-E E-P P-Z
    To place an order, click: [Solar Tracker-1 kit](mailto:colin@elechelp.com?Subject=Buying Solar Tracker kit&Body=Please e-mail the cost of sending Solar Tracker Kit by air mail to my country:****___**** and send details of how I can pay for it. My name is:____)

This project will improve the output of your solar panel by about 40%. It uses a motor and gearbox from a 3.6v power screwdriver, however a number of different voltage motors can be used. The project has its own 6v power-supply made from five 1.2v NiCad cells and a charging circuit using a separate 3v to 6v solar panel to make the project self-sufficient and universal.
It has one advantage over many of the other designs. It can be connected to an existing solar panel that is hinged or has a pivot-point so it can move to align with the sun. You do not have to add any gear-wheel to the panel as it can be adapted to move the panel via a linkage. This is much easier to do than adding gears etc.

Here is just a few of the Power Screwdrivers available on the market. Remember, you do not need an expensive unit. The cheapest will be quite suitable, providing it is 3.6v or 4.8v or 6v.

Screwdriver 1
This screwdriver is not suitable. It runs on 2 AAA cells and will not have the torque we need

Screwdriver 2
This 2.4v model costs over $100. The voltage is too low as it will require a very high current

Screwdriver 3
This 6v models costs $20.00
It comes with 4 Alkaline cells but no charger

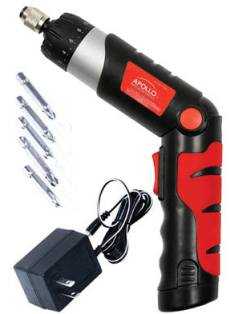

Screwdriver 4
This $25.00 4.8v model comes with charger

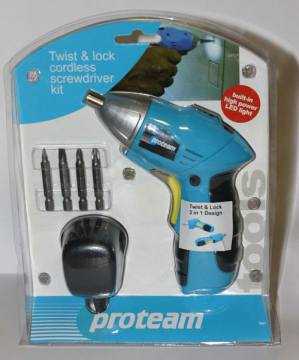

Screwdriver 5
Another $25.00 4.8v model with charger

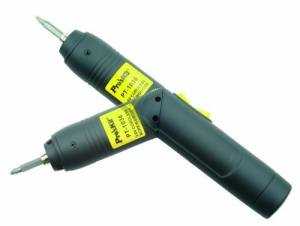

Screwdriver 6
This $18.00 3.6v model does not come with a charger

The 3.6v power screwdriver is available from a number of electronics shops, hardware suppliers and warehouses for between $10.00 and $20.00. You do not need a charger but you will need two more NiCad cells (from an electronics store at a cost of about $2.50 each).
Here is the cost of some of the other components: The threaded rod costs about $5.00 plus $4.00 for wing nuts. You will need Solar Tracker-1 kit $15.00 plus some wood to hold the motor and gearbox and about $15.00 for 6 solar cells to produce a 3v (100mA) solar panel. Alternatively you can get a 2v solar panel and 1 NiCad cell from a Solar Garden Light for $5.00. You will need two of these. The solar panels will need to be placed in series and connected to the booster-circuit on the Solar Tracker-1 PC board, to produce the voltage required to charge the NiCads.

You will need eight solar cells (100mA type) to produce a 4v solar panel or six solar cells (200mA type) to produce a 3v solar panel to maintain the charge in the NiCads

We have included a boost-converter circuit to take the voltage from a 3v to 6v solar panel, so it will charge five NiCad cells. Normally a 6v solar panel will not do this as you need a small “headroom voltage” to delver a current to the cells. This means you need a solar panel with an output of at least 8v to charge the cells and this voltage is generally only available when the panel is receiving very bright sunlight. Our design will allow a panel with an an output as low as 3v to charge the 6v set of NiCad cells. We need a charging current of only about 30mA to replace the energy taken from the cells during normal operation so almost any small solar panel can be used. But if you are using a 6v motor, the requirements will increase to abut 100mA
We have suggested using NiCad cells because they are cheap and you will possibly have some lying around your workshop. We do not need high-capacity cells as they are constantly being charged and we only need them to convert a low-current device (the solar panel) into a high-current supply.
The motor from a 3.6v electric screwdriver is ideal, as it is cheap, comes with an inline planetary gearbox and 3 NiCad cells. You only have to find two more cells and this part of the project is ready.
If you want to use a 6v (or higher) motor, a few components will need to be changed. The supply will need to be 8v (or higher) and a 78L05 voltage regulator will be needed to supply 5v for the micro. The two LEDs will need to be replaced with 4 LEDs (or more) as shown in the modified circuit. The LEDs operate as a zener diode when the supply voltage is higher than 5v as the output of the chip is clamped at 5v via the components in the chip and the voltage on the base of the BC557 must not be lower than 0.6v (with reference to the supply rail), otherwise the transistor will not turn off. The LED also shows when one of the arms of the H-bridge is operating and this arm will also turn on the diagonally opposite arm.

THE PLANETARY DRIVE

The output from the planetary drive is approx 100 to 200RPM and although it has considerable torque, it cannot be used to directly control a solar panel. The RPM is too high and if connected to the panel, the panel can easily turn the motor “in reverse” if there is a wind. This may not be a problem, but it doesn’t provide an ideal set-up.
Further reduction is required. The best idea is to fit a threaded rod to the hex output of the power-screwdriver and place two nuts on the rod at a short distance apart so the rotary motion can be turned into linear travel. This travel can turn the solar panel 90 degrees or more to pick up the peak output of the sun, via an arm called a linkage or by a pin or finger on the actuator.
These two nuts will run up and down the rod when the rod is turned and they are held in place so the linear motion provides movement without jamming - if you use a single nut, it will try to bend-over on the rod when a load is applied - and this will stop the motor.
A simple bearing will hold the end of the threaded rod and the slide containing the nuts will provide “purchase” to prevent the rod bending and transfer the linear motion to an arm or bracket to move the solar panel.
This arrangement will prevent any wind pressure from the panel causing the motor to drive in reverse via the gearbox.
Alternatively you can use a Meccano worm drive but you will have to mount the worm and gear wheel using shafts and these components will cost more than $20.00 from a supplier. They are also much weaker than our suggestion.

LIMIT SWITCHES

“Limit of travel” must be detected at each end to prevent the “linear actuator” reaching the end and damaging the project.
The motor, gearbox and nut arrangement has so much torque that it will tear the assembly apart if allowed to travel too far at either end.
A simple method is to place a limit switch at each end to detect this travel but a switch is very unreliable when exposed to outside weather.
We have designed a very clever method to detect the end of travel. It consists of a metal object (such as a nut) attached to the shaft so that its rotation can be detected by an inductor that is oscillating at a fairly high frequency. The inductor is part of an oscillator in which the frequency is known by the micro. When a metal object comes close to the inductor, the frequency is lowered and this is detected by the program.
This arrangement has no moving parts and is very reliable.
But we need to detect two things. The limit of travel in two directions.
You can place an inductor at both ends of the travel but we have improved on this by using just a single inductor and counting the number of turns of the threaded rod.
To make sure we detect the nut correctly, we stop the motor just after a detection. This means the nut will never stop in front of the inductor and create a false reading.

TRAVEL DISTANCE

The TRAVEL DISTANCE is the distance the set of two nuts is allowed to travel via the program in the microcontroller.
We have set this at 250 revolutions. This will produce travel of about 35cm and depending on where the output of the actuator is connected to the solar panel, it will provide rotation of 90 degrees or more.

THE H-BRIDGE

The output of the circuit drives the motor via an H-Bridge. It is called an H-Bridge because it looks like the letter “H.”
We have designed a very unusual arrangement of NPN Darlington transistors and it is very successful. The current consumption of the bridge when not driving the motor is ZERO and the voltage-drop across the bridge is acceptable, for the current it it delivering.
We have used Darlington transistors as we need a very high current to start the motor (called the stalled current or starting current) and since we have a maximum of 20mA from the chip, we need a very high gain to get 4 amps through the bridge for the starting-current.
At 4 amps, the collector-emitter voltage-drop for a BD679 is 1.1v but if 4 amps is divided between two transistors, the voltage-drop is 0.9v. We need as much voltage as possible to provide the motor with starting and running torque and that’s why we have used the output transistors in pairs.
Each pair of transistors will need heatsinking and the 4 heat sinks must not touch each other as the collectors are all AT DIFFERENT POTENTIALS at different times.
The running current is about 2.5amp for the motor we have used but this will depend on the motor you use.
The circuit will allow currents of 4-6amp for short periods and this will depend on the size of the heatsinks (as the limiting factor) as the transistors will get very hot with small heatsinks.
Only 1 drive line is needed for forward and 1 for reverse. The lower transistor is turned on via the chip and the diagonally-opposite upper transistor(s) is tuned on via a resistor and LED to provide a path for the forward or reverse direction.

USING A 6v MOTOR

A 6v motor can be used but the supply will have to be increased to 8v (6 NiCad cells = 7.2v 7 NiCad cells = 8.4v) and you will need to add the 78L05 voltage regulator to deliver 5v to the microcontroller.
A 78L05 consumes 6mA and the micro takes less than 1mA when “sitting around” doing nothing, and this current must be taken into account when charging the NiCad cells. If the sun shines 6 hours per day, this equates to 24mA + 4mA during charging-time, just to maintain the charge in the cells for this requirement.
You will need eight solar cells (100mA type) to produce a 4v solar panel or six solar cells (200mA type) to produce a 3v solar panel to maintain the charge in the NiCads, taking all the variables into account and the energy required by the motor. The solar panel will then connect to the “booster circuit” to produce the voltage required to charge the NiCads.

THE CIRCUIT

Most of the operation of the circuit has already been covered. The only thing that cannot be described is the actual voltage drop across the output transistors due to the type of motor you will be using.
BD679 transistors have a collector current of 4 amp and are very low cost. That is why we have used them.
To fully saturate the BD679, we need to deliver the full capability of the micro (20mA) to the base. This will turn it on fully and reduce the collector-emitter voltage to the lowest possible. Remember, the 20mA from the micro is being divided between two transistors, so that each is getting only 10mA to turn it on.
Theoretically the transistor should saturate with a base current of only 1mA, but even at 5mA, the transistor is not turned on fully and will heat-up due to the higher collector-emitter voltage.

The output pulses to the motor are not PWM (Pulse Width Modulation) but consist of a short pulse that is long enough to start the motor turning and produce three revolutions of the output-shaft.
During this time the signal from the LEDs detecting the sun’s brightness are monitored to see if they both produce an equal output. When this occurs, the signal from the rotating nut on the rod is detected and the motor is stopped immediately - if not, the motor is turned for three more revolutions. A time-delay of 5 minutes is then executed and the process is repeated.
Stopping the nut (the shaft) in a known angular position prevents false detection of the rotation of the threaded rod. This is to keep track of the position of the actuator.
The actual position of the actuator is not known.
It is assumed to be in a particular position due to the setting-up procedure. When the chip is programmed, a starting value of 50 is placed in EEPROM. This represents 50 turns of the threaded rod - away from the motor. You must now add another 20 turns so the actuator will never come closer than 20 turns to the motor.
This gives you a margin of clearance.
The program will take the actuator another 200 turns (threads) away from the motor-end and obviously the second nut on the actuator will be a further 70 threads away.
This will use almost all the 600mm threaded rod and leave a safety margin at each end.

THE POWER SUPPLY

To keep the “line losses” as low as possible, the NiCad cells must be close to the motor and the wiring must be thick hook-up wire (flex). The solar panel can be remote because the current is only very small and the length of the wiring is not important.

TESTING

We are dealing with a NiCad power supply that can deliver a high current and the transistors will “go up in smoke” if a short-circuit is present. To avoid this when setting up and testing the project for the first time, use ordinary carbon-zinc cells.
Solder the components on the PC board for the sections you will be using but do not fit the chip.
Connect the power supply and the motor and get a jumper lead. Connect the jumper lead to the positive rail and very briefly touch the other end on one of the 220R resistors that connect to pin 6 or 7 of the chip.
One of the LEDs will illuminate and the motor will turn in the clockwise direction. The other resistor will make the motor turn in an anti-clockwise direction.
Make sure your supply will actually turn the motor by connecting the motor to the battery.
If the bridge does not drive the motor, either one of the opposite-pair of transistors is faulty or both have a fault.
If the LED illuminates, the lower transistor is turning on and the fault will be in the upper Darlington transistor or the PNP driver.
Keep the jumper connected and use another jumper to connect the positive rail to the base of the upper Darlington transistor. This will bring it up to the positive rail as it is an emitter-follower. If this does not work, you know where to look.
You have now tested all the components in the forward drive section of the H-bridge. The other legs are the same. When it works, you can use the NiCad cells. Use a jumper to test the motor for 10 seconds by connecting it to one of the 220R resistors. The heatsinks should not get very hot.

THE “BOOST” CIRCUIT

The “Boost Circuit” is actually a fly-back arrangement using an inductor to produce a high voltage. It produces spikes as high as 30v (no load) but these are reduce to the battery voltage and are absorbed by the NiCads as energy and get charged.
This circuit will produce a charging current on a cloudy day and as the sun increases in brightness, the current will increase.
You will need eight solar cells (100mA type) or six solar cells (200mA type).

You can change the wording and add more features. To do this you need a programmer and software. For details on this, see Pick A PIC Project.

PROGRAMMING A PIC CHIP

This project is also designed to show how to program a very small 8 pin PIC chip.
It is part of a course on “PROGRAMMING PIC CHIPS.”
Each project adds another area to the “design library” and this project shows how to interface three more devices. These are:

  1. Input sensors,
  2. Driving an oscillator and detecting its change in frequency, and
  3. Driving an output.

The chip used for this project is an 8-pin PIC12F629. Two lines are used for the motor, two for detecting the sun and one for the position of the actuator, via an oscillator feeding an inductor.

If you want to change or improve the program, use our technique of copy-and-paste where you change only a few instructions at a time.

This project offers areas for experimentation. It shows how interface external devices to a microcontroller

THE PROGRAM

Each l

To change any of the content of the program you will need a programmer and the software that drives the programmer as well as an assembler (MPASM) .
All these things are covered in an article: Pick A PIC Project.

CONSTRUCTION

A full kit of components for Solar Tracker-1 is available from [Talking Electronics](mailto:colin@elechelp.com?Subject=Buying Sky Writer kit&Body=Please e-mail the cost of sending Sky Writer Kit by air mail to my country:****___**** and send details of how I can pay for it. My name is:____). It contains a pre-programmed chip and the parts shown in the parts list.
Some of the parts will not be needed for the 6v version but we have included everything so you can create any version of the project.
Before starting assembly, you need to work out which parts of the circuit you will be using and which links to add to by-pass the circuit that is not required.

GOING FURTHER

This project is just one idea for a range of cards that are “different from the rest.” The card market is enormous and when you realise most cards are poorly designed, you have a goldmine of potential.
Other ideas are a combination-lock game, a counter, a ladder game, and similar things that would make buying a card a rewarding decision.
Cards are just one area. The market is enormous and include toys and gimmicks combined with sweets.
The PIC micro gets an idea “off the ground” and you can get your ideas into production very easily.
It’s the starting point you have always wanted.

SOLAR TRACKER - PARTS LIST
