Continuity Tester Kit - PARTS LIST

Essential for servicing surface mount projects

2 levels of sensitivity. It squeals, so you don’t have to look

A kit is available from Talking Electronics for $2.50 plus postage.
It is best to buy other kits at the same time to save postage
Click [HERE](mailto:colin@elechelp.com?Subject=Buying Continuity Tester Slimline&Body=Please%20e-mail%20the%20cost%20of%20Buying Continuity Tester Slimline kit plus postage by air mail to my country:****___****%20%20and%20send%20details%20of%20how%20I%20can%20pay%20for%20it.%20My%20name%20is:____) to buy kit.

This design is cheaper, simpler and smaller than our other CONTINUITY TESTERS.
A Continuity Tester is essential for testing digital work and when it comes to surface-mount projects, you need a tester that beeps and has very fine probes.
The clever design of the circuit needs no switch and it has two levels of sensitivity.
One probe only squeals when the resistance is very low. Anything above 300 ohms does not produce a sound.
This is called the SHORT CIRCUIT detector. It detects continuity of tracks and wiring.
The other probe allows resistances up to 40k to be detected and as the resistance increases, the sound from the buzzer decreases.
This lets you detect a resistance between two points.
When you are dealing with a surface mount project, you cannot take your eyes off the probe tips as you might short between two components or slip off the part you are testing. That’s why you need a buzzer.

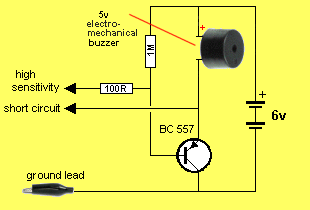

Continuity Tester Slimline Circuit


The project uses 4 components and 2 watch cells.The Short-Circuit probe simply connects the mechanical buzzer to the 3v supply. The buzzer will allow a small resistance and this will change the volume of the output.
The High Sensitivity probe includes the gain of the transistor to allow resistances up to a few kilo ohms to be included in the circuit and this will allow diode and transistor junctions as well as FET junctions to be detected for shorts and leaks.

The buzzer is an electronic buzzer and has no moving parts or contacts.
There are two separate coils inside the sealed unit and when power is connected, a transistor is turned ON via a fairly high value resistor and about 10mA flows through one of the coils to pull the diaphragm closer to the coil. The coil has a metal rod down the middle (called the core) and the diaphragm has a magnet in the centre of the disc.
The magnetic flux from the main coil also cuts the turns of the second coil and and it produces voltage and current that is passed to the base of the transistor to turn it on harder.
The action is called regenerative action and occurs very quickly and soon the transistor is turn on almost fully. This pulls the diaphragm closer to the coil and the magnet on the centre of the diaphragm adds to the current into the base to turn the transistor on more.
The magnet is now close to the coil. It touches the coil and makes a nose. But it cannot get any closer and thus the spike produced in the coil by the magnet, ceases.
This causes the transistor turn turn OFF very slightly and the current in the main coil reduces. This causes the magnetic flux to reduce and the voltage and current in the coil connected to the base also reduces. This causes the diaphragm to move away from the coil and the magnet produces a voltage and current in the second coil that is in the opposite direction and it has the effect of turning the transistor OFF almost completely.
Finally, the effect of the magnet moving away from the coil has less effect on turning the transistor OFF and the resistor on the base starts to turn the transistor ON to repeat the cycle.
The secret is the magnet on the diaphragm.
The buzzer is called MECHANICAL BUZZER and will operate on 2v-3v and up to 12v.


The first thing you have to do with an unknown project is test the trackwork. This consists of testing all the tracks for continuity and all the pins for “shorts.”
A multimeter can be used but it takes much longer to do the same job. And you have to keep looking at the needle.

The two probes can be parallel or at a slight angle so you know which probe your are using.
No “ON-OFF” switch is needed as the circuit is designed to take zero current when not used.

Our CONTINUITY TESTER gives an audible indication of continuity between the probes so you can keep your eyes on the probe tip. Secondly its response-time is very short so that you can make lots of tests very quickly while listening for the beep.

The negative lead of the Continuity Tester is placed on the first pin of the chip and you quickly wipe the probe down the other pins on the same side then the 12 pins on the other side. The only time you will hear a beep is if a short is present or if the two probes touch.
When you hear a beep, you should examine the track-work carefully to see if a fault is present or if the pins are joined by a track, or some other component.
Continue this procedure with pins 2, 3, 4 etc. until all the possible combinations have been covered.
This is repeated with all the chips in the project and any other connections you can find on the board. This is the only way to locate a hidden short and even though it involves thousands of tests, it will be much quicker than using a multimeter.


All the components are mounted on a small, slim, PC board.
Start assembly at one end of the board and fit each component as you come to it. The transistor must be fitted around the correct way and the holes on the board will assist you. If you are not sure, refer to the photo above.
The probe tip is made from long machine pins and soldered to the top of the board.

The wander lead can have either an alligator clip, E-Z clip attached to it.
When everything has been soldered in place, touch the two probes together and the buzzer will emit a squeal.
We have used it many times for microcontroller projects sent to us for repair. It has found cracks and dry joints the eye missed.
We keep it on the workbench and I am sure you will find it invaluable too.

Continuity Tester Kit - PARTS LIST

Kit: $2.50 plus postage.
Click [HERE](mailto:colin@elechelp.com?Subject=Buying Continuity Tester Slimline&Body=Please%20e-mail%20the%20cost%20of%20Buying Continuity Tester Slimline kit plus postage by air mail to my country:****___****%20%20and%20send%20details%20of%20how%20I%20can%20pay%20for%20it.%20My%20name%20is:____) to buy kit.

  • 1 - 1k

  • 1 - 1M

  • 1 - BC 557 transistor

  • 1 - Mechanical Buzzer

  • 2 - lithium cells 2016

  • 1 - lithium Cell Holder

  • 2 - probes (long machine pins) and 2 short pins

  • 1 - 30cm hook-up flex

  • 1 - ezy clip or alligator clip

  • 1 - 15cm fine solder
