Biasing Resistors

The next discussion is not a mistake but an item that needs careful attention.
A range of surface-mount transistors are appearing on the market with in-built biasing resistors.
While this may sound like a good idea, it presents a lot of problems.
Biasing a transistor is a very critical factor and depends on the current to be delivered by the transistor and the quiescent current you want the circuit to take.
The bias-value can range from a few “k” to more than “1M.”
You don’t want to be “dictated to” by a supplier of components. The range of values offered by the supplier in this case is very limited.
But the major problem with using transistors with built-in bias resistors is the cost.
Surface-mount devices are only available on reels of 3,000 and if the wrong value is chosen or you need to change a particular value, a reel is wasted.
The wonderful part of electronics is its universality.
Electronics is made up of interchangeable components that are common throughout the world
and that’s why it has flourished and expanded.
We have already made electronics universal, so let’s not ruin the concept by individualizing basic components.
When designing a project, make a point of not using specialised components, unless absolutely necessary. It will only back-fire in the long run.
Your products will be harder to service and less-likely to be recommended.

The resistors have values 1k, 10k and 47k:

When testing a transistor with in-built resistors, you will get a “false” reading when measuring across the leads of the transistor as the resistor will change the value. This is a feature you need to be aware of.

Stop Resistor

A 555 circuit posted on an “electronics forum” had the following mistake:

The 200k will damage the discharge transistor inside the chip when it is turned to zero ohms.
The circuit needs a “stop resistor” as shown in the diagram below:


Use a “stop resistor”

A ”Stop Resistor” prevents the resistance of a potentiometer going to zero ohms. In some cases a very low resistance will cause a high current to flow and damage either the potentiometer and/or other circuit components. You must always check this when fitting a “pot.”

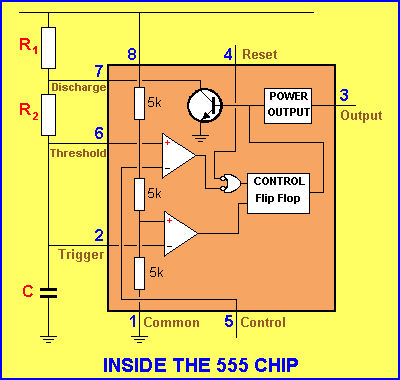

The diagram below shows the internal structure of a 555. Pin 7 is connected to the collector of a transistor and must not be connected directly to the positive rail. If the collector of the transistor is connected to the positive rail, it will conduct a very high current when it is turned on. It is turned on every time the output pin (pin 3) is taken HIGH.
To learn about the 555, see our 3-page article on the CD, Page 1 Page 2 Page 3 or Page 1 in our Projects section.
On the CD, see the TEST on the 555. On the website the TEST is HERE.
This 555 article is the most comprehensive you will find. It includes a program to show the frequency of oscillation for any value of resistance and capacitance and the HIGH and LOW times.

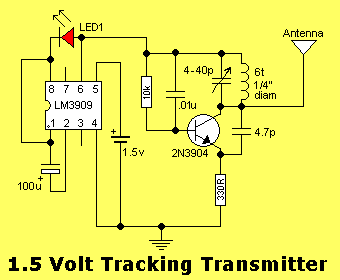

Tracking Transmitter

The next discussion comes from the web.

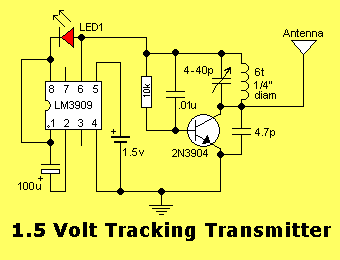

The circuit is very well designed but a small improvement can be made.

The emitter of the transistor should have a resistor so that the signal through the 4p7 will modify the voltage on the emitter and make the transistor oscillate.

If the resistor is omitted, the circuit may work due to the fact that the LM3909 flasher chip has a high impedance on its pins but the output will certainly be reduced.
The way the transistor gets its feedback to maintain oscillation, is as follows:
The PARALLEL TUNED CIRCUIT, made up of the variable 40p trimmer and coil creates a waveform and this is passed through the 4p7 to the emitter of the transistor. The base is held rigid by the 10n capacitor and the emitter “moves up and down.”
There are two ways to turn a transistor on.
One is to raise the voltage on the base, while keeping the emitter fixed and the other is to change the voltage-level on the emitter, while keeping the base fixed.
The 330R keeps the emitter away from “ground” so it can be injected with a signal (voltage) by the 4p7.
The LM 3909 is no longer manufactured and a substitute circuit is shown in our Flasher Circuits article.


LED FLASHERS

The next mistake is similar to one of the first items we discussed in this chapter.
It’s the mistake of allowing the junctions of transistors to be connected directly across the power supply. The following circuit contains the fault:


The faulty circuit

The collector-emitter junction of the PNP transistor and base-emitter junction of the NPN transistor are connected directly across the power supply.
When both transistors are turned ON (when the LED is illuminated) they form a voltage drop that can be as low as 0.2v for the collector-emitter junction and 0.7v for the base-emitter junction. This is lower than the 3v supply and will cause a very high current to flow.
The end result is about 80% of the current taken by the circuit flows though the junctions and only 20% through the LED! This circuit is very wasteful.
By adding a 100R resistor as shown below, the current drops to 10% of the original!
This is only a “proving-point.” It does not alter the fact that the circuit is of poor design.


The improved circuit

Both circuits have a number of defects:

  1. They will not operate on weak batteries.
  2. The bottom 47R represents a low value of resistance and indicates waste of energy. (The
    top 47R is needed as a current-limiting device for the LED and cannot be changed or omitted.)
    The circuit should be re-designed and the bottom 47R replaced with a higher value.

Here is the reply from the author of the original circuit:

The revised circuit has one mistake. It does not work!
The author says it works. But it did not work for me.
Who’s right? Obviously I am.
A circuit must work and must be reliable for almost any type of similar transistor. It must also be reliable for component values slightly different to those specified.
That’s the art of making a reliable circuit. It must work under a wide range of conditions.
Obviously this circuit is too fiddly.
The answer is to re-arrange the components:

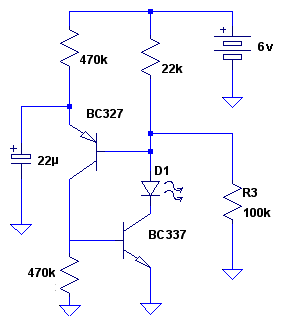

Here is another LED FLASHER circuit:

This circuit has a problem. It does not work when the voltage drops a small amount and will not work on 9v. It is very voltage-critical.
The flash-rate is very low @ 9sec per flash for 22u and 4 seconds per flash for 10u.
However it has one advantage. The current consumption is very low at 50 microamps.
The energy from the electrolytic is delivered to the LED to create a fairly bright flash and there are no losses in a load resistor for the LED.
The 100k and 22k resistors form a voltage-divider to set the point at which the circuit turns on.
The 22u must charge to a point that is 0.6v higher than the mid point of the voltage divider and this creates the timing for the flash as well as the brightness.
If you have a reliable supply voltage, this circuit is suitable. If you are trying to use the last of a 6v set of cells, this circuit will stop when the voltage reaches about 5v.
See our Flasher Circuits article for more circuits.


The next discussion is not a mistake but “how to go about it.”

A readers sent a request to identify a surface-mount component:

unknownpart

It is a 6-leaded surface-mount chip 1.13mm X .71mm with “D2” identification.
The letter “D” does not mean it is a diode and the 6 leads do not mean all the pins are used.
After searching through surface-mount identification lists, the reader was no further advanced. He spent more than 8 hours trying to find a answer.
At this point things become desperate.
You need to advance, so here’s my suggestion:
The next step is try and work out if the product is very new or not. This may mean the chip is a “new style” device containing transistors, resistors and diodes in a mini-circuit arrangement.
Next, you have to work out if it is faulty and if you want to risk removing it from the board.
Before you remove it, take a resistance reading across each of the pins in both directions. This will be a lot of readings so make a number of drawings and fill in the details.
To remove the chip you will need a surface-mount removal tool or a fine soldering iron, some fine solder, long-nose pliers and de-solder wick.
Start by soldering each pin with fresh solder. Only solder one pin at a time and wait for the chip to cool down.
This cleans up the joints and makes removal of the solder very quick and easy in the next step.
Use a hot iron and suck up the solder from one pin at a time with a new section of de-solder wick.
Continue with the other pins.
You will now need to put a very fine jewelers screwdriver under the end of the chip and exert a small amount of lifting pressure while running the hot soldering iron down one side of the chip. One side of the chip will then lift off the board. Grip the chip with fine pliers and run the soldering iron down the other side.
Measuring the chip with a multimeter will not tell you anything. You do now know what’s inside it. But measuring it will help in the next step.
Trace out the circuit surrounding the chip.
Sometimes the external components will help you work out what’s inside.
You can then solder components onto the lands and create the circuit as a “bird’s nest” to see if it works.
This may be a lot of work, but you have to do something.
If you go to our Chip Data eBook, you will find outline diagrams for many of the chips as well as the new “hybrid” chips and links to the web.
From this you will get some idea of what to expect inside the chip.
It’s just a matter of duplicating this and see if the circuit works.


UM 3561 4-Sound IC

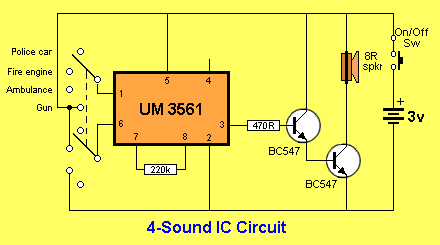

Now we have a mistake that has been covered before. See if you can find the problem:

The problem lies in the connection of the first transistor to the positive rail. As the voltage on pin 3 rises, the two transistors begin to turn on when the voltage on the base of the first transistor is 1.3v.
This voltage will not increase but as the voltage on pin 3 increases, the current through the 470R resistor will increase and the first transistor will allow at least 100 times this current to flow between the collector-emitter terminals and into the base of the second transistor.
Using Ohms Law, this comes to 3mA through the 470R resistor and up to 300mA into the base of the second transistor. This is clearly a waste of current and may damage the transistor.

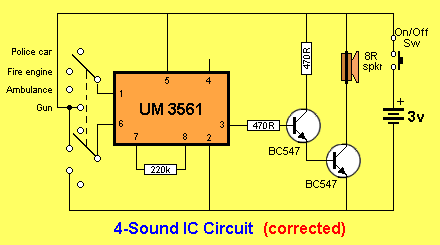

The solution is to add a current-limiting resistor in the collector of the first transistor as shown in the diagram below:

TURN-ON CIRCUIT

The next fault comes from the same circuit we covered above. It is the turn-on section.

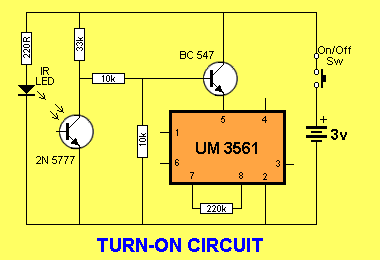

When the light-beam is broken, the infra-red receiver transistor has a high resistance and the turn-on transistor is pulled high via the 33k and top 10k resistors.
But there is a fault in the turn-on section. Can you spot it?

The chip will not see a “turn-on” voltage. The voltage-divider, made up of the 33k, 10k and bottom 10k resistors will put a voltage of 0.56v on the base of the BC 547 transistor. The voltage drop of 0.6v between the base and emitter will result in zero volts reaching the chip.
The lower 10k is causing the problem. It is not needed.
How do you work out the voltage that will appear on the base of the BC 547?
We firstly assume the two transistors are not putting any load on the circuit. In other words, they are high-impedance (not turned on) for this part of the discussion.

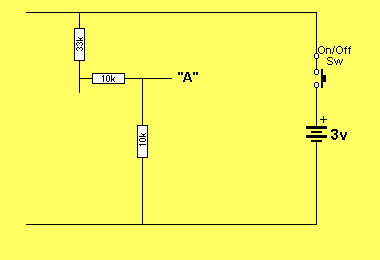

The circuit becomes as shown in the next diagram:

The total resistance of the network is: 33k + 10k + 10k = 53k
The voltage across the network is 3v.
The voltage across each 1k = 3/53 = 0.0566v
The voltage across the lower 10k = 0.566v
As we have mentioned above, the base-emitter voltage of the BC 547 will remove this voltage and the chip will see 0v.

The next point to note is purpose of the upper 10k.
It serves no purpose at all.

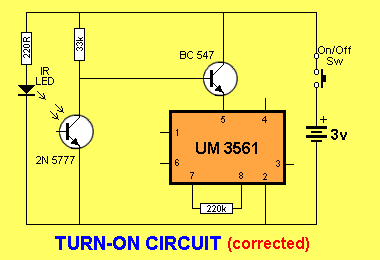

The corrected circuit is shown below:


The next item is not exactly a mistake, but an improvement to a layout.
Circuit diagrams should always be laid out so they give an immediate indication of how the circuit works.

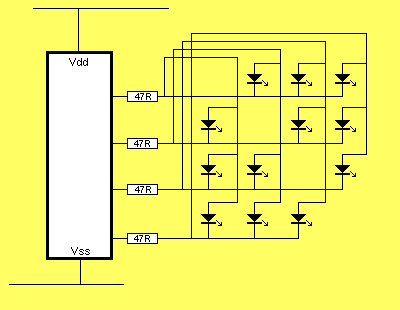

The following circuit looks very neat but it is more complex than it should be.
The LEDs are actually connected in opposite directions to the 4 drive-lines of a micro, but this is not obvious.

Here is the improved circuit diagram:

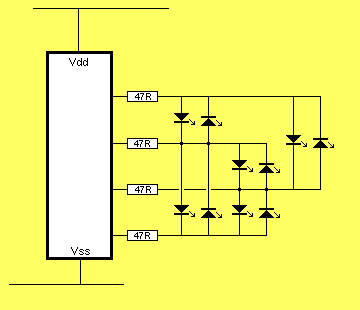

In the diagram above, it is obvious that the LEDs are in pairs, with one LED connected in the opposite direction to the other.
Each pair of LEDs is connected to two output lines so that by reversing the polarity of the lines, any LED can be individually accessed.
