Spot the Mistakes 26
Colin Mitchell
Colin Mitchell
April 20, 2016
Make sure to subscribe to our newsletter and be the first to know the news.

Table Of Contents

01
PLANT WATERER
02
AUTO BATTERY CHARGER
03
HUM
04
AMPLIFIER
05
IR DETECTOR
06
PHONE CHARGER
07
CRO PROBLEM
08
COUNTER
09
TRANSISTOR TESTER
10
HOME ALARM
11
OVER VOLTAGE CUT-OUT
12
HIGH WATER AND LOW WATER ALARM

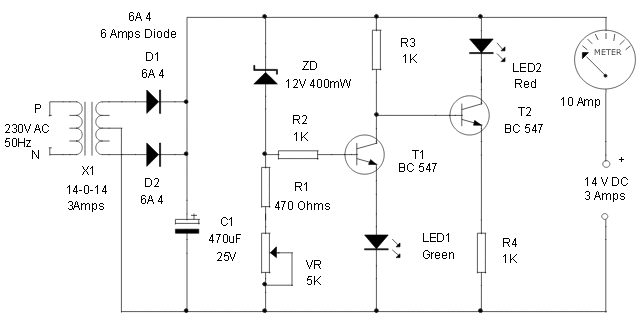

13
BATTERY CHARGER
14

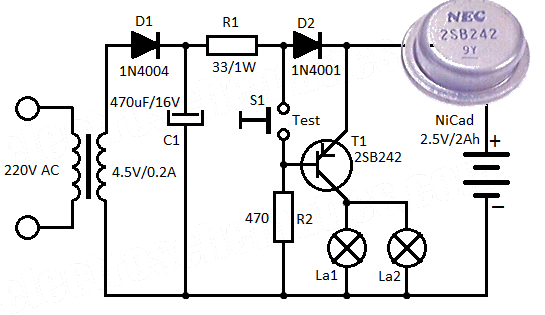

EMERGENCY LAMP

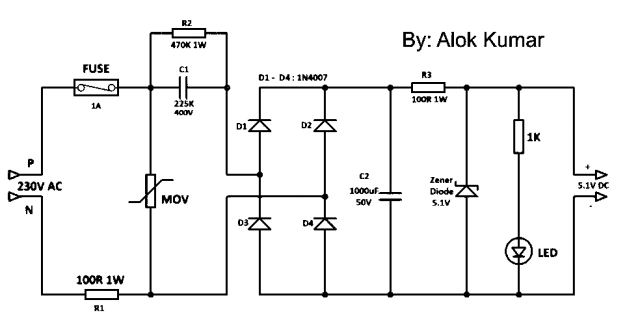

15
POWER SUPPLY

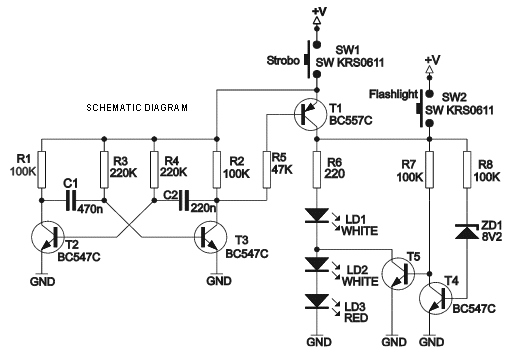

16
LED STROBE LIGHT
17
BATTERY CHARGER
18

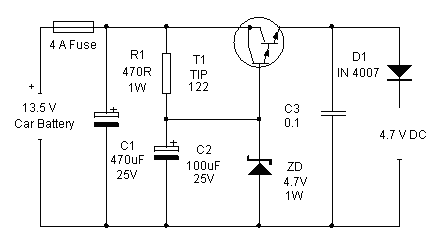

CAR ADAPTER
19
BATTERY CHARGER
20

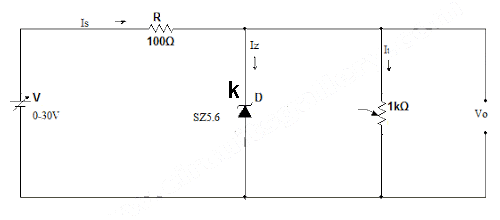

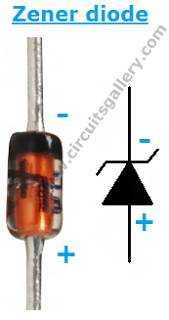

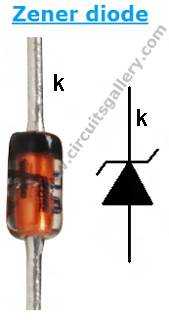

THE ZENER DIODE
21
98MHz OSCILLATOR
22

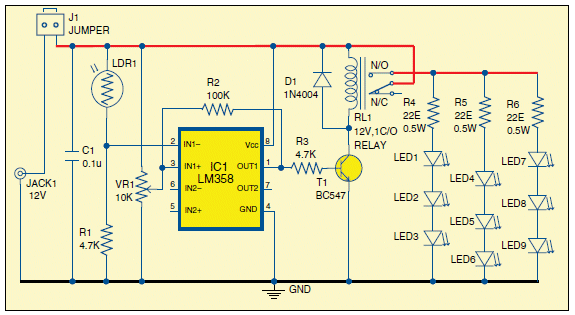

BACK LIGHT CONTROLLER
23
DOOR ALARM
24
BATTERY CHARGER
25
FUSIBLE RESISTOR
26

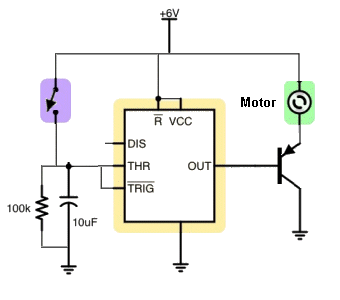

MOTOR CONTROL
27
SOLAR LIGHT
28
RGB Generator
29

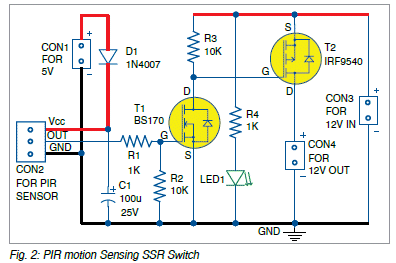

PIR MOTION SENSOR
30
FIRE SENSOR
31
+5v -5v SUPPLY
32
3v3 ZENER
33
CONTROLLER
34
METAL DETECTOR
35
VU METER
36
LED TORCH
37

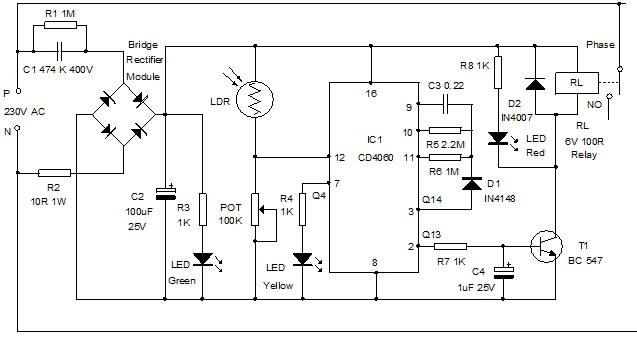

MOSQUITO REPELLER
38
30 AMP POWER SUPPLY
39
SERIAL REGULATOR
40
NO PRINTED CIRCUIT BOARDS
41
MAGNETIC GENERATOR
42

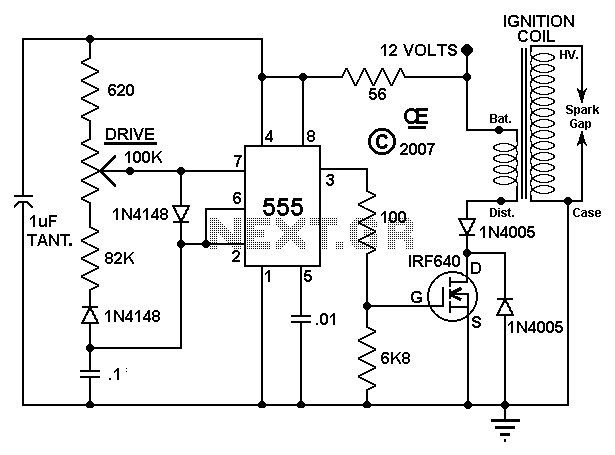

DRIVER CIRCUIT
43

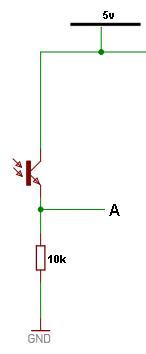

PHOTO TRANSISTOR
44
IMPROVED CIRCUIT
45

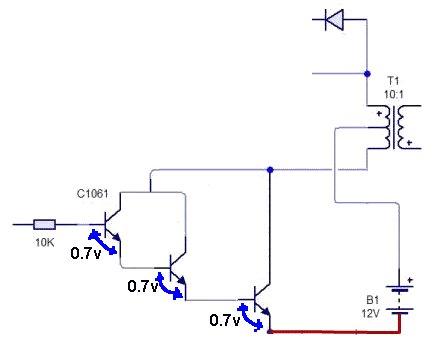

PUSH-PULL
46
PCB PATTERN
47
3-TERMINAL REGULATORS

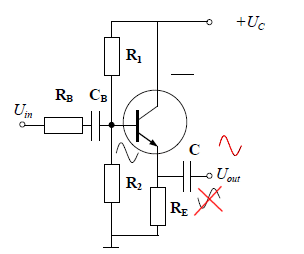

48
EMITTER-FOLLOWER
49
DIODE CLIPPER
50

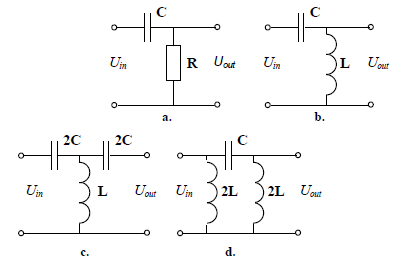

FILTER

There is only one thing I regret with Talking Electronics website.
It should have been in the form of an encyclopaedia.
I have produced so may “pearls of wisdom” and answers to circuit problems that the website is one of the largest on the net.
And it is different to any other website or text book.
It answers all those questions left unanswered after a lecture or after reading a text book.
So may times I have read a text book and said ” I don’t know what he is trying to say!”
Everything could be made clearer by including two or three circuits or photo’s. But in many cases the author has never built the circuit and tested it.
The biggest mistake a beginner can make is thinking a text book will answer his questions, solve his problems or teach him electronics, or a course will enable him to become a technician.
A current Masters of Electronics course in Australia runs for 4 years and in the first three years the students have done little or no soldering, and only worked on a very poorly produced PC board for an AM radio.
Their final project is to produce a robot that finds and picks up pucks.
I don’t know how many pre-made modules are allowed or if a whole Robot can be bought off-the-shelf, but how is a student going to design and produce a robot with steering, detecting a puck, picking it up, two-way remote control, camera-detection and programming a microcontroller, in 6 months.
No-one with less than 2 years ROBOT ENGINEERING and hundreds of projects under his belt, could come up with a project like this.
It just shows the absurdities of University teaching.
They think you can come out of the course with all the capability of designing a robot for the Moon Lander, after a single project; while in reality the student can barely desolder a 40 pin IC.


After helping 4 electronics forums for the past 3 years, I can say the actual basic understanding of electronics of those who have been in the industry for up to 40 years, is quite lacking.
Yes, many of them have carried out research, repaired thousands of pieces of equipment or worked in electronics at the hobbyist level, but some of the replies and answers to readers questions contain fundamental, glaring, errors.
I don’t know everything about electronics but I have certainly covered a lot of the basics and explained things that have never been covered before.
And it’s only when you cover a circuit in minute detail that you can explain its operation.
It’s only when you can “SEE A CIRCUIT WORKING” that electronics comes alive and you can actually work on the circuit to improve its performance or alter its characteristics.
The next stage in the development of the web will be to produce interactive discussions with circuits that “move” and show the capacitor charging and the transistors turning ON and the IC’s carrying out a function.
This can come with short videos showing the circuit working and include the sound.
Some of the simulation software already shows “electrons” moving around the circuit but none actually show the resistor limiting the current or the capacitor charging or the transistor turning ON.


The one thing I liked about Radio Shack (Tandy) was the “Lifetime Guarantee” they provided for their products.
I don’t know what a Lifetime Guarantee means but the concept infers that any problem will be addressed and fixed.
The stores were a very poor example of an electronics component supplier and they lurched from one decade to the other with a few successful products such as stereo amplifiers, CB radios, loud hailers, 200 electronics experiments kits, Gold Detectors, computers and then everything died.
But the concept of a guarantee still stays in my head and for anyone who has bought a kit from Talking Electronics and not been able to get it to work, the policy exists to be able to send it in for checking and repair at no cost.
Some readers have bought $200 worth of kits and are not heard-of again. To get all the kits working will require a lot of skill and since many were beginners, they should have contacts us for assistance.
It’s no good giving up and letting anything rest as you only begin to learn electronics when you have found and fixed a fault.
I have fixed over 26,000 black and white TV’s and if I gave up after a few minutes, almost none of the sets would have been fixed.
Sometime it takes hours to locate a fault and something it is just replacing a cracked valve.
But dogged determination is the only attribute you need to see your way through a design … to eventual completion.
It would be wonderful if everything was easy and straight-forward.
But that means the product and idea would already be on the market.
New ideas take skills that have not yet been tested and and since everyone’s brain has an endless capacity for invention, new ideas and products will come on the market all the time.
It’s just your aim to make that new product … yours !!


PLANT WATERER

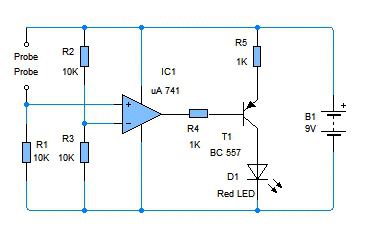

Another circuit from Professor Mohankumar. The probes are placed in the soil of an indoor pot-plant and the LED comes ON when the soil dries out.

The circuit above is the original design. It works but it is very complex and the op-amp takes current all the time.

The circuit can be simplified to two transistors and 3 resistors. It takes less than 9 microamps when “sitting around.”
When ever you design a circuit, look on the web to see how it has already been designed and ask yourself if any of the components can removed and if the circuit can be simplified.


Spot the Mistakes pages allows me to talk about things that can’t be added to any of the other sections.
No text book and NO project in a magazine has ever included a section “If it doesn’t Work” Everyone expect a project to work for EVERYONE.
And how wrong they are.
There are so many variables to making a circuit.
Many projects are just on the verge of not working and by using a different transistor or a different component or even a different layout, the circuit fails to work.
I have already given examples of poorly deigned multivibrator circuits that I could not get to operate and others that stopped working as soon as the voltage dropped a few volts.
That’s why I consider these pages one of the most important additions to the website.
You can learn 10 times faster from other people’s mistakes than dragging yourself through the theory of the circuit.
I have proved this with 2 apprentices who came “off the street” and were fixing black and white TV’s after 2 - 4 weeks of watching what to do.
Of course you can go the “theoretical route” but this route will have much more significance if you have already experimented with the circuits and seen what effect is produced when components are changed.
And you have a much better “grass roots” understanding.


AUTO BATTERY CHARGER

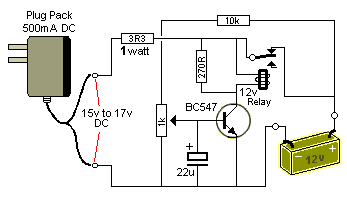

This is not a faulty circuit but the simplest Automatic Battery Charger circuit you can get.
It is so simple, that no one believes it will work.
It is mainly designed to keep a battery topped up in a car, motorcycle, snow-plough, etc stored in a garage for a number of months.
A battery loses energy at the rate of 10mA to 100mA, depending on the battery and the temperature and the age of the battery and you need to keep adding this energy to keep it charged.
This circuit will not overcharge the battery because the charging current is less than 500mA and the current is turned off when the battery voltage reaches 13.7v.
Read the full article: Automatic Battery Charger and you will see how the circuit works. It is quite complex.


HUM

Hum is the background noise you hear in an amplifier when the volume is turned down.
It comes from the power supply where the diodes charge a set of electrolytics from the alternating current (AC) from the “Mains.” The Mains is called the “AC.”
If the Mains has a frequency of 50Hz, the power supply produces 100Hz hum and if it is 60Hz, the frequency is 120Hz. This is because the bridge delivers the waveform from the 0v axis to the peak of the waveform to the output and at the same time it inverts the wave (from the 0v axis to the negative peak) and places it between each of the positive portions of the wave and this effectively doubles the frequency.

Hum is the ripple at the top of the voltage coming from the power supply:

Suppose the hum is the voltage between 13v and 15v. If we use the voltage up to 13v, we will not get any hum.
Here are 3 circuits and we will explain how well they perform.


This circuit will deliver all the hum to the load. If the load is an amplifier, the background will hum.
It delivers the full voltage from the power supply, including the HUM component.


This circuit will deliver some of the hum to the load.
The voltage is delivered (including the hum component) and the hum component is reduced slightly by a process called SMOOTHING.
The output voltage is reduced by a process called ATTENUATION.
But the hum is not REMOVED.

The 10R and 2u2 will have a small effect on reducing the hum and the emitter will deliver the improved waveform to a 68R and 220u filter. But the voltage at the join of these two components will drop when a load is applied and this is not a good design for a power supply.

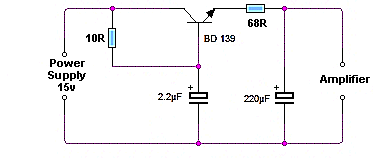

There are two faults with this circuit.
The transistor increases the effectiveness of the 2u2 by 100 times, so why not make the 2u2 larger.
if it is 220u, it will effectively be equal to 22,000u and provide very good hum reduction.
The 10R should be increased to 220R to improve the effectiveness of the 220R/220u combination.
The 68R will lower the output voltage and at 100mA current, the output will drop 6.8 volts !!
Obviously, this is not a very good circuit.

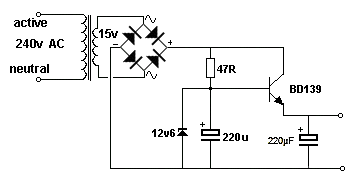

The third circuit combines the first two circuits and adds a zener diode to deliver only the voltage below the ripple. The voltage below the ripple is perfectly smooth.
The zener and 220u creates a very stable 12v6 and this is fed to the transistor. We could use this stable 12.6v and feed it directly to the load but as soon as we require more than 100mA, we will be taking all the current from the zener and the output voltage will drop.
At the moment the supply voltage is about 18v from the bridge rectifier, and this creates 5v across the 47R. The current through the 47R is about 100mA and this current flows through the zener.
This is the maximum current we can use and if we take say 120mA, the zener DROPS OUT OF REGULATION and the voltage across it drops to a lower value. So, we can NEVER take more than 100mA from the stabilization-section of the circuit - the zener diode.
The transistor has a gain of about 100 and theoretically we can take 100 times 100mA (=10Amp) but the power supply will not deliver this high current so with a current up to 1, 2 or 3 amps, the output voltage will be fully stable. (The bridge and transistor are 3 amp devices.)


The final circuit using a zener and transistor to provide a stable output voltage, with the hum removed.

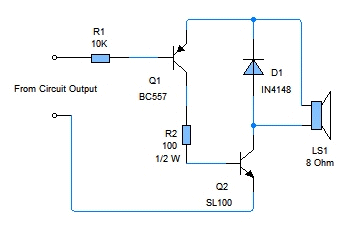

AMPLIFIER

Another useless circuit from Professor Mohankumar.

The circuit has no supply rail.

The diode does nothing and been removed. The supply rail has been added.
The circuit is absolutely USELESS.
The only time when the circuit acts as an amplifier is when the input voltage is between 8.2v and 8.4v.
At all other times the amplifier is turned OFF or fully saturated.
Where can you get a signal containing audio information between 8.2v and 8.4v ???
Another untried, untested, useless circuit from an Indian “Professor.”


IR DETECTOR

Another useless circuit from Professor Mohankumar.

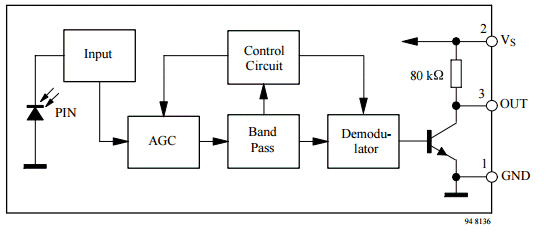

Look at the block diagram.
When the output transistor is OFF, pin 3 is HIGH and the BC557 transistor is not turned on. The LED does not illuminate.
When the output transistor is ON, the voltage on pin 3 is about 0.3v and the base of the BC557 transistor will be 0.3v above the 0v rail.
The emitter of the BC557 will be 1v above the 0v rail and the collector will be 0.8v above the 0v rail.
The LED will not be turned on.
The LED will NEVER be turned ON !!!
Another untried, untested, useless circuit from Professor Mohankumar.
Where does he get this rubbish from????

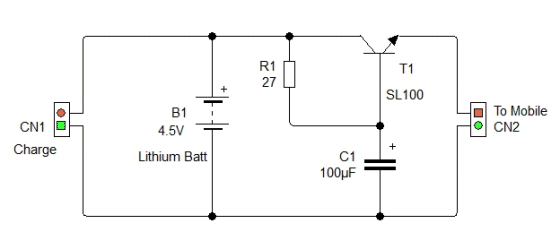

PHONE CHARGER

Another useless circuit from Professor Mohankumar.

I don’t know what this circuit is supposed to do but it will not work.
The output of the circuit is 3.8v as 0.7v is lost across the base-emitter junction of the transistor.
A mobile phone needs 5v because it has a protection circuit and also a current limiting (called the charging circuit) between the input and the battery.
The battery is 3.6v and if the input voltage is 3.8v, NO CHARGING WILL OCCUR.
This circuit simply WILL NOT WORK.


CRO PROBLEM

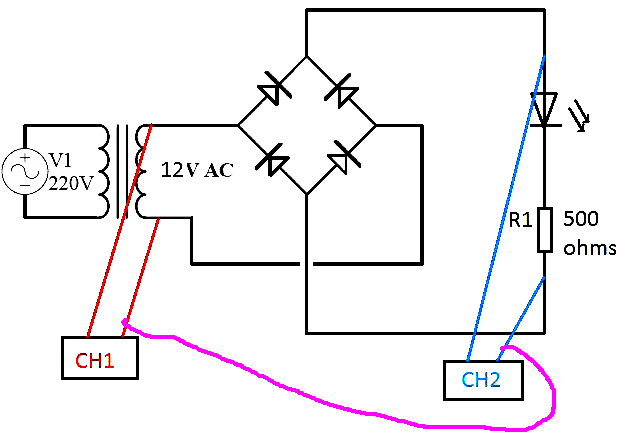

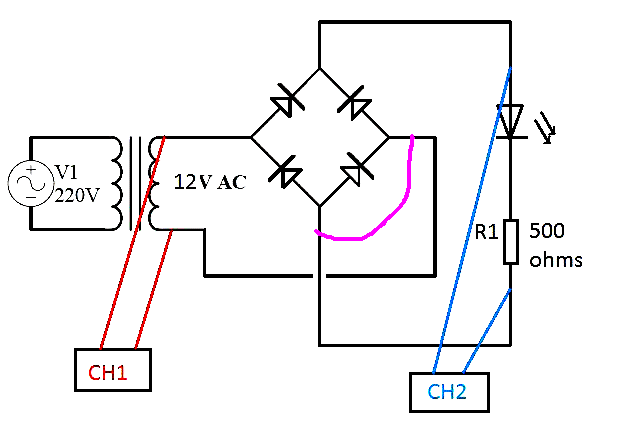

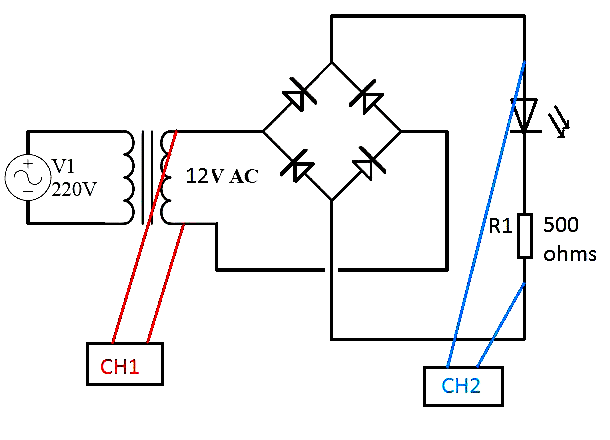

A reader is testing a power supply with a dual-trace CRO and placing the probes as shown:

When the power supply is turned ON, one of the diodes is damaged.

The earth lead on the probe for Channel 1 is connected to the earth lead on Channel 2 and the purple line on the diagram above shows this.

The diagram above shows the “short circuit” on the power supply due to the two probes.

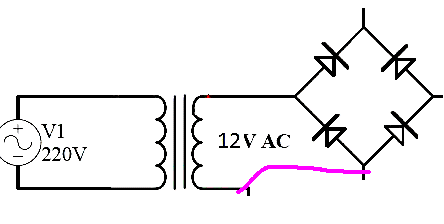

The diagram above shows the “short circuit” puts a singe diode across the incoming 12v AC and the diode presents a “short circuit” when the voltage is emerging in one direction and will be damaged. When the voltage is emerging in the other direction, the diode is reverse-biased and nothing happens, but when the voltage reverses again, a very heavy current flows.

This is just one of the dangers of connecting two probes to a circuit.
In the circuit above, the voltage emerging from the transformer is classified as “above earth” (this can also mean “below earth”) and means the voltage is not an “EARTH POINT.”
The other point is not strictly an EARTH POINT but we have made it an earth point by connecting the earth probe.
In all circuits and PC boards that have an “earth plane” or “ground plane,” this trace or track or plane is not necessarily “earth” as it may have no connection to the earth pipe of your house via any wiring.
But as soon as you connect the earth probe of a test probe to the track, it becomes EARTH via the CRO.
This is now your reference point for all other voltages.
This is very important to remember when you have hum problems with an amplifier, especially when you are designing an amplifier and connecting it to a power supply.


COUNTER

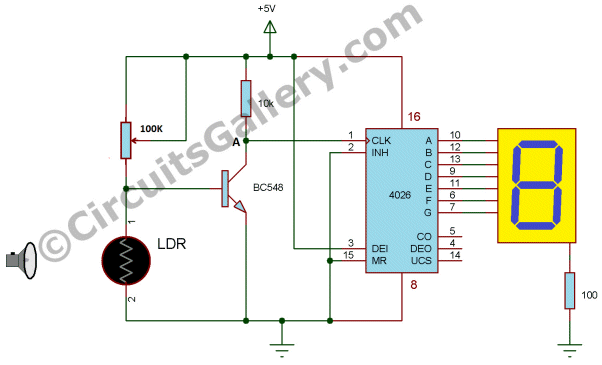

Here is a counter circuit with a number of mistakes.

If the 100k pot is turned fully clockwise, the pot and the transistor will blow up.
The circuit has no debounce and the count may increment by an unknown number if the LDR receives varying light intensity.
The display will dim on the figure 8 due to the 100R in the “common” line. As more segments are lit up, the voltage across the 100R increases and each segment will pass less current.


TRANSISTOR TESTER

Here is another INDIAN website for beginners. It is filled with mistakes:
http://www.circuitsgallery.com/2013/12/transistor-tester-circuit.html

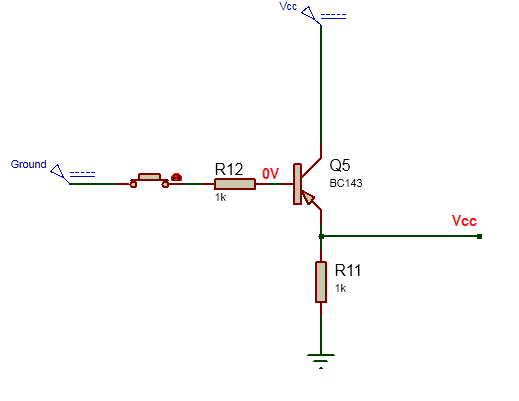

Look at this PNP circuit:

The transistor is connected AROUND THE WRONG WAY !!!!

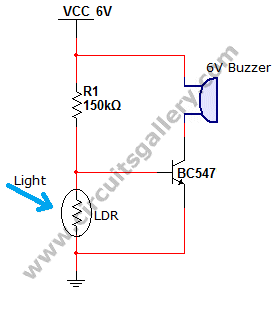

HOME ALARM

Here is another circuit from the INDIAN website:

The circuit contains a fundamental mistake.
The transistor effectively reduces 150k by a factor of 100 or 200 as this is the gain of the transistor.
The 150k becomes 1k5 or 750 ohms in series with the 6v buzzer.
This means the circuit will pass between 4mA and 8mA.
The buzzer will not be very loud.

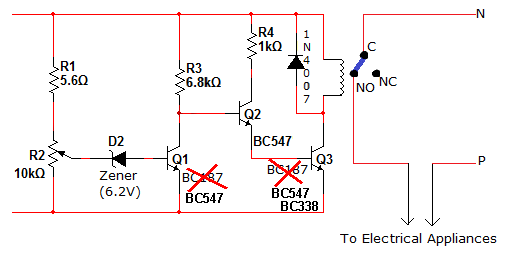

OVER VOLTAGE CUT-OUT

Here is another circuit from the same INDIAN website:

The 6v2 zener is not needed. Here’s why:
The circuit is detecting the voltage on the power rail and when it rises too much, Q1 is turned ON and Q2, Q3 are turned OFF.
The rise in voltage on the power rail is passed to the base of the first transistor via a voltage divider made up of R1 and R2 and through a 6v2 zener.
The pick-off voltage from the 10k will be about mid-rail voltage and this means for every 2mV rise in the supply voltage, the pick-off voltage will rise 1mV.
The voltage drop across the zener is not fixed. When the current is very small the voltage across the zener is less than 6v2 but it an unknown value and it will rise slightly as the current increases.
This means it will take a few mV rise on the power rail for each mV increase on the base.
If we remove the zener, the pick-off voltage will be about 0.7v and this means it will take about 20mV rise on the supply rail for each mV rise on the base.
However the circuit does not need to detect very small rises and it will be quite acceptable without the 6v2 zener.
It’s only when you need a very close detection of the rise on the power rail that the zener has an advantage.
I have mentioned a lot of “ratios” (detection voltage compared to rail voltage rise) and you need to understand how and why this information is important. Email Colin Mitchell and I will write an article on it.
BC187 is a PNP transistor !!
Always use BC547 for a standard NPN transistor as this indicates the cheapest, lowest-voltage, lowest-current transistor can be used.
If you want a higher current, specify BC338. This makes the circuit easy to interpret.
The 1N4007 diode is not needed as the output transistor turns ON and OFF so slowly that the relay does not produce any back EMF.
These are points that show the author of the circuit does not know much about electronics.


HIGH WATER AND LOW WATER ALARM

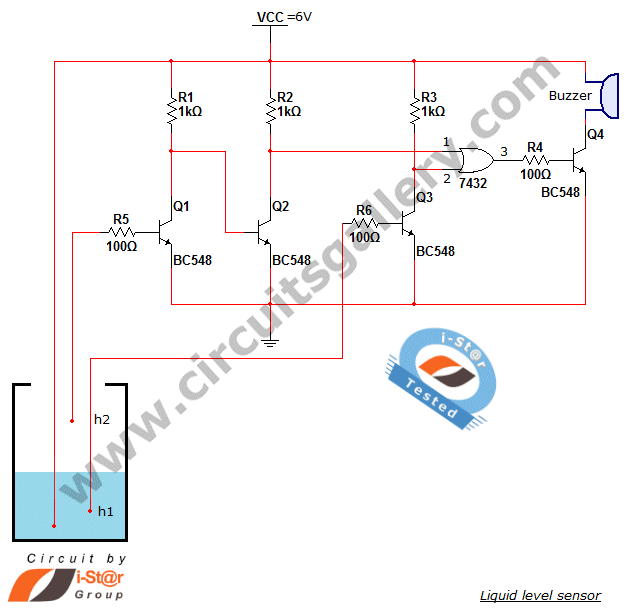

Here is another circuit from the same INDIAN website. The alarm sounds if the water is low or overflowing.

The circuit can be simplified and the OR gate can be removed.
There are lots of ways of including an OR gate without using a digital gate. You can use transistors, diodes or resistors.

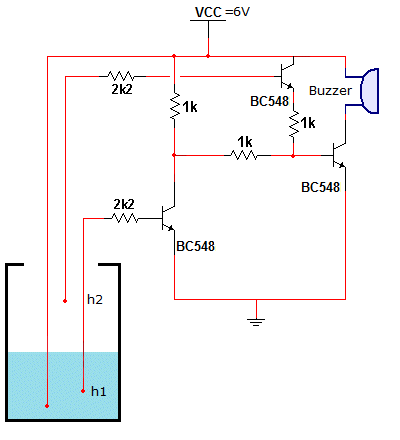

The following circuit uses resistors so the output transistor can be driven from two different transistors:

The skill in designing a circuit is to make it as simple as possible, and work out if each component is needed. You don’t “add an OR gate” just because the circuit needs a gate. See if you can design around the need for a gate and try diodes or resistors to provide the OR function.

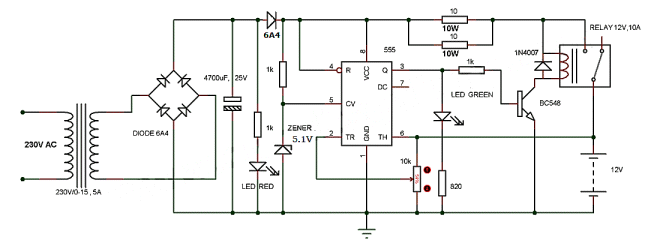

BATTERY CHARGER

Here is another circuit from the same INDIAN website.

Another, untried, untested faulty design.

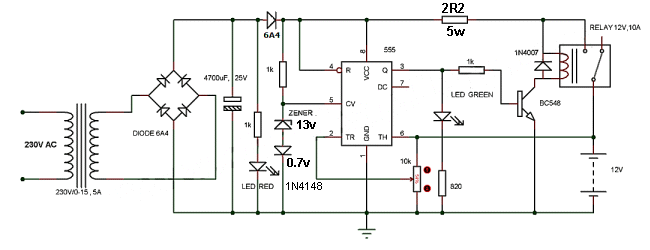

_The main component of this auto battery charger circuit is a 555 timer which compares the voltage in the battery. It turns ON the charger if the battery voltage is below the variable preset voltage (12 volt chosen here) and turns OFF the charger if the voltage reaches 13.8 volt. The battery charging voltage of the charger can be varied by adjusting the variable resistor.

_Pin 5 and 6 are effectively at the same potential via components inside the 555 if nothing is connected to pin 5.
Let’s state this a little more accurately.
Pin 5 is at 66% of rail voltage via three 5k resistors inside the chip. If pin 6 rises slightly above this voltage by a few millivolts, the chip effectively “turns OFF.” Output pin 3 goes LOW.
Pin 6 can be designed to detect any voltage by “injecting” a particular voltage into pin 5.
The circuit show a 5v1 zener on pin 5, but if this zener is 13v (plus an ordinary diode of 0.7v) the detection voltage for pin 6 can be set at 13.7v.
The 10k pot on pin 6 can then be adjusted to 12v for the lower value to turn the 555 ON.

The maximum voltage from the bridge will be about 20v.
The battery voltage will be about 13v. The difference is 7v. As soon as 1.4amps flows through the 10R / 10R the voltage drop will be 7v and it is pointless having a 5 amp transformer and bridge.
This is another circuit that has never been tested.

Hashem Pakdel hashempakdel@gmail.com pointed out the fact that the maximum voltage for the 555 is about 16v to 18v. It will BLOW UP in this circuit DO NOT TRY THIS CIRCUIT.

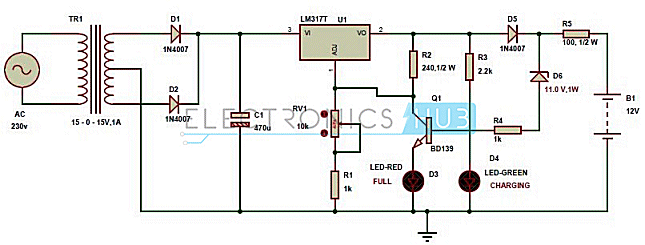

Here is another battery charger circuit that has never been tested.
The 100R feeding the battery will only allow about 50mA of charge-current. At 50mA, the voltage across the 100R will be 5v and Q1 will already be fully turned ON to reduce the current, so in effect the charge currentt will be less than 50mA !!!!
The 11v zener activates Q1 at about 13.5v and at 50mA the battery only has to rise to 8.5v and the charging current drops below 50mA.

470u in the power supply is going to produce 5v ripple. This means the charger is going to provide pulses to the battery, but that is not a problem.
Replace the 100R with 2R2 or 3R3 and the circuit will charge the battery.


EMERGENCY LAMP

Here is a circuit from an INDIAN website.

There are so many mistakes with this circuit that it will not work AT ALL.
The two lamps are 2.5v torch globes and each will take about 100mA to 250mA.
The current through the 33R will be 2.5/33 = 75mA MAX.
The circuit is half-wave so the average current will be 75/2 = 38mA (or something near this value as the 470u stores some energy that will increase the average value).
The transistor is turned ON all the time and the globes will take between 200mA and 500mA.
The charging current is 38mA so you can work out how long the 2Ahr battery will last.
The test switch just turns OFF the lamps !!!
D2 is not needed as the battery will not discharge via the secondary winding when the power fail due to the presence of D1.
Why is D1 a 400v diode and D2 a 50v diode ??
2SB242 is a GERMANIUM PNP transistor. Where are you going to get this transistor ??????

I don’t know what the author is trying to do but it is obvious the circuit has never been built or tested.
The circuit was taken from Alok Kumar website: https://plus.google.com/+alokkumar-NSIT/posts


POWER SUPPLY

Here is another circuit from Alok Kumar.

The 225 capacitor will deliver 150mA and the 100R’s will dissipate 0.15 x 0.15 x 100 = 2.25 watts.
The 1watt resistors will BURN OUT !!!!
The output will deliver 5v1 and maintain this voltage as long as the current is less than 140mA.
The 1,000u is in the wrong place to have the best effect. It should be after the second 100R, across the 5v1.
The 100R and zener create a REGULATED 5v1 POWER SUPPLY capable of delivering up to 140mA and the voltage will be very smooth with the 1000u across the zener.
The 1,000u WILL have an effect before the 100R, but its effect will be 100 times greater when it is placed across the zener.

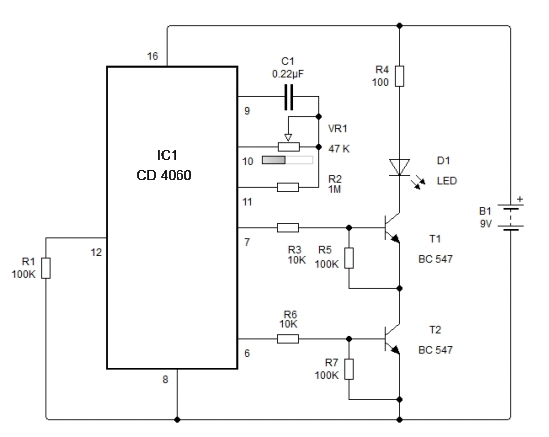

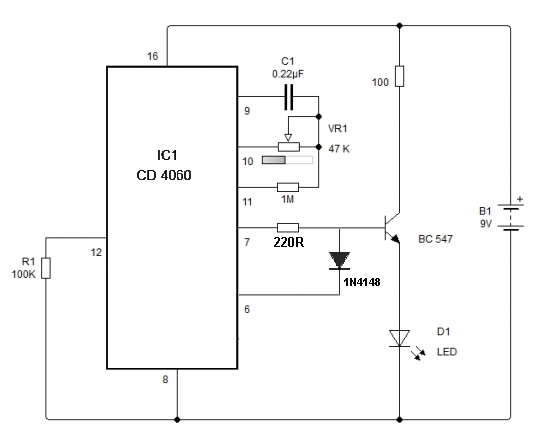

LED STROBE LIGHT

Here’s a circuit from Professor Mohankumar. He does not know how to produce a simple AND Gate:

The second circuit shows how to produce a simple AND Gate with a resistor and diode. The transistor only conducts when BOTH lines are HIGH. It uses only half the components and saves a transistor.

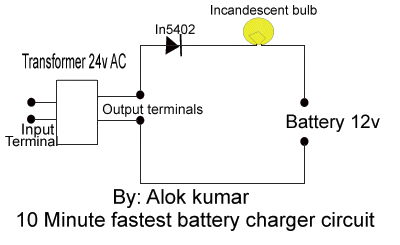

BATTERY CHARGER

Here is another circuit from Alok Kumar.

Here is his article. Can you see his mistake?

Components Required:

  1. One rectifier diode IN5402, or IN5408.
  2. One incandescent bulb, having nearly exact voltage rating as the battery but current rating of the bulb should be 1/10 of the value of battery AH (AmpereHour).
    3 One transformer having double the voltage rating of the battery. For 12 v battery we need 24v Ac transformer, and current rating of 1/10 of the AH of the battery. For 7AmpHr battery we need 7/10 = 0.7A or 700mA current from transformer.

When we switch on the power, the diode from the transformer will produce half wave 24vdc at output.
The incandescent bulb after the diode acts as a “voltage shocker” or a peak voltage remover. The bulb absorbs the peak voltages and provides an output voltage to the battery.

His BIG mistake is FASTEST BATTERY CHARGER CIRCUIT.
He has used a very small transformer and is using half-wave. It will take at least 14 hours to charge a battery. In 10 minutes the battery will receive very little charge.
The output of the transformer will be over 24 + 12 = 36v and the current delivered to the battery will be fairly high. But this is for each half cycle so the average will be about 700mA. It depends on how the globe reacts to the voltage and current flowing in the circuit.


CAR ADAPTER

Another circuit from Professor Mohankumar:

The circuit does work if you change a few values.
But the main point of this discussion is to ask: “What is purpose of each component?”
A car battery is very stable as far as ripple is concerned and the 470u will have no effect on filtering any ripple that does enter the project.
Secondly, the Darlington transistor will have an enormous effect on filtering any ripple and will reduce ripple by a factor of more than 1,000.
But the biggest mistake is the 4v7 zener.
The output from the Darlington transistor will be 4.7v -0.7v - 0.7v = 3.3v
This will be further reduce by the last diode to 2.6v !!!!
What is the purpose of D1 ???
D1 is a 1 amp diode but the fuse is 4 amp. The diode will burn out first !!
The 470R and zener produce a regulated supply with up to 17mA of current flowing through the zener.
Suppose we allow up to 10mA into the base of the transistor and the Darlington has a gain of 1,000, this represents up to 10 amps output.
This means the 1000u electrolytic is not needed.
The 4v7 zener can be 400mW and 470R can be 250mW.
The 0.1 on the output is not needed as the transistor does not “self-oscillate” like many regulators.
Thus you can see, nearly every component is incorrectly labeled on the diagram.
It shows how little the Professor knows about electronics.


BATTERY CHARGER

Another circuit from Professor Mohankumar:

The biggest HIDDEN danger with this type of circuit is this:
YOU CANNOT USE AN ORDINARY TRANSFORMER TO CHARGE A BATTERY.
The transformer has to specially made and labelled battery charging transformer.

The reason is very technical. It boils down to the fact that the output voltage has to be EXACT for the current you will be delivering to the battery.
I am not going into the technical details but the winding has to be accurate to HALF A TURN !!!!
If an ammeter is included in the circuit, you need to add half-a-turn !!!
A 14v transformer actually produces 14v AC and when this is rectified, the voltage is 14 x1.4 = 19.6v.
About 1v is lost across the top diode and 18.6v is too high for a 12v car battery.
We do not know anything about the quality of the transformer and if it delivers more than 3 amp when the battery is fully charged, you will have to turn the charger off.
If it delivers more than 3 amp during the charging process, the transformer may burn out.
There is no current-limiting resistor and that’s why the circuit must be used with caution.
The 470u has no purpose as most battery chargers use the pulsating DC to remove the sulphate deposits.
Sulphate deposits are high resistance and the peak voltage can sometimes penetrate them and remove them or convert them.


THE ZENER DIODE

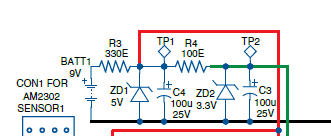

Zener 1
Zener 2
Do NOT use + and - to identify a zener. ONLY use the letter k

Do not label a zener diode with + and - because it is very confusing and totally inaccurate and incorrect. Only use the letter k for cathode.
I know some readers think that one end is more positive than the other when the diode is placed in a rectifying situation, but that reasoning certainly does not apply in this circuit.
As you can see in the circuit above, the zener does not see + on the lower lead, so + and - is not helpful - it is just CONFUSING !!!!!!!


98MHz OSCILLATOR

This discussion has been taken from an electronics forum where a student has asked for component values for the following 98MHz FM oscillator.

My first comment was this:
_You really need a cap across the coil to make a reliable osc.

The answer I got from a technician was:
The effective capacitor across the coil is the one from collector to emitter.

And another answer:
Of course, there is a cap in parallel to the inductor.
As a consequence, we have a tuned circuit, which determines the oscillator frequency.
_

And a third reply:
The two capacitors are across the inductor with the battery in series.

I made some comments about turning the transistor ON and OFF and get this reply:
I think, it is not appropriate for this circuit to think in “ON” and “OFF” terms. The circuit produces a sinusoidal output!

Then we have another comment:
The tuned circuit will have a Q value of maybe 100, in other words, the circulating current will be much higher than the input current, this will be built up over several cycles.

Let’s look at these comments and see how incorrect they are.

Firstly we need to look at the circuit and see if it oscillates.

The circuit above oscillates. It has a coil and capacitor connected in parallel to make a circuit called a TUNED CIRCUIT.
This type of circuit produces a sinewave when connected to a power supply and then instantly removed.
It does not need any other components and it does not need a transistor to produce this effect.
So, what do all the surrounding components do?
They connect the TUNED CIRCUIT to the supply and quickly remove it.
It must be quickly removed, otherwise the voltage produced by the TANK CIRCUIT will be reduced. In other words the surrounding circuitry will put a load on the TANK CIRCUIT.
That means the transistor must be turned on and then turned OFF very quickly.
This clears up the faulty thinking of one the replies above.
Now we come to the amplitude of the waveform produced by the TANK CIRCUIT.
We are going to remove all the surrounding components and talk about the TANK CIRCUIT.
For a correctly designed tank circuit, the energy stored in the coil is equal to the energy stored in the capacitor.
This is necessary because the TANK CIRCUIT produces a waveform consisting of half a cycle that is below the power rail and half a cycle that is higher than the power rail.
For both these half-cycles to be identical, the component values must match.
The full amplitude (called the peak-to-peak value) will be the addition of these two values.
Q-values have nothing to do with current. They are a voltage-determined value.
You can now see the first circuit does not have a capacitor across the coil and even though some of the cycle may be produced by the surrounding components, the equal parts of the waveform cannot be produced.
We have not described how the TANK CIRCUIT produces a waveform above AND below the power rail.
The easiest way is to remove all the surrounding components and tap the TANK CIRCUIT across the battery.
This will put energy into the uncharged capacitor and it will be charged to 3v. During this time the voltage will appear across the coil and it will produce a small amount of flux that will oppose the voltage and thus very little current will flow into the coil.
We are delivering energy to the circuit for a very short period of time and this is too short for the coil.
Now the supply is removed and the energy from the capacitor is slowly fed to the coil and it produces magnetic flux. The coil does not accept energy any faster than a certain rate because the “applied voltage” - the voltage on the capacitor, produces magnetic flux called EXPANDING FLUX and this cuts the turns of the coil to produce a voltage in the opposite direction to OPPOSE the incoming voltage and that’s why the capacitor discharges slowly.
So far we are producing the lower part of the waveform because the bottom plate of the capacitor is at 0v and the capacitor is gradually discharging.
The capacitor continues to deliver current until a point is reached where the coil is producing a “back voltage” equal to the capacitor and suddenly the capacitor cannot deliver any current.
The magnetic flux in the air surrounding the coil cannot be maintained and it collapses. This produces a voltage in the turns of the coil that is in the OPPOSITE DIRECTION.
We not have a situation where the voltage produced by the coil is OPPOSITE to the previous voltage and as the magnetic flux collapses it delivers a voltage to charge the capacitor in the opposite direction.
Since the two components are equally matched in “energy storage” capability, the capacitor is charged to a voltage EQUAL to the original voltage (but in the opposite direction).
Now you can see how the waveform rises to the voltage of the supply rail when the capacitor has no charge and then rises ABOVE rail voltage as the capacitor charges in the opposite direction.
This exchange could continue FOREVER but there are some losses with the magnetic flux and each cycle becomes smaller and smaller.
If we have a transistor that delivers a small amount of energy at exactly the right time during each cycle, the full waveform will be maintained. That is what the transistor and surrounding components do.
For a 3v supply, the peak-to-peak value of the waveform will be 6v.
The “Q” of the circuit is 2. Not 100.


BACK LIGHT CONTROLLER

Here’s another design from: T.K. HAREENDRAN

T.K. HAREENDRAN keeps emailing me about the mistakes on these pages and hates to be criticised.
He claims to be a Professional Circuit Designer and “knows what he is doing.”
Here is a sample of his circuitry from Electronics For You December 2015.
Look at the 22R resistors.
If you refer to 30 LED Projects you will see an article on the importance of providing HEAD ROOM for any string of LEDs.
Head Room is the voltage dropped (lost) in the current-limiting resistor so that it “matches” the voltage across the LEDs and the supply voltage to allow LEDs with slightly different characteristics to be used.
Every LED creates a voltage across its leads when it is illuminated. This can be as low as 1.7v or as high as 3.6v, depending on the colour. This is called CHARACTERISTIC VOLTAGE and varies very little if the LED is small, medium or large. But it can change by as much as 0.4v for white or blue LEDs.
But when you are connecting any number of LEDs to ANY supply, you need to know the exact voltage that will appear across the LED when it is illuminated.
This is easy to do. Just add a 100R or 470R and connect to 6v to 12v measure the voltage across the LED.
In a batch of LEDs, the voltage will vary from 3.4v to 3.6v and if 3 LEDs are connected in series, this will make a difference of up to 0.6v for 3 LEDs.
The voltage for 3 LEDs can be from 10.2v to 10.8v.
If we have 3 x 3.4v on a 12vsupply, the voltage across the 22R will be 1.8v and the current will be 80mA.
But if the voltage of the LEDs is 3 x 3.6v, the current will be 55mA.
The author says the circuit can work with 3.4V/80mA, 10mm white LEDs or with 8mm blue LEDs.
The data sheet states the 10mm white LEDs can be 3v to 3.4v. If 3 x 3v LEDs are used, the current through the 22R will be (12 - 9 = 3v) 3/22 = 136mA.
You can see the current will vary from 55mA to 136mA, depending on the characteristic voltage of the LED and unless you test each LED very accurately before using the circuit, they will be DAMAGED.
On top of this, the 12v must be an accurate 12v supply as an increase of 1v will will also damage the LEDs.
The idea of the CURRENT LIMIT resistor is to provide safety (prevent over-current) for the complete range of possibilities that may occur - including voltage rise.
22R only allows a range of 1.8v and this can be swamped by the supply increasing by 1v and selecting a set of low CHARACTERISTIC VOLTAGE LEDs.
Using 3 LEDs does not allow very much HEAD ROOM and only 2 LEDs should be used, unless you have accurately measured the voltages, and the supply does not rise.
You can also get 10mm white LEDs that require 25mA max for 20,000mcd, (10 cents each on eBay) so some LEDs are much more efficient than others and much cheaper.
The other bad feature of the circuit is the rectangle for the LM358. It should be drawn as an op-amp (a triangle) so you can instantly see what is happening in the circuit.

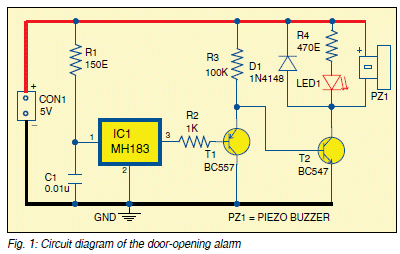

DOOR ALARM

Here is another junk circuit from Electronics For You magazine August 2015.
It is a Door Alarm using a HALL EFFECT device.

The circuit DOES NOT WORK.
If the output of IC1 goes to 0v, the emitter of T1 will be 0.6v due to the base-emitter voltage of the BC557 transistor. The output transistor will be turned ON all the time.
I can see this fault instantly. No-one in the technical department of EFY picked up the mistake and published it to their 40,000 readers. Every issue of the magazine has mistakes like this.
And they told me I could not “spot a mistake” in their magazine !!!
You don’t need a complex circuit like this. Just a reed switch and a magnet !!!

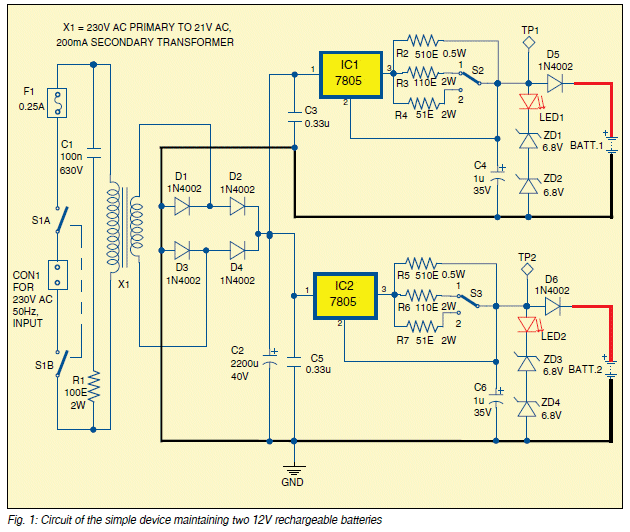

BATTERY CHARGER

Here is another junk circuit from Electronics For You magazine August 2015.
It is a BATTERY CHARGER.

Why include a 7805 regulator when the 51R resistor will limit the current to (30v - 14v = 16v) 16/51= 300mA or 30mA with the 510R resistor (with the 7805 removed).
The 7805 simply maintains the current at 300mA. WHO CARES?????
The 2,200u is not needed and the 7805 is not needed. Another over-designed circuit from Electronics For You, making them look stupid.


FUSIBLE RESISTOR

A resistor can be used as a FUSE, but it has one big problem. It creates a voltage-drop across it and this means the supply rail needs extra electrolytics to provide “stability.”
One reader wants to replace an 82 ohm 0.5watt FUSIBLE RESISTOR.
An 82 ohm resistor will pass a current of 80mA and produce a voltage drop of about 6v6 and stay warm for years, dissipating 0.5 watts of heat.
The current needs to rise by at least 50% for the resistor to start to fail and in most cases it will fall off the board before it changes resistance or the leads will create a dry joint.
When the current increases by 50% (120mA) the wattage (heat) generated will be over 1 watt and the resistor will fail.
However it will go up in smoke if a short-circuit occurs and then you will have to find the shorted component.
If the resistor is replaced by 82R 0.75watt, it will take about 1.5watt to burn out and this will be about 140mA and the voltage across it will be about 10v to 12v.
A 0.75 watt can create a lot of heat and fire if burning out slowly, so it must be covered with fibre-glass tubing and kept away from the PC board and all other components.

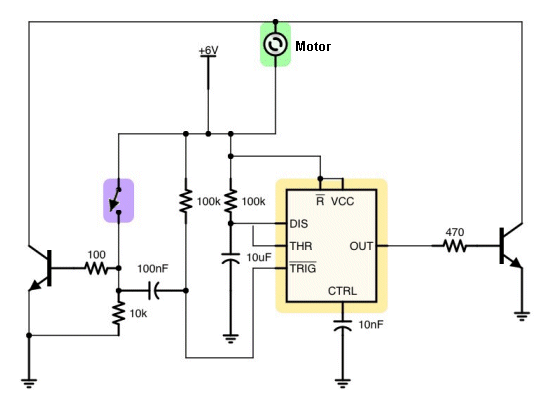

MOTOR CONTROL

Here is a circuit that can be simplified:

The motor continues to operate about 2 seconds after the switch is opened, until the 10u drops below 33% of rail voltage, as is discharged via the 100k.
I have mentioned it before. When designing a circuit, see if the design can be simplified, as someone will always come up with a simpler design. That’s the skill in designing a circuit. And that’s the skill we are showing you in these articles.
We are beyond any text book or university course. We show you more than just being able to design a circuit. We show you how to simply it and improve it.
There are lots of businesses that have gone broke when a competitor has brought out a cheaper and simpler design. The Garrard turntable, tape recorder, video recorder, transistor radio, TV and lots of mechanical devices.
It takes a very clever person to see a device and say: “I can simplify this!”

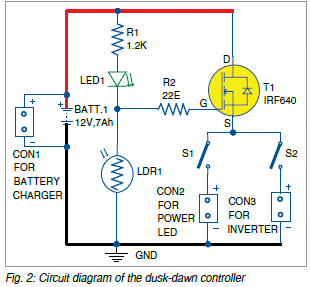

Here’s some mistakes from Electronics For You Magazine January 2016:

The FET is in FOLLOWER MODE and this means the Source rises as the FET turns ON.
But the Gate must be about 2v to 4v HIGHER than the Source for the FET to be fully turned ON.
This means the Source can only rise to 8v to 10v.
The reason for using a FET is the very small voltage dropped across the Drain-Source terminals when it is fully turned ON and that’s why it is able to pass a high current.
This is another useless circuit by Bikash Rai that has not been checked or tested by the non-existent technical staff at **Electronics For You.

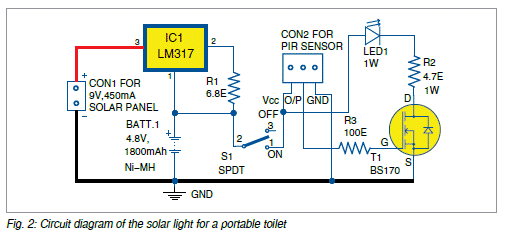

SOLAR LIGHT

Why use a 450mA solar panel and then limit the charging to 180mA?
Buy a 200mA panel and remove the LM317.

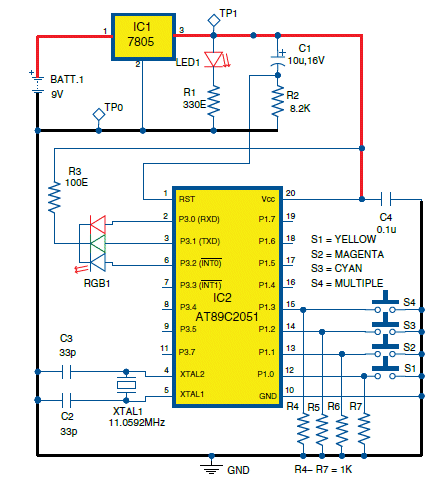

RGB Generator

The problem is the 100R on the tri-coloured LED.
When the red LED is turned ON, pin 2 will be HIGH and the voltage across the LED will be 1.7v.
When the green LED turns ON, it needs 2.1v and only 1.7v is available, so I don’t know what will happen.
And when the blue LED turns on too, it requires 2.3v and I have no idea what will happen.
The common cathode of the tri-LED should be connected to 0v and 100R’s connected between each of the anodes and the outputs of the chip.
This will allow each colour to be driven correctly.
In other words, the tri-coloured LEDs are around the wrong way !!!

Here is a comment from Andrew:
Have a look at the switches and resistors (R4-R7) on Port 1 pins. Since the AT89c2051 has (approx) 50kohm internal pull-ups on Ports 1 and 3, the Indian ‘designer’ didn’t actually need to add these extra four 1k resistors. However, having done so, he tied them all to ground! If they had been connected to Vcc, the switches could have been read. The way the circuit shows, the resistors are not effective. The port pins are tied to ground via the 1k resistors and the switches connect to ground when pressed. What a mess !!!


PIR MOTION SENSOR

Here is another project from T.K. HAREENDRAN.
Here are 4 points to improve this circuit:

  1. The PIR module works on 5v to 20v. A separate 5v supply is not needed. The PIR can be connected to the 12v rail.
  2. A 1N4007 diode is not needed as the module only consumes 3mA !! Use a signal diode 1N4148.
  3. BS 170 costs 70 cents. A BC547 transistor can be used (cost: 10 cents)
  4. R1 is not needed.

FIRE SENSOR

Here’s another poor design from D. MOHAN KUMAR. All his circuits are filled with mistakes. He has no idea how to design a circuit.
The CD 4060 IC can deliver about 10mA from each of the outputs. If you try to take more than 10mA, the output does not go fully HIGH but drops to an unknown value while delivering about 10mA (or slightly more).
This puts added strain on the output and shows the author of the circuit is not a good engineer.
In the circuit above, the 100R resistors on the output will try to take 80mA, and this shows the incompetency of the person designing the circuit. A LED only needs 10mA and a transistor only needs a few milliamp.
The output will only deliver about 10mA, but the output voltage will only be a few volts due to the low value of the load resistor.
If this circuit was presented in any magazine, other than one from India, the author would never be allowed to supply another project.
It is obvious Electronics For You has no-one to test or check any of the projects and that’s why the magazine is filled with RUBBISH like this.

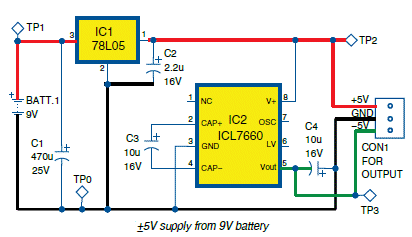

+5v -5v SUPPLY

Here is a project to produce 5v and -5v from a 9v battery for an op-amp, or any circuit that needs a split supply.

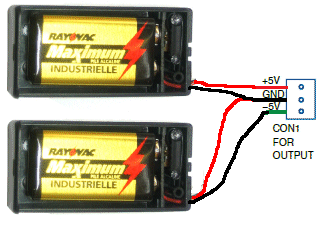

The simplest way to do this is to use two 9v batteries (or AA cells to produce 6v). The circuit below does not need a switch and is not limited to 50mA per output. It is also much cheaper. This is the art of thinking OUTSIDE THE SQUARE.
It is easy to produce something extravagant and expensive, the skill is to produce something simple and cheap.


3v3 ZENER

Let’s look at the zener diodes and the current they can supply.
What happens is this.
The zener diode passes (loses - wastes) a certain amount of current via the load resistor and when you draw current from a ZENER REGULATOR CIRCUIT you actually take (rob) the current from the zener.
The first zener regulator circuit consists of a 5v zener and 330R. The voltage across the 330R will be 4v and the current through the resistor will be 12mA.
You can only take up to 12mA. If you try to take more than 12mA, the “stable” 5v drops to a lower value.
In other words, the circuit DROPS OUT OF REGULATION.
The second ZENER REGULATOR CIRCUIT is the 3v3 zener and 100R. The voltage across the 100R will be 5v - 3v3 = 1.7v. The current through the 100R will be 17mA.
But we only have 12mA available !!!!
This means the 5v zener regulator circuit will DROP OUT OF REGULATION and the 5v will drop below 5v BEFORE the project is connected to the supply !!!!! The voltage will drop EVEN FURTHER when the circuit is added (connected).
This circuit has obviously NEVER been tested and SOMNATH BERA has no idea how to design a circuit.
Just another untried, untested circuit from Electronics For You.
This problem can be detected very quickly by simply looking at the component values. It does not need a University professor to sit down for 30 minutes and work out the values. You can do the calculations “in your head” in 30 seconds and that’s what I am getting across in these pages.
You have to carry out quick calculations for everything you do, so you don’t make a fool of yourself.
Every project in Electronics For You has mistakes. I have notified “Chopra” for the past 2 years and he has done nothing to correct the situation.
In fact he has omitted all my corrections in subsequent issues. He only talks about “R1” should be “R2” and other similar nonsense.

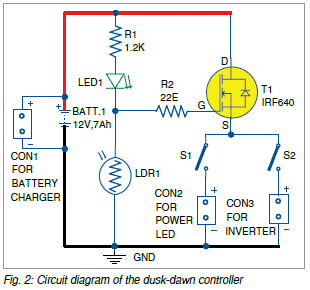

CONTROLLER

Here’s another mistake from Electronics For You Magazine January 2016:

The load should be in the DRAIN. When the GATE is 4v to 10v higher than the SOURCE, the FET turns ON and is finally FULLY TURNED ON.
But since the FET is in FOLLOWER mode, the source rises if the FET turns ON and the voltage on the gate never rises above the voltage on the source.
The following two diagrams show how the FET should be connected in a circuit:


METAL DETECTOR

Here is the front end of a metal detector. The search coil consists of a loop of 1 turn and is fed into a transformer consisting of 1 turn. The other winding is 75 turns.
The circuit was designed by non-electronics personnel and we will explain the problem:

The search coil consists of one turn and when you are picking up very small magnetic fields, the voltage and current produced in the single turn will be very small.
The transformer connected to the loop consists of 1 turn and 75 turns and theoretically the output voltage will be 75 times higher than the voltage generated by the loop.
But the current will be reduced enormously and we all know a transistor is a current-controlled device, and a considerable current is needed to get it to work, especially when 10k is connected to the base.
The circuit will be much more sensitive if more turns are added to the “loop” and the output is connected directly to the transistor.

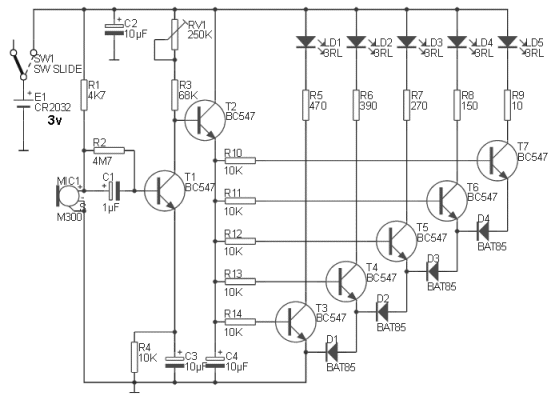

VU METER

Here is another project from Velleman.

The supply is 3v and the final LED has a voltage drop of 1.7v across it when illuminated. The drop across each diode is 250mV = 1v and the collector-emitter voltage of the final transistor (T7) is 200mV.
This makes a total of 2.9v.

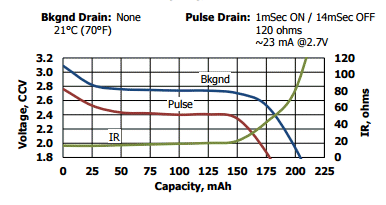

Here is a graph of the voltage when 23mA is flowing:

The supply is 3v
You can see the voltage falls below 3v after a short time and it will be very difficult to illuminate the top 3 LEDs.
The circuit is a very bad design as no allowance has been made for the battery voltage to fall (as the battery get older).

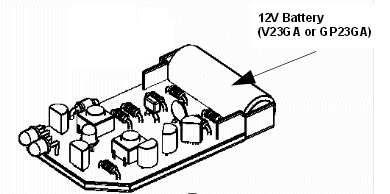

LED TORCH

This is one of the worst kits I have seen from Velleman.
It is a LED torch using a 12v lighter battery. This battery has 8 very small cells with a capacity of 55mAHr.
The blurb claims the battery will last 10 hours but LED1 will take 38mA when the battery is fresh. Firstly, this is too much for a LED and the battery will last less than 1 hour.
When the battery voltage drops below 8.5v, the two white LEDs and red indictor LED are illuminated. I don’t know why this has been done but it makes the LEDs illuminate very dull when the battery is low.


MOSQUITO REPELLER

This is a timing circuit from Mohan Kumar. None of his circuit are designed correctly and this circuit has a BIG MISTAKE.
The 474 capacitor on the input will deliver 30mA and the main load in the circuit is the 1k and green LED. This means the supply voltage will be about 30v. This voltage is too high for the chip and it will be damaged.
In actual fact we don’t know what the supply voltage will be as the chip will start to draw current and the supply will drop but we don’t know the final voltage.
A 6v 100R relay draws 60mA at 6v, but we only have 30mA available, so we don’t know what will happen when the transistor turns ON.
It’s just a stupid circuit with no known operation conditions.
You cannot drive this type of circuit from a capacitor-fed power supply.

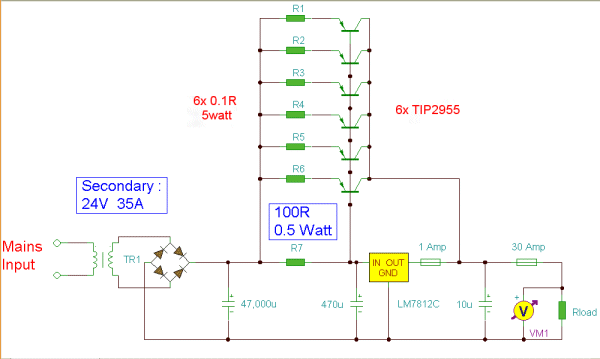

30 AMP POWER SUPPLY

If you want a 12v power supply at high current, the cheapest way is to use a 12v rechargeable battery with a trickle-charge resistor.
If you want high current for a long period of time, use a larger battery (car battery).
High current power supplies have enormous problems, mainly due to the heat they generate (waste) and the danger of one transistor short-circuiting and delivering 30v to the equipment you are powering.
In the circuit above, more than 500 watts will be wasted as heat when 30 amps flows and this will be like a small radiator bar.
You only build a circuit (make a project) when it is economic and reasonable. If there is a cheaper alternative (such as a ready-made power supply), it is better to get the guaranteed performer.
Electronic construction only came about 80 years ago, because products (such as radios, CB radios and amateur radios were not available, or were very expensive).
It’s wonderful to learn about electronics, but if the cost of building it yourself is 3 times the cost of a ready-built item, you have to weigh up the economics.
The output voltage of the 24v transformer is too high as it will deliver 30 volts after the bridge and the circuit only needs 18v for it to operate fully. It needs a 16v transformer and these are not readily available.
That’s why a project like this requires a lot of decisions before you commence construction. It also needs an enormous amount of heatsinking, and this is expensive.

But here is a question posted by a forum member.
He wanted to replace the TIP2955 transistors with MJ11015 Darlington transistors.
He asked if the 200 watt dissipation MJ11015 transistors would work better than the 90 watt dissipation TIP2955 transistors.
There are a couple of points to note, before giving an answer.
The voltage on the output of the bridge is 30v and the output voltage is 12v. The difference is 18v and the current is 30 amps. This produces 18 x 30 = 540 watts of wasted energy.
It does not matter if the wastage is though resistors or any type of transistor. The heat being lost is 540 watts.
Each transistor will dissipate 90 watts and this is the maximum for a TIP2955 transistor.
But don’t forget the MJ11015 transistor is almost identical and to think it will dissipate 200 watts is stretching reality.
Both transistors will get extremely hot and you will need a heatsink 300mm x 300mm to keep them cool.
Just because the MJ11015 transistor is capable of dissipating 200 watts, does not mean it will be a batter performer.
Both transistors are likely to short-out under these conditions and I would never run a transistor to its maximum temperature. You are only asking for trouble.
The only difference between the two devices is the base current.
The MJ11015 transistor will require only 1% of the base current and the 7812 will run much cooler.


Vidyasagar Sir’s Perfect Answers for HSC Board Exam, www.vsagar.org

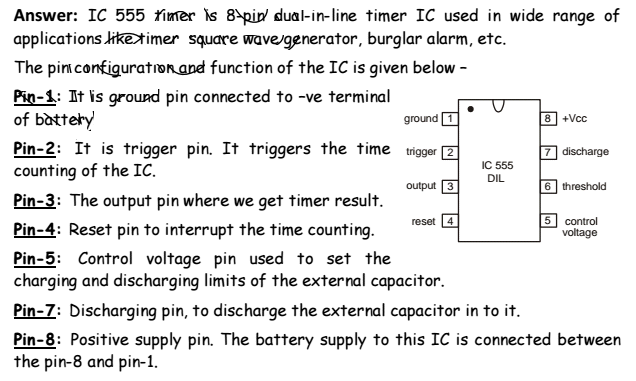

Here is his silly explanations of the 555 pins:

Where is pin 6?

Pin 2 triggers the chip when the voltage is less than 33% of rail voltage. He does not say that.
Pin 7 discharges the capacitor to the negative rail. You don’t say: “into the pin.”
Pin 8. The supply is not always a battery.

We don’t say “counting” for a 555 chip. We leave the word COUNTING for chips that COUNT


Vidyasagar Sir’s Perfect Answers for HSC Board Exam, www.vsagar.org

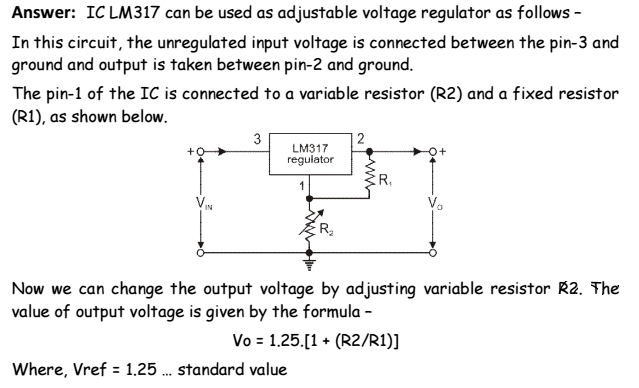

Here is his poor explanation for the LM317 3-terminal regulator:

It would be much clearer to say the minimum output voltage of the LM317 regulator is 1.25v when pin 1 is connected to 0v .
As the resistance of R2 is increased, the output voltage passes down R1 and creates a voltage across R2 that “jacks-up” the regulator and the output voltage rises. The output voltage is always 1.25v higher than pin 1 and the regulator can be “jacked up” to nearly 35v. Now I understand what is happening.

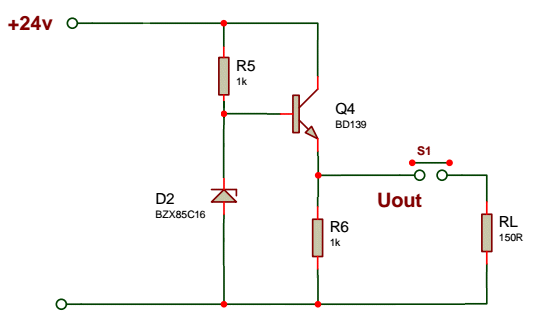

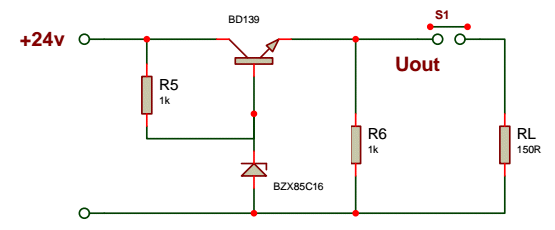

SERIAL REGULATOR

The layout of a circuit is very important to prevent it being read incorrectly.
You may think the circuit above has a good layout, but when you see the improved layout below, you can see the output of the transistor has been drawn closer to the 0v rail to emphasis the relative voltage levels.
It might be a small matter but all these things help to make a circuit easy to understand.


NO PRINTED CIRCUIT BOARDS

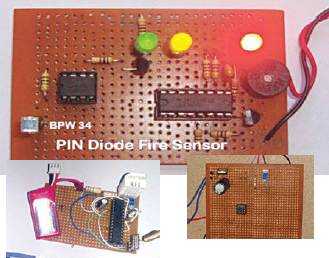

Prototypes

Going through the last 12 months of Electronics For You you find ALL the projects have been built on matrix boards and not one project has a photo of the finished item on a Printed Circuit Board.
Even though many projects have a PCB layout in the magazine, none of them have had a board created and loaded with components.
Electronics For You is the largest electronics magazine in India and NONE of the projects have been finalised and proven successful.
Every other magazine in the world takes a photo of the finished design and offers boards to the constructors who want to build the project. But not Electronics For You.

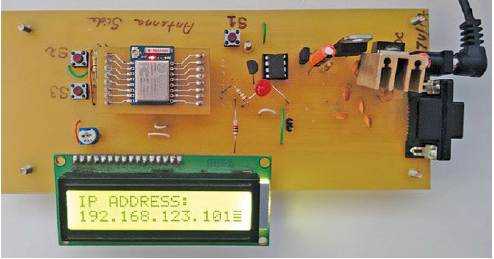

Here’s a prototype from Electronics For You April 2016:

Prototype 1
This is the sort of quality presented in the largest electronics magazine in India !! A junk board with hand-writing on the top of the board. I would not have this sort of junk in my work-room, let alone send it off to a magazine. Look at the resistor and jumper at 45 degrees!!! Electronics For You is just an embarrassment.


MAGNETIC GENERATOR

MagGenFraud

This is a SCAM.
It uses the good name of Tesla in an attempt to pretend he invented a motor-generator type of set-up that produces electricity without any energy entering the system
This is called OVER-UNITY and so-far no-one has created such a device.
However they claim over 10,000 investors are already powering their houses with the “device.”
No-on has an open-house to show their apparatus. No-one has a video and no news organisation has interviewed anyone with a demonstration. It’s just waste of $49 for the .pdf

Here’s the .pdf TESLA’S SECRET $49.00 !!
and here’s another fraud: RUN YOUR CAR ON WATER $69.00 !!

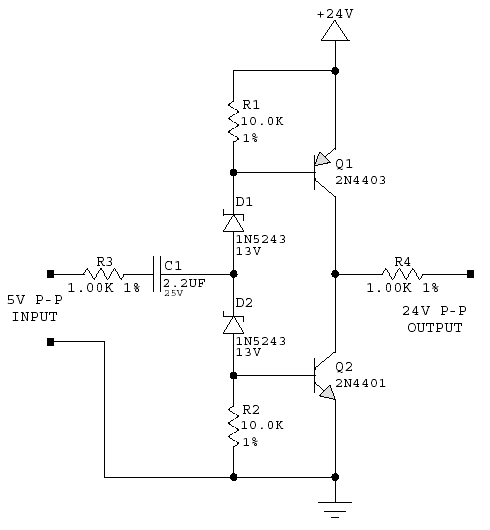

DRIVER CIRCUIT

This circuit looks to be suitable but you have to do the “maths” to see how it will perform.
To start with, the two 13v zeners will have a “dead spot” of 2v because they add up to 26v for the 24v supply.
On top of this the base-emitter junctions at the top and bottom will add another 1v.
This means the input voltage will not have any effect when it is rising and falling by 3v because this is the “gap” between turning on the bottom zener then the voltage falling and turning on the top zener.
Normally “biasing diodes” are just at the point of turning ON, so the rising or falling signal will pass through the diode, even when it is a few millivolts.
Any voltage below 3v will not be transferred and a 5v signal will have some attenuation in the 1k as well as the 2u2. Most 5v signals from a digital source are less than 5v as the output of most chips is 4.5v max and 0.5v min. This gives a 4v p-p signal and the other two losses makes this circuit very unreliable.
On top of this, zeners have a 5% tolerance and another 1v may disappear.
This circuit is called an AC AMPLIFIER.
It only amplifies when the signal is rising or falling. When the signal is a minimum, the 2u2 starts to charge via the top 13v zener and the emitter-base junction of the top transistor.
It charges to 10v. When the signal rises to 5v, the right-side of the capacitor should rise to 15v, but at 13.6v the zener is turned ON and the base-emitter junction is active. This means only 1.4v of the 10v is removed.
When the input signal goes to zero, only 1.4v is replaced in the capacitor.
That’s the first fault.
The second fault is the amount of time taken for the capacitor to charge and discharge.
The charging will be very quick because the charging resistor is 1k. It will take MUCH LESS than one second to charge and discharge.
When the input signal is 1Hz, the circuit will react in less than 100mS and for the rest of the time the output will be zero.
Thus the circuit is not designed for low frequencies.
This is one example of a circuit designed by an “electronics engineer” who did not put enough thought into the design. Before you publish anything, build the circuit and test it thoroughly. This way you will not release something that dos not work.


PHOTO TRANSISTOR


ORIGINAL CIRCUIT

This circuit may or may not work. The hobbyist says it does not work.
Let’s see why:
The circuit is a simple VOLTAGE DIVIDER.
The voltage at “A” will be 2.5v when the photo transistor has a resistance of 10k.
The voltage at “A” will be 4.5v when the photo transistor has a resistance of 1k.
The hobbyist needs a voltage of 3.5v but the photo transistor needs a very bright light to achieve this voltage.

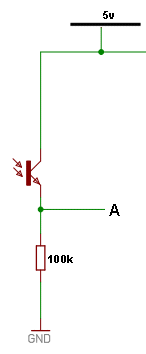

IMPROVED CIRCUIT

The answer is to change the 10k for 100k.

  • The voltage at “A” will be 2.5v when the photo transistor has a resistance of 100k.
  • The voltage at “A” will be 4.5v when the photo transistor has a resistance of 10k.

The photo transistor has a resistance of less than 10k in normal light and the circuit will now work.

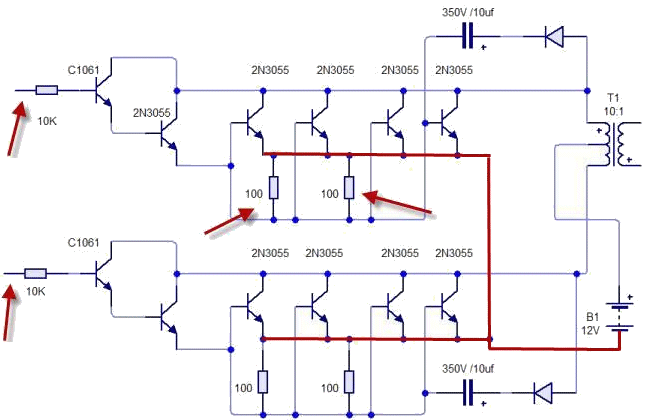

PUSH-PULL

The main problem with this circuit is the driver stage that turns on the 4 parallel 2N3055 transistors.
When the 4 transistors turn ON, the collector voltage will drop to a very small value.
But the collector voltage of the C1061 cannot fall below the emitter voltage, otherwise the transistor will not deliver a current via the emitter.

When the input goes HIGH, the base of the C1061 will be 2.1v above the 0v rail.
When the 3rd transistor turns ON, the collector cannot fall below about 2v because the collector of the C1061 must have a voltage above the emitter for current to flow. This means the voltage across the 4 x 2N3055 transistors will be at least 2v and they will not be fully turned ON.

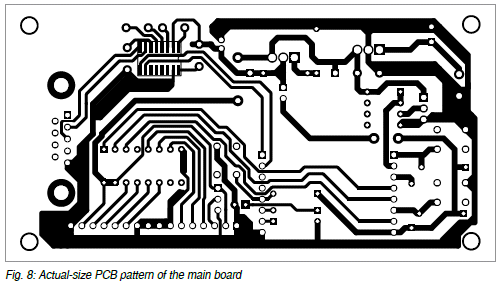

PCB PATTERN

Look at the outline of the IC. It is creating a short-circuit for all the tracks going to the IC. It has not been removed from the trackwork before publication. Just another sloppy bit of work from Electronics For You.

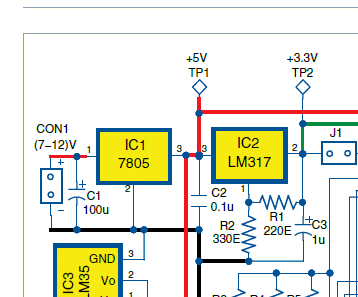

3-TERMINAL REGULATORS

There’s two faults with this circuit from Electronics For You April 2016.
A 3-terminal regulator needs about 2-3 across it for reliable operation. You can get low-dropout regulators to replace the “old-style” regulators and they have a lower dropout (350mV to 1v or so).
In the circuit above, the 7805 needs 2v across it and if the input voltage falls below 7v, the circuit will not work properly.
The LM317 needs 1.7v and only 1.6v is available. Use low drop-out regulators for both these regulators for reliable operation.


EMITTER-FOLLOWER

The output of an emitter-follower is in-phase with the input. The red waveform in the circuit above shows the correct output.

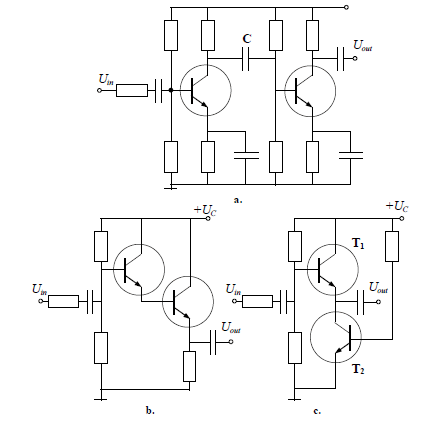

What is the use of putting a circuit in a text-book without any values ???? It’s only the values that will let you know what the circuit is doing and how it is biased.

Look at this RUBBISH:

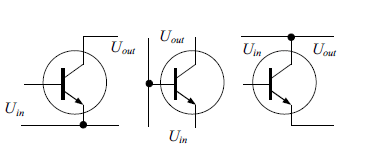

The centre figure is supposed to represent COMMON BASE configuration. If I don’t understand the circuit, how is a beginner going to understand it ???

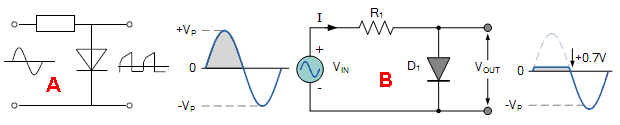

DIODE CLIPPER

The output waveform of diagram A is entirely incorrect. See the output of diagram B. The max voltage will be 0.7v as the diode turns ON at this voltage and when the waveform goes negative, the diode is effectively “out-of-circuit.”

Here is some of the terrible Engwish from: Introduction to Electronic Engineering By: Valery Vodovozov Here is the book as 3.7MB .pdf

Feedbacks. The main toop to improve the frequency response or the step response is a feedback.
When R2 = 0, the current amplifier is a voltage repeater because the voltage gain is equal to unit.
Besides stabilizing of transresistance, the inverting feedback has the same benefits as the non-inverting voltage feedback that is decreasing distortion and output offset.
Conventionally, energy approaches electrical end electronic systems from the power generators of different types: hydro, wind, and heat generators, atomic stations, etc.
Summary. A power supplier has to meet the requirements of the energy consumer, which needs the determined power, voltage, and current values and shape. Voltage sources supply fully controlled voltage, whereas the current may be unpredictable. Current sources generate adjustable current flow, whereas the voltage may change during the supply process. In practice, there is neither the pure voltage nor the exclusively current sources, but one of the features is predominant.
Passive low-pass filters. A low-pass filter reduces high-frequency particles of a signal and passes its low-frequency part.
Nevertheless, in power circuits, they function as the protective devices for the load under the shorts.

FILTER

Passive high-pass filters. The circuits above are high-pass filters. The high pass filter is open for high frequencies and attenuates the low-frequency signals. High frequencies pass through the capacitors but the low-frequency signals are attenuated by the capacitors. On the other hand, the low-frequency signals pass through the inductors, whereas the high-frequency signals cannot pass over the coils. WHAT RUBBISH !!

High frequency signals pass through a capacitor because the waveform on the left plate rises and falls very rapidly and this makes the waveform on the right plate rise and fall at the same rate and the capacitor does not have time to charge and discharge.
A high frequency signal appearing on the top of a coil produces an opposing voltage from the coil that prevents the energy in the waveform entering the coil and passing to 0v - because the opposing voltage has the same amplitude and prevents the waveform passing through the coil.
It is exactly like walking on a swimming pool filled with corn starch.
https://www.youtube.com/watch?v=D-wxnID2q4A
If you run very quickly across the pool you will not sink into the corn starch solution.
But if you stop, you will sink.
If the signal is low frequency, the opposing voltage from the coil has a low amplitude and the waveform passes through the coil (because it has a very low resistance).

It is the desire of all designers to achieve accurate and tight regulation of the output voltages for customer
use. To accomplish this, high gain is required. However, with high gain instability comes. Therefore, the
gain and the responsiveness of the feedback path must be tailored to the adjusted process. ???????? SCHMITT TRIGGER

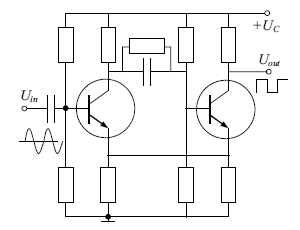

The whole idea of explaining how a Schmitt Trigger works is to show the feedback from the second stage (transistor) to the first transistor. This is shown in red.
Normally the first transistor will produce a change on the collector when the input changes by about 0.7v
This is normal transistor action in a common-emitter circuit. This means a small input signal will change the output. In fact a change of as little as 100mV will affect the circuit. But when we have a feedback line as in this circuit, the operation is completely different.
Suppose the input waveform contains noise of 100mV. This noise will affect the output in a normal amplifier.
To prevent it affecting the circuit we increase the distance between the low and high trigger points to say 3v.
This “gap” is called the HYSTERESIS GAP.

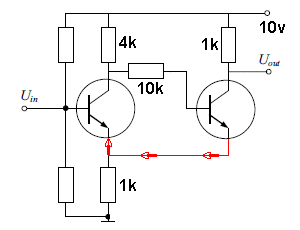

The circuit below has values to emphasize how the input works.
Suppose the first transistor is turned ON. The voltage between the collector-emitter terminals will be less than 700mV (about 300mV) and the second transistor will be OFF. The second transistor sees 300mV between base and emitter and it will be turned OFF.
The voltage across the 4k will be 8v and the voltage across the 1k will be 2v.
The voltage on the base of the first transistor will be 2.7v
To turn the first transistor OFF, the voltage must be reduced.
When it is reduced by 100mV, the first transistor begins to turn OFF and the voltage on the collector rises. This turns ON the second transistor and the current through the two 1k resistors produces a voltage across the lower 1k. This raises the emitter voltage and although the base voltage DOES NOT RISE at this point in time, the voltage between the base and emitter of the first transistor is REDUCED. This turns OFF the first transistor and this is done without the input voltage changing. It is the SWITCHING ACTION of the two transistors that cause the circuit to change states.
The two transistors continue this action until the first transistor is completely turned OFF and the second transistor is completely turned ON. This action is called REGENERATIVE ACTION and means the action continues within the circuit without any external influence.
The circuit finished up with the voltage across the top 1k as 5v and across the lower 1k as 5v.
The base is still at 2.6v The first transistor is completely OFF and the second transistor is completely ON.
To turn ON the first transistor the input signal has to rise to 5.7v
This is a 3.1v rise and we have changed the circuit from 0.7v detection to about 3.1v detection.
The important fact to remember is the circuit creates the rapid switching action and NOT the input signal and the gap between HIGH and LOW is about 3v.
The signal shown in red is called a FEEDBACK signal.
It is a POSITIVE FEEDBACK signal because it assists the input signal in performing its intended task.
With a feedback signal, you cannot consider a signal that is of the same polarity as being positive.
The signal is really ASSISTING (helping); or HINDERING (opposing) and can be rising or falling and yet ASSIST the incoming signal.

Of course the author of the book has good intentions. But English is his second language, however every page has left me wondering what he is trying to say. Some of the statements don’t make any sense AT ALL. That’s why I only use very simple English and don’t try to show my ability at use large, complex words and long, involved sentences. The first time you use a long sentence, the reader will close the book and put it on the shelf. You have lost him forever.
You are not trying to show how clever YOU are. You are trying to get a complex point across by saying it is really very simple to understand.



Tags

spot-the-mistakes
Colin Mitchell

Colin Mitchell

Expertise

electronics
writing
PIC-Chips

Social Media

instagramtwitterwebsite

Related Posts

TODO
Spot the Mistakes 33
© 2021, All Rights Reserved.

Quick Links

Advertise with usAbout UsContact Us

Social Media
