Although Surface Mount Transistors are not strictly “Chips,” they look like “chips” and since these have the word “chip” in their definition, I have decided to include them in this Data Book.
The list is very big and only a short-form of the most common types have been listed here. The full version can be found on the internet: HERE.
You will need to be connected to the web to download the pages.
Identifying Surface Mount Transistors is very difficult as their size is extremely small and the letters and numbers are very difficult to read. The same letters and numbers can be used for different types, depending on the manufacturer and the size of the device - so it’s very complex.

     var SCHEMES = \[\]; var DEFAULT_SCHEMES = '_default.gif'; var schemeHidding; var activeCells; function getAbsolutePosition( el ) { var x = 0; var y = 0; var e = el; while( e != null ) { x += e.offsetLeft; y += e.offsetTop; e = e.offsetParent; } return {x: x, y: y}; } function showScheme( id, lnk ) { var X_OFFSET = 86; var Y_OFFSET = 16; if( document.layers != null ) _showScheme( id, lnk.x + X_OFFSET, lnk.y + Y_OFFSET, null ); else { var p = getAbsolutePosition( lnk ); _showScheme( id, p.x + X_OFFSET, p.y + Y_OFFSET, lnk.parentNode.parentNode ); } } function _showScheme( id, x, y, tr ) { var HIGHLIGHT_COLOR = '#89B6E2'; clearTimeout( schemeHidding ); if( document.layers != null ) { var e = document.layers\['Configuration'\]; e.left = x; e.top = y; e.visibility = 'show'; } else { if( activeCells != null ) { for( var i = 0 ; i < activeCells.length ; i++ ) activeCells\[i\].style.backgroundColor = activeCells\[i\].defaultColor; } var es = tr.getElementsByTagName( 'TD' ); activeCells = es; for( var i = 0 ; i < activeCells.length ; i++ ) { activeCells\[i\].defaultColor = activeCells\[i\].style.backgroundColor; activeCells\[i\].style.backgroundColor = HIGHLIGHT_COLOR; } var e = document.getElementById('Configuration'); e.style.left = x; e.style.top = y; e.style.visibility = 'visible'; } var src = (id != null && SCHEMES\[id\] != null && SCHEMES\[id\] != '') ? SCHEMES\[id\] : DEFAULT_SCHEMES; document.images\['preview_configuration'\].src = 'Products_files/' + src; } function hideScheme() { clearTimeout( schemeHidding ); schemeHidding = setTimeout( _hideScheme, 250 ); } function _hideScheme() { if( document.layers != null ) { document.layers\['Configuration'\].visibility = 'hide'; } else { if( activeCells != null ) { for( var i = 0 ; i < activeCells.length; i++ ) activeCells\[i\].style.backgroundColor = activeCells\[i\].defaultColor; activeCells = null; } document.getElementById('Configuration').style.visibility = 'hidden'; } }  #Configuration { Z-INDEX: 100; LEFT: 0px; VISIBILITY: hidden; POSITION: absolute; TOP: 0px }  SCHEMES\[18\] = 'DualComplementary(R1).gif'; SCHEMES\[19\] = 'DualComplementary(R1R2).gif'; SCHEMES\[30\] = 'DualNPN(R1).gif'; SCHEMES\[31\] = 'DualNPN(R1R2).gif'; SCHEMES\[33\] = 'DualPNP(R1).gif'; SCHEMES\[34\] = 'DualPNP(R1R2).gif'; SCHEMES\[52\] = 'SingleNPN(R1).gif'; SCHEMES\[53\] = 'SingleNPN(R1R2).gif'; SCHEMES\[54\] = 'SingleNPN(R2).gif'; SCHEMES\[57\] = 'SinglePNP(R1).gif'; SCHEMES\[58\] = 'SinglePNP(R1R2).gif'; SCHEMES\[59\] = 'SinglePNP(R2).gif'; SCHEMES\[94\] = 'R1, R2 30381.gif';

Prebiased Transistors

Catalog P/N	Mouse-over to view Configuration	Image	Max. Power Dissipation Pd (mW)	Bias Resistors R1 (KW)	Bias Resistors R2 (KW)	Max. Output Current IC (mA)	Package Outline
DCX114EH	Dual Complementary (R1/R2)		150	10	10	100	SOT563
DCX114EU	Dual (R1/R2)		200	10	10	100	SOT363
DCX114TH	Dual Complementary (R1)		150	10	0	100	SOT563
DDA114EH	Single (R1/R2)		150	10	10	100	SOT563
DDA114TH	Single (R1)		150	10	0	100	SOT563
DDA114TK	Dual (R1)		300	10	0	100	SOT26
DDTA114GCA	Single (R2)		200	0	10	100	SOT23

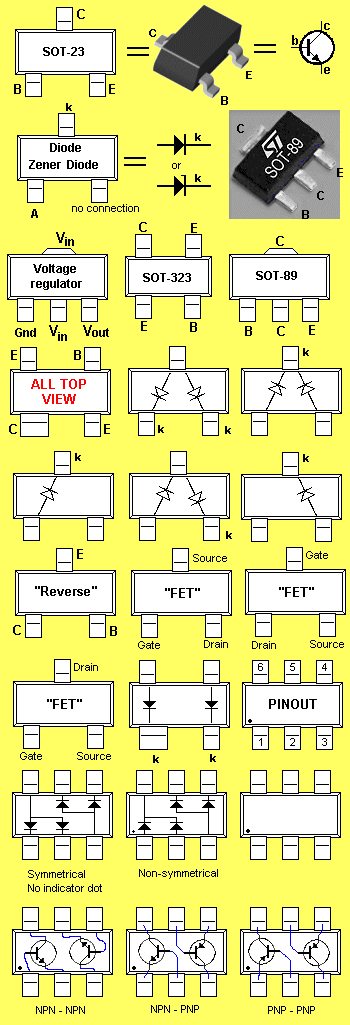

• * = SOT 23
• # = SOT 323
• + = SOT 89
• EM3: L=1.6mm W=1.6mm
• UMT: L=2mm W=2.1mm
• SC70: L=2mm W=2.1mm
• SMT: L=2.9mm W=2.9mm
• SOT-23: L=2.9mm W=2.9mm
• SOT-89: L=1.6mm W=1.6mm
• SOT-323: L=2mm W=2.1mm

‘R’ indicates reverse leads
