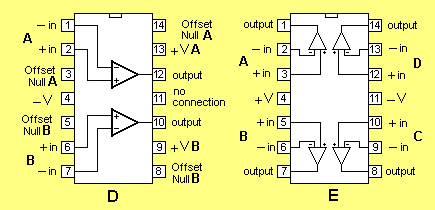

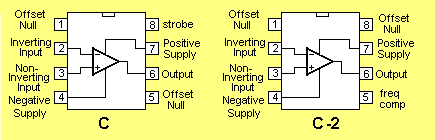

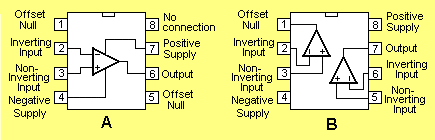

| Device | Function | Pins | Pinout |
|---|---|---|---|
| A | |||
| CA3080 | Dual Transconductance (LM3080) | 8 | C |
| CA3130T | Single op-amp MOSFET uncompensated | 8 | C |
| CA3130E | Single op-amp MOSFET/bipolar/compensated | 8 | C |
| CA3140E | MOSFET LM741 pin compatible | 8 | C |
| CA3160E | Single op-amp | 8 | E |
| CA3240E-1 | Dual op-amp | 14 | C |
| CA5130E | Single op-amp | 8 | C |
| CA5160E | Single op-amp | 8 | |
| ICL7611D | Single low-power op-amp | 8 | F |
| ICL7641E | Quad low-power op-amp | 14 | F |
| ICL7642E | Quad low-power op-amp | 14 | |
| ICL7650S | Chopper stabilised op-amp | 14 | |
| ICL7652C | Chopper stabilised op-amp | 14 | F |
| LF347N | Quad high-performance op-amp | 14 | A |
| LF351N | Single high-performance op-amp | 8 | B |
| LF353N | Dual high-performance op-amp | 8 | A |
| LF355N | Single high-performance op-amp | 8 | |
| LM10CLN | Dual Low-voltage compensated with reference | 8 | A |
| LM301N | Single general-purpose op-amp | 8 | A |
| LM301AN | General purpose uncompensated | 8 | A |
| LM308N | Single low-drift op-amp | 8 | F |
| LM324N | Quad low-power compensated | 14 | G |
| LM358N | Dual low-power compensated | 8 | |
| LM614 | Quad gen purp Compensating with adj reference | 16 | A |
| LM741 | Single General purpose uncompensated | 8 | B |
| LM833N | Dual low-noise Hi-Fi Audio compensated | 8 | |
| LM1360N | Dual transconductance | 16 | |
| LM1458N | Dual general-purpose compensated | 8 | F |
| LM3900N | Norton Quad Current Differencing | 14 | C-2 |
| LM627CN | Precision low-noise | 8 | C-2 |
| NE531N | Single high-performance | 8 | C-2 |
| NE5532 | Dual low-noise | 8 | C-2 |
| NE5534P | Single Low-noise high-output | 8 | |
| NE5539 | Single wide-band | 14 | C-2 |
| OP27 | Low-noise precision | 8 | B |
| RC4558P | Dual high-performance | 8 | A |
| TL061CP | Single low-power | 8 | B |
| TL062CP | Dual low-power | 8 | E |
| TL064CN | Quad low-power | 14 | A |
| TL071CP | Single low-noise | 8 | B |
| TL072CP | Dual low-noise | 8 | E |
| TL074CN | Quad low-noise | 14 | A |
| TL081CP | Single high-performance | 8 | B |
| TL082CP | Dual high-performance | 8 | E |
| TL084CN | Quad high-performance | 14 | |
| TLC251 | Low-voltage Power CMOS | 8 | |
| UA4136 | GP low-noise | 14 | A |
| 741 | Single General purpose uncompensated | 8 | A |
| 741S | Single High-speed | 8 | D |
| 747 | Dual general-purpose | 8 | |
| 748 | Single general-purpose | 8 | |
| 759 | Power op-amp | Tab |
