Capacitor Discharge Units - an overview
02
ACTUATING THE POINTS

Capacitor Discharge Units - an overview

Talking Electronics has produced 6 different projects to control a set of points.

Three projects are available:
CDU-2 - solder leads to PCB. Comes with 2 x 1,000u electrolytics

CDUMkII Sm
CDU-2

CDU-2

CDU-MkIIB - has screw terminals and 2 x 2,200u electrolytics.

CDUMkIIB Sm
CDU MkIIB

CDU MkIIB

CDU using SPDT switch - comes with 2 x 1,000u electrolytics. Uses SPDT toggle switch.
(Or you can get 2 x 2,200u electrolytics at an extra $1.50 each)
CDU - In-line version - has screw terminals and a DPDT toggle switch soldered to the end of the board to make installation very easy. CDU InlineTop Sm
CDU In-line version

The following four projects use a motor, servo, linear actuator or Peco/Hornby Solenoid to move the rails.

  • Point Controller using a Linear Actuator
  • Point Controller using a Motor and Gearbox
  • Point Controller for a Peco/Hornby Solenoid
  • Point Controller using a Servo

These projects offer a very inexpensive way to turn a manual set of points into remotely controlled points and three of the projects detect the train and automatically set the points.

ACTUATING THE POINTS

There are a number of different point-actuating mechanisms on the market and some of them can get very hot or “burn-out” if a protection circuit, called a Capacitor Discharge Unit, is not fitted.
The controllers we are talking about are:
Peco/Hornby Solenoid Point Controller:
HornbyController
HornbyController 2

These are all the same design. They contain two coils (solenoids) to move a lever left or right.
Talking Electronics has 3 projects to control these “Motors” to prevent BURN-OUT. The projects use different types of switches.
Peco Point Motors are also available with two micro-switches to:

  1. supply voltage to the “frog rail” in the centre of the point, and
  2. Activate LEDs (or globes) on your control panel.

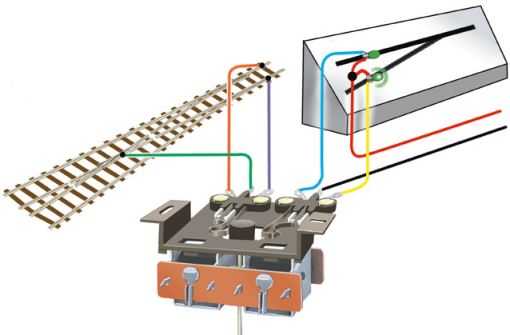

Here is the circuit:
Controller MicroSw

Talking Electronics Capacitor Discharge Unit-2 [(CDU-2](//TODO FIXME COLIN)) and [CDU-MkIIB](//TODO FIXME COLIN) will operate these “motors” and prevent “burn-out.”
[CDU-2](//TODO FIXME COLIN) connects to your layout by soldering 4 wires to the PC board. Cost $10.20
[CDU-MkIIB](//TODO FIXME COLIN) has screw terminals so the project can be assembled and easily connected to your layout with a screwdriver. Cost $12.50

<!-- //TODO FIXME: URLs above are broken -->

Here is the circuit:

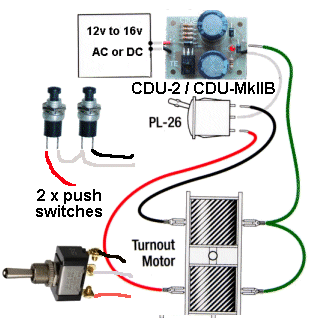

CDU-2 and CDU-MkIIB can be controlled by:

  1. Two separate push switches, or
  2. A toggle switch with centre-off
    If using a centre-off toggle switch, it must be returned to the centre-off position to allow the CDU-2 to re-charge the electrolytics.
  3. Peco PL26 Passing Contact Switch.

If using a normal toggle switch, you need Talking Electronics project: POINT CONTROLLER using TOGGLE SWITCH. Cost: $13.50
You can also use a centre-off toggle switch with this project and it does not have to be returned to the centre-off position.

PL-26 PASSING CONTACT SWITCH
PecoPL26
The cam on the red lever closes the contacts on either the left or right side of the switch when the lever is passing from centre-position to end-position (50° to 70°) or (110° to 130°). You can see the slot at the point where the lever pivot has an effect of the positioning of the lever due to the spring-action of the lever containing a cup to hold the red lever hard against the pin and thus the right-side of the red lever will close the contacts on the right-side. This produces a brief “closing-time” for the Capacitor Discharge Unit to deliver a pulse of energy to the point motor.
The CDU project prevents the point motor burning out, just in case someone does not move the lever fully to the left or right position.

PecoPL25
Peco PL-23 and PL-25 switches MUST include CDU units in the wiring to prevent “motor burn-out.” These switches do not have the brief passing-contact-action of PL-26.

Other controllers are large and expensive:

Tortoise Slow moving Point Controller:
Tortoise
Tortoise Point Controllers need to be mounted UNDER your layout and this may be impossible. Talking Electronics has a [project](//TODO FIXME COLIN) using a slow-moving miniature linear screw actuator mounted on top of your layout. It is cheaper, smaller and the circuit contains an IR detector to detect a train and automatically change the point.
The project is designed to alternately take the train to the “siding” or “ahead” and when combined with the [COPYCAT-1](//TODO FIXME COLIN) project, you can produce a very interesting automatic operation on your layout.

<!-- //TODO FIXME: URLs above are broken -->

Tortoise Slow moving Point Controller can be replaced with [Turtle Point Controller-1](//TODO FIXME COLIN) using a servo to provide the action to change the point. It is mounted on the top-side of your layout. This project also includes an automatic feature where the point is alternative changed from “siding” to “ahead” when the train is detected by an IR sensor.
[Turtle Point Controller-2](//TODO FIXME COLIN) controls a miniature linear screw actuator to change the point.

<!-- //TODO FIXME: URLs above are broken -->

The choice of the project will depend on the type of switch you want to use as well as the space available to operate the set of points and if you want manual or automatic operation.
Some of these projects use a servo motor and one project uses a very small linear actuator (called a screw actuator) that responds to the same PWM signals of a servo.
All these project have been designed to take the place of expensive controllers on the market and allow you to make your own controllers.

Go to one of the projects described above for more details.
