Tests capacitors from 1p to 10u, in 6 ranges. Connect it to your multimeter (0v - 10v scale)


This simple add-on capacitance meter has been specially designed to help you identify capacitors from 1p to 10u.
There has always been a problem identifying capacitors, due to the enormous variety in size, shape and coding. Most of the time it is impossible to identify them by size due to the different forms of construction. So you have to be able to read and interpret the codes on the body. But if the numbers are missing or microscopic in size, you have a problem. The only solution is to have a piece of test equipment to identify them for you.

Capacitance Meter Premade top

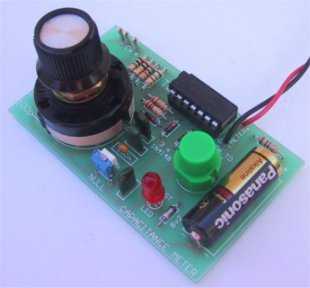

Capacitance Meter Premade

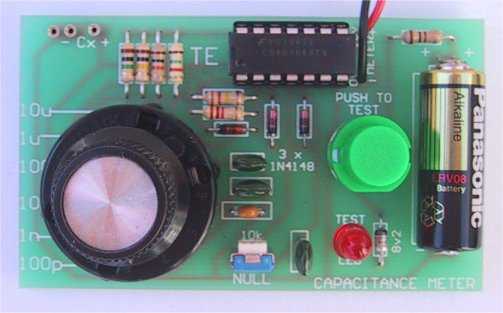

Two views of the Capacitance Meter

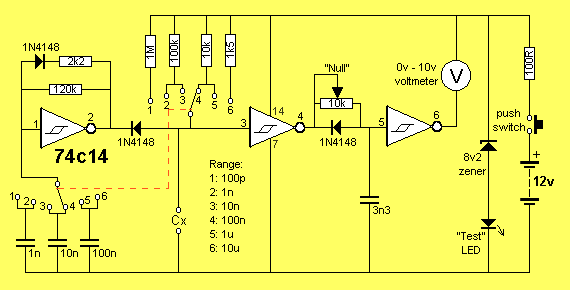

Add on CAPACITANCE METER CIRCUIT

This project is exactly what you need. It is simple to construct and can be connected to almost any analogue multimeter.
The scales are accurate over each range - certainly good enough to provide you with the value of any capacitor between 1p and 10u.
The actual accuracy depends on the tolerance of the components used in the design and since we have used 10% components, you can assume this accuracy for any of the readings you take. It is interesting to note that the actual value of a capacitor is not important for most applications.
Coupling capacitors can be +/-50% without affecting performance, as can bypass capacitors. About the only types that have to be accurate are tuning capacitors and those in oscillators, and then there is usually a trimmer cap or slug tuned coil that can be adjusted to set the frequency.
The reason we designed this project was a result of our need to determine the value of a couple of capacitors we were using in the front end of an RF motion detector (yet to be released). It had to be 1.8p and the capacitors I found in our parts store looked like 18p - it was difficult to read the value printed on the body. I had to borrow one of the staff’s capacitor testers to prove it was 1p8.
When you are working with high frequencies such as 400MHz, capacitors have to be the correct value or the circuit will not work. Certainly an 18p will not work in place of a 1p8 in an oscillator stage at this frequency.
The tester proved so handy I thought it would be a good idea to present something similar as a project.
It’s very handy when you are not sure of a value. This is especially important with surface-mount components as their value is not marked on the body and the size is no indication of capacitance. Many capacitors are made in layers to reduce their size and this is certainly the case with surface-mount. We have instances where 10p is physically larger than 22n! - this is because the 22n is made up of many layers.
Ceramic capacitors can sometimes be a problem too. Their size is also dependent on the layer principle and a 22n can be the same size as a 10p or even smaller! There is also a problem with the markings. Sometimes 100p is marked as “100” and sometimes “101.” You have to think every time you pick up a component and remember the coding being used - if you don’t want to make a mistake.
At the end of this article we have included a section on the coding of capacitors and this will help you identify some of the more difficult values.
If you make a mistake and put 102 or 103 in a circuit in place of 100p, you may be creating a fault that you will never locate as 102 is 1n and 103 is 10n. We have also had the case of a 1n capacitor being marked 1n0. The numbers were so small that the constructor thought it was 100, and used it as a 100p!
It’s even more difficult to decipher 5.6p from 56p on tiny ceramic capacitors as the decimal point is so small that a magnifying glass can hardly pick it up.
Another trap is the marking of capacitors such as 47000 instead of 47n or .0022 instead of 2n2.
When we are making up the kits, we know a component is 5p6 because it comes from a box labelled 5p6 or marked on the bag as 5p6, but when you pick up some oddments from a junk box, you can’t be quite so certain.
When you are experimenting with high frequency circuits such as RF stages in transmitters, you will very soon realise the importance of “p” values. The difference of only a few “p” will change the frequency many MHz, depending on where it is situated in the circuit. The wrong value will even prevent a stage from oscillating.
So there we have it, some capacitors are critical and some can be almost any value.
Going back to the old radio days and the introduction of transistor radios, some of the ceramic capacitors had a tolerance of 50% to 80%. This wasn’t a problem as they were used in bypass situations and for coupling where a value could be increased by as much as 100% without any affect in performance.
Tolerance has improved with modern components and the normal tolerance is now about 10% to 20% but we need not be concerned with the accuracy of a capacitor, or the tester, but rather the need to determine if the value marked on the body is the same as it appears to a circuit.
By double-checking with a tester, you will prevent silly mistakes such as using a 10n capacitor in place of a 1n or 5p6 in place of 56p.

Now to the technical part …

Measuring from 1p to 10u is a factor of 10 million. To cover this we need 6 ranges. Each range is divided into 100 parts, making it easy to read values on a 0-10v scale.
For each range we need to switch some of the components into circuit to create the necessary test frequencies and charging values. This is the function of the rotary switch.
All you have to do is fit the unknown capacitor to the test socket and press the button.
If you don’t know the value of the capacitor at all, you can start on any range. When on an incorrect range, the needle will swing full scale or not move at all. Only when it’s on the correct range will deflect the appropriate value.
The only other time when the needle will swing full-scale is when the value is equal to full scale deflection. This may sound a bit complex but you’ll see what we mean in a moment.

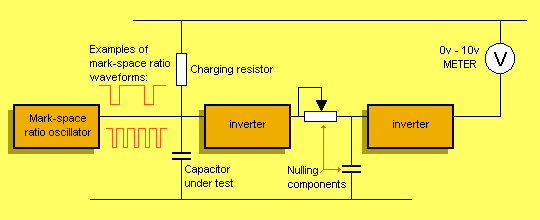

Block Diagram of the Capacitance Meter

HOW THE CIRCUIT WORKS

This circuit reads the value of a capacitor and displays it on an analogue meter.
Designing a circuit to do this is considerably more difficult than you think as the only way to read a capacitor is to charge it and measure how long it takes to charge.
As you may be aware, the charging of a capacitor is a non linear function and so we must create a circuit that by-passes the non linear problems and works on a linear arrangement.
We have done this by charging the capacitor to a specified voltage level and this level is detected by a gate.


The input of the 74c14 detects the voltage on the capacitor at 70% and up to this point the charging is quite linear.

We wanted to use our favourite chip, the 74c14 hex Schmitt Trigger in this project. It operates by detecting 2/3 of the rail voltage to change the state of the output. At first it seemed that this could not be used to create a linear output. But where there’s a will, there’s a way.
Not only does the circuit produce very good linearity, but it is simpler and better than anything else we have seen.
The circuit works on a timing principle. The first oscillator, between pins 1 and 2 has a high time of 100 units and a low of 1 unit.
The HIGH is created by the 120k resistor and the capacitor selected by the rotary switch and the low is created by the 2k2 and diode.
This gives us our starting point where we can divide a scale into 100 parts.
The next section of the circuit charges the test capacitor via a resistor selected by the rotary switch.
The requirement of this section is to charge the largest capacitor (in the range) in exactly 100 units of time.
This means a 100p capacitor will take 100 units of time to charge and it will not quite get to the point where the gate detects a HIGH before the output of the timing oscillator goes tow and discharges it, ready for the next cycle.
This means the output pin 4 will not go low so that the 3n3 capacitor will remain fully charged.
The third gate inverts this result so that output pin 6 remains low and thus the meter gives a full range reading of 10v. This is read as “100” to give a value of 100p.
If a 99p capacitor is tested, it will charge in 99 units of time and the output pin 4 of the Schmitt gate will go low for one unit of time and discharge the 3n3 capacitor. This will make output pin 6 of the third Schmitt trigger HIGH for one unit of time and thus the meter will be turned off for one unit of time out of 100.
Now, here comes the clever part.
Since the circuit is operating at a fairly high frequency, the needle of the meter does not have time to swing back to zero during this one unit of time but it does drop a small amount and the result is it sits on 9.9, or “99” on the scale.
At the other end of the scale, if a 1p is fitted, the capacitor will charge in one unit of time and output pin 4 will go low for 99 units of time. The inverter between pins 5 and 6 will produce a one-unit pulse to the meter and thus the needle will rise .1 v and this will be read as “1” or 1p.
Now we come to the nulling circuit made up of the 10k pot and 3n3.
If no capacitor is fitted to the test terminals, the mark-space ratio oscillator will produce a high for 100 parts, and a low for one part of the time and this will go directly through the inverter between pins 3 and 4.
If the nulling components were not present, output pin 6 would be high for 100 parts and low for one part.
This means it would put a small “set” of about one part on the meter and cause a unit deflection. In other words the meter would not zero and when measuring the low values in any of the ranges, such as 1p, 1n etc, the needle would add one to the result to get “2” etc. This may not be important at 100p, but at 2p2 the value will be 3p3 and it would be annoying to have to take 1p off the readings.
Another solution is to re-zero the meter but the best solution is to provide a nulling circuit.
The 3n3 and 10k trim pot are designed to create a timing circuit that takes one unit of time to charge and thus the first one unit of time is not registered on the output.
The other features of the circuit are a voltage stabilised section made up of a zener diode and 100R resistor as well as a LED to indicate the battery voltage is above the 10v required to drive the circuit and a test button so that power is only applied for the brief moment when you want to make a test.
A 12v lighter battery has very little capacity and cannot be expected to supply a circuit for any more than a few moments at a time.

Capacitance Meter Kit

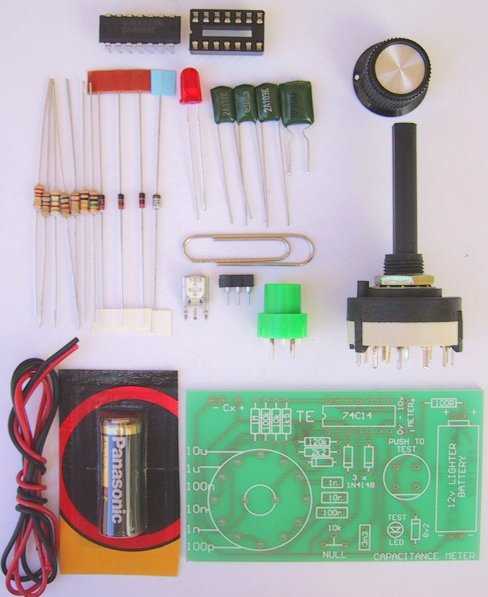

The Add-on Capacitance Meter kit

Capacitance Meter Parts List

  • 1 - 100R

  • 1 - 1k5

  • 1 - 2k2

  • 1 - 10k

  • 1 - 100k

  • 1 - 120k

  • 1 - 1M

  • 1 - 10k mini trim pot

  • 1 - 1n greencap (102)

  • 1 - 3n3 greencap (332)

  • 1 - 10n greencap (103)

  • 1 - 100n monoblock (104)

  • 3 - 1N4148 diodes

  • 1 - 8v2 zener

  • 1 - 5mm red LED

  • 1 - 74c14 Hex Schmitt trigger IC

  • 1 - 14 pin IC socket

  • 1 - 2 pole 6 position rotary switch

  • 1 - knob to suit

  • 1 - push button

  • 1 - 12v lighter battery

  • 3 - machine pins for test socket

  • 1 - 20cm red hook-up flex

  • 1 - 20cm black hook-up flex

  • 2 - paper clips for multimeter

  • 1 - CAPACITANCE METER PC BOARD

Extras:
You will also need a 0v - 10v meter.

CapMeterPCB

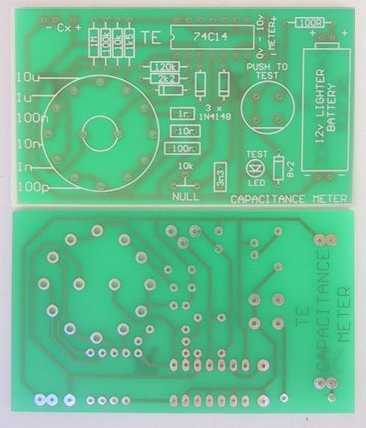

Capacitance Meter Printed Circuit Board

CONSTRUCTION

All the components fit on a compact PC board with the 12v lighter battery soldered on the board too.
The range switch is a PC mount type so that no wires are needed between the switch and board. This makes the project very neat and tidy
The first item to fit is the IC socket, making sure the cut-out at the end of the socket goes over the mark on the PC board. This will help you fit the chip around the correct way at the completion of construction.
Next fit the small components such as the resistors, diodes, capacitors and zener, along with the LED, slide-switch and trim pot.
The machine pins for the test capacitor are from an IC socket and these are added to the board to complete the small components. All that’s left is the fitting of the rotary switch and the tinned copper wire for the 12v lighter battery.
It is not easy to see how the battery is held in position by viewing the photos. Put a loop of tinned copper wire into two holes on the PC board and solder it in position. Do the same at the other end of where the battery will be fitted. Place the battery in position and solder the positive end of the battery to the loop of tinned copper wire and the negative end of the battery to the other loop of wire.
You must be fairly quick to prevent the battery heating up.
Solder red and black leads to the 2 paper clips and solder the leads to the PC board. Bend the paper clips to fit the + & - sockets of the multimeter. Fit the knob to the switch and add the IC to the socket to complete construction.
Press the push switch and see the LED come on. It should now be ready for setting up and testing.

THE NULL CIRCUIT

Before the Capacitance Meter can be used for the first time, the output must be nulled so that it produces a zero reading when no capacitor is fined.
To do this, connect the paper clips to a multimeter set to 10 volts and press the button. Turn the 10k mini trim pot until the needle just reaches the zero mark. It is now ready for use.

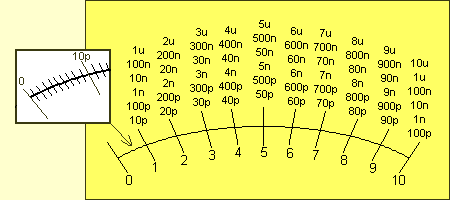

The 6 ranges for the Capacitance Meter.
The 0 - 10 on the scale can be divided into 10 parts: 1p, 2p, 3p etc.

USING THE CAPACITANCE METER

The capacitance meter is very simple to use. Simply connect the two leads to a multimeter and insert a capacitor in the test pins.
The 10v scale is divided into 100 parts and this makes it easy to read the 1p to 100p range. The other ranges need a little bit of assistance and we have provided a diagram above to help you read each of the scales. Some of the scales overlap slightly and it is always best to get a reading on the largest scale.

IF IT DOESN’T WORK

There’s nothing worse than a piece of test equipment failing to work or being inaccurate. After all, we use it at the most desperate of times and it has to be reliable.
That’s why we have made this project compact, with its own supply. Simply by pressing the button you can see if the battery has sufficient voltage to power the project.
But if it fails to work after construction, here is the process to follow:
First press the button and make sure the LED comes on.
If it doesn’t, measure the voltage of the battery and the track-work around the switch and 100R resistor for shorts or broken tracks. Measure the voltage before the 100R and after it. If it is 12v after the resistor, the LED or zener is faulty or around the wrong way. The voltage on the chip should be very close to 10v.
The next step is to short between the two terminals of the test socket. This will cause full deflection of the meter. If this does not happen, the fault will lie in the second and third inverters or the meter. If the LED goes out when you short the terminals on the 10u scale, the battery will be getting very weak.
If it goes out on any of the other scales, the fault will lie in the value of the charging resistors on pin 3 or the placement of the diode on pin 3.
You must get full scale deflection of the meter, or at least near full scale deflection before proceeding further.
To check the inverter between pins 3 and 4, short the test pins with a jumper lead and place another jumper between pin 5 and the positive rail.
This should provide full scale reading, but if it doesn’t, place a third jumper between pin 6 and the negative rail.
This has to work as we are placing the meter directly across the power rails and if it is not deflecting, the leads are faulty or the multimeter is on the wrong scale.
We can now start to work backwards, firstly removing the jumper on pin 6. Each time you take a measurement, press the button for only a second so that you don’t use up too much of the battery.
Output pin 6 should be low, but if it is not, the inverter may be damaged or the chip may not be getting its voltage from the supply.
A damaged inverter can be replaced by one of the other 3 inverters in the chip and this simply means wiring up one of them to the meter.
Now remove the jumper on pin 5 and place it on pin 4. Turn the pot to minimum resistance and the meter should provide full scale deflection. If it doesn’t, the mini trim pot is faulty.
Remove the jumper on pin 4 and we are back to where we started.
If the meter doesn’t give a reading, the inverter between pins 3 and 4 will be faulty and can be replaced with one of the spare inverters in the chip.
We have now checked about half the circuit.
The only section remaining is the mark-space ratio oscillator. This is designed to produce a very short low and a long HIGH. When the output is HIGH the diode between pins 2 and 4 does not have any effect of the second section where the test capacitor is charging.
However when the output goes LOW, the diode discharges the test capacitor.
This section is very difficult to test as it is operating at a high frequency and is classified as a high impedance stage.
This means you cannot put any load on the components otherwise the circuit will stop operating.
The only thing you can do is connect a LED from the bottom of the 1k5 resistor to pin 3 of the chip and change the range switch from 100p to 1n or 10n and note the very slight glow from the LED. It is responding to the 1% of the time when the output is low. If the LED is bright, there will be a short or leak from pin 3 to the earth rail.
This could be a short under the board or the fact that the mark-space ratio oscillator is operating on a 50% duty cycle.
This could be due to the absence of the diode in series with the 2k2 resistor.
If the 1n capacitor is shorted with a jumper lead when the range switch is on the low capacitor range, the LED will go out.
This is the best we can do with simple equipment to show the oscillator is working. Further tests can be made with a CRO (Cathode-Ray Oscilloscope) or audio amplifier to see or hear the effects of the oscillator.

CONCLUSION

The Capacitance Meter can be used as-is or fitted into a small jiffy box and added to your other test equipment.
I am sure you will find it handy for those times when you need to know a value of capacitance.

CAPACITOR CODES

Identifying capacitors has always been a problem, mainly due to the wide variety of shapes and sizes on which the numbers must be printed.
But very soon this should be at an end.
A universal 3-digit code has been developed to cover the entire range from .1p to 1 Farad and this code is very easy to follow.
The main reason why a compact code is needed is due to the size of some capacitors - such as monoblocks (monolithic), ceramics and chips - they are very small. There is not enough room for more than three digits and this is why the code is so good.
In the past, capacitors have been marked in a variety of ways and have included the disastrous decimal point and sometimes lots of zeros. If you have ever tried to decide if a mark on a capacitor is a decimal point or a spot of dirt, you know what I mean. It is absurd to use a decimal point in such a vital place.
The 3-digit code does away with the decimal point and uses either a number or letter instead. There are two forms of the 3-digit code. One uses three digits and the other uses two digits and a letter. An example of this is a 5p6 capacitor or 10p or 47p.
You will see how the first type is written by reading through the table below, they are all “p” (puff) values.
At the moment only about half the manufacturers are using this code and a couple of conflicts exist. Take for instance a 100p ceramic. It can be marked “100,” or “101” whereas “100” on a chip capacitor is 10p. So be careful.
If you are working with some of the older style equipment, you will find values such as .0022 or 2200 on mica capacitors and 4700 or 47000 on polyester capacitors, making it a logistic nightmare to work out the actual value. All our circuit diagrams and discussions use the easy to understand code and it corresponds to the coding on the latest micro-components.
If you want to know where to start when memorising the table, start with 102 = 1n, 103 = 10n and 104 = 100n. All the other values fit into these three ranges, (or a higher or lower range).
The most essential thing is to put a capacitor into the correct range. For instance, 222 must be put into the “n” range and then you say it’s “2n2.‘”
We don’t have trouble with capacitor codes because we take them from large bins that have clear identification. But when it comes to a bundle of capacitors in a kit, I know the problems many constructors will be having. We have them ringing all the time!
If you are having trouble reading capacitor values, build the CAPACITANCE METER project. That’s why we designed it.

VALUEVALUE WRITTEN ON THE COMPONENT
0.1p0p1
0.22p0p22
0.47p0p47
1.0p1p0
2.2p2p2
4.7p4p7
5.6p5p6
8.2p8p2
10p10 or 10p, 100 on chip caps
47p22 or 22p, 220 on chip caps
56p47 or 47p, 470 on chip caps
100p56 or 56p, 560 on chip caps
220p100 on 101, 101 on chip cap
470p220 or 221, 221 on chip cap
560p470 or 471, 471 on chip cap
820p560 or 561, 561 on chip cap
1,000p (1n)820 or 821, 821 on chip cap
2200p (2n2)222 ” ” ” ” ”
4700p (4n7)472 ” ” ” ” ”
8200p (8n2)822 ” ” ” ” ”
10n103 ” ” ” ” ”
22n223 ” ” ” ” ”
47n473 ” ” ” ” ”
100n104 ” ” ” ” ”
220n224 ” ” ” ” ”
470n474 ” ” ” ” ”
1u105 ” ” ” ” ”
2.2u
4.7uThese electros
10uusually have
22utheir value marked
47uin u (on the body), and are
100uquite easy to identify.
220u
470u
1,000uc100,000u and higher!

Finally, mF values

Some magazines use millifarads for the value of large capacitors such as electrolytics. I don’t like to use millifarad values because no capacitors are marked in millifarads and it only confuses the issue.
1mF = 1,000u. If you saw 1mF in a circuit you may confuse it with 1u. Similarly 100mF is equal to 100,000u and a mistake could easily be made. Stick to u, (microfarads) even when it comes to a 100,000u electrolytic. This way you can’t make a mistake.
