4 Digit Up or Down Counter
Colin Mitchell
Colin Mitchell
November 29, 2014
Make sure to subscribe to our newsletter and be the first to know the news.

Table Of Contents

01
Construction
02
4 Digit Counter

4 Digit Up/Down Counter with PIC16F628 $25.00 plus $6.50 postage.

To order the kit, [send an email](mailto:colin@elechelp.com?Subject=Buying the 4 Digit Up/Down counter&Body=Please e-mail how to pay for the 4 Digit Up/Down counter $25.00 plus $6.50 postage by air mail to my country:****___**** and send details of how I can pay for it. My name is:____**)** to us and we will reply with the details of how to order etc.

Just the PC board: $6.00 plus $4.00 post.
Just the micro: $6.00 plus $4.00 post.

This 4 Digit Up/Down Counter has all the features you need. And they are all ON THE PC BOARD.
This project is as old as Methuselah but it’s very handy for anyone producing or packaging a product or “counting their chickens.”
You don’t need any extra relay or buzzer and the up/down switches have inputs for remote switching as well as a 10-pin connector so the project can be mounted on a cabinet.
It also has a very easy to use PRE-SET using 2 buttons, to quickly load any value.

  • Simply press SET and the display will show - - - -
  • Use the INC button to increment the units display and press SET. The tens display can now be incremented, then the hundreds and thousands.
  • Press SET and the display will show 0000 and the buzzer will screech.
  • Press DOWN and the preset value will appear. When the count reaches 0000 the buzzer will sound and the relay will activate during the time when 0000 in on the display.
  • The counter will then show the preset value when the DOWN button is pressed and counting can continue until the display is zero.

There is almost nothing else to know as all the “workings” are contained in a micro and if you want to learn about programming this microcontroller, we have separate projects to get to started.
In addition, we show how to create your own PC boards using the simplest software package that “doesn’t fall over” and doesn’t frustrate.
Don’t even attempt to put this project together unless you have a fine tipped, temperature controlled soldering iron, tweezers, fine solder and a steady hand.

Everyone I have given prototypes to have enjoyed the surface-mount components and I have to admit it is the most rewarding part of construction. Once you go to surface-mount - you never go back.

Logic Probe Test Points have been added to the latest batch of boards as these should be included so you can check the running of the program and for test purposes.
All the testing of the project will be covered in future articles after we present two pieces of TEST GEAR - a LED tester and LOGIC PROBE.

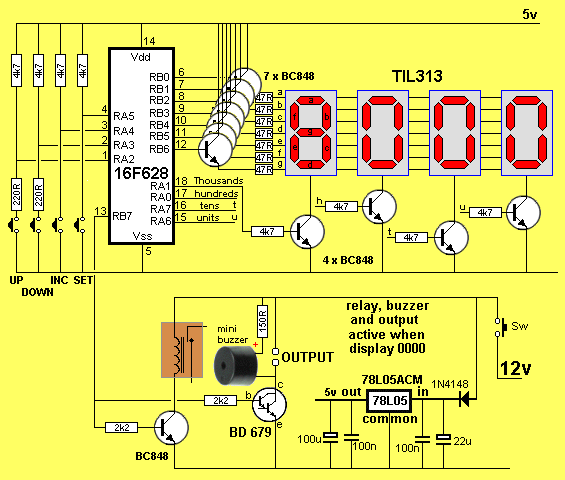

The 4-Digit Up/Down Counter Circuit with Pre-set

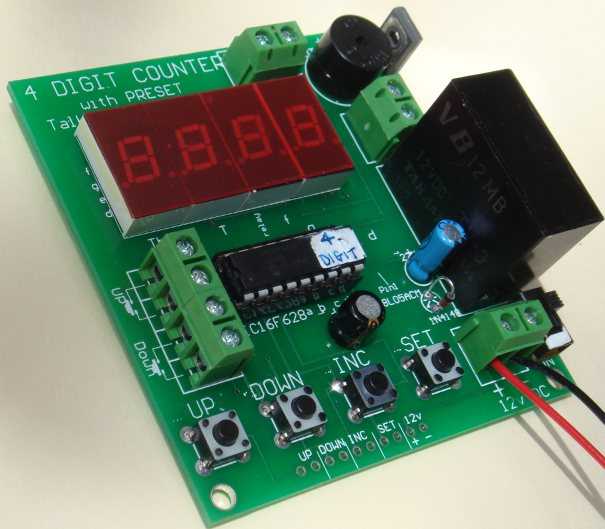

4Digit Iso

  • Up/Down can be controlled remotely and the buzzer sounds when the display is 0000.
  • All the switches and power can be taken to a control panel via the pins on the bottom of the board.

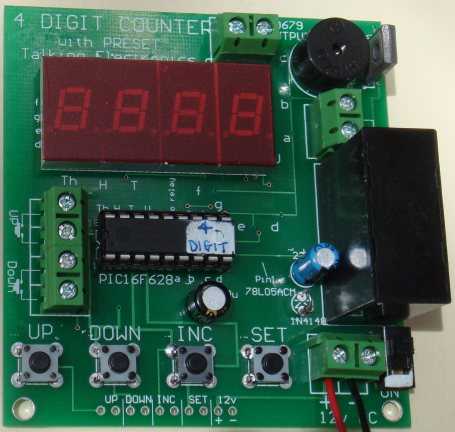

4Digit Top

  • The project uses a PIC16F628 chip and the drive-lines are connected to transistors to produce a bright display.
  • All the components are on the underside of the board.

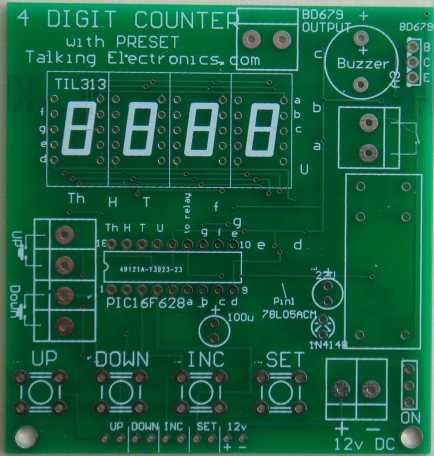

PCB Top

  • The top output has 12v on the left output and the right output is connected to the BD679 transistor.
  • You can place a load on these connections up to 2 amp - the BD679 will carry up to 8 amp if it has a large heatsink.
  • The letters on the board refer to the display segments and the surface-mount transistors driving each segment.
  • These have been added to assist with servicing.

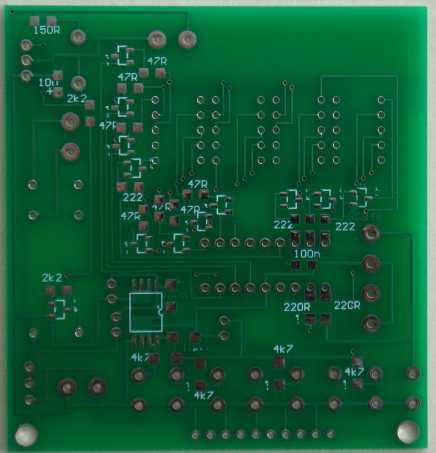

PCB Under

  • The underside of the board has all the surface-mount components for driving the display at high brightness.
  • We have not relied on the 20mA output of the chip to drive the segments.
  • The 78L05ACM is a surface-mount regulator: 5v, 100mA**

Construction

Start by fitting the surface-mount transistors, resistors and capacitors, as well as the 5v regulator and 10u tantalum capacitor, to the underside of the board.
Then fit the 4 displays, terminal bocks, tactile switches, 18 pin IC socket, 2 electrolytics, BD679 transistor, 1N4148 diode, on/off switch and finally the relay. The 10-pin connector can be fitted if you are mounting the board and using remote switches.
Fit the PIC microcontroller chip containing 4-Digit routine, connect 12v to the input terminals and switch the project ON.
The display will show 0000 and the buzzer will sound.
Use the SET button to create a pre-set value and press the DOWN button to start the count.
The buzzer will sound when the display reaches 0000. The buzzer is classified as an active device as it has its own internal oscillator, coil and metal diaphragm to produce an output when DC is applied. It is called an electromechanical buzzer.

4 Digit Counter

PARTS LIST

$25.00 plus $6.50 post

[Order a kit](mailto:colin@elechelp.com?Subject=Buying the 4 Digit Up/Down counter&Body=Please e-mail how to pay for the 4 Digit Up/Down counter $25.00 plus $6.50 postage by air mail to my country:****___**** and send details of how I can pay for it. My name is:____)

  • 7 - 47R resistors (470)
  • 1 - 150R SM resistor (151)
  • 2 - 220R SM resistors (221)
  • 6 - 2k2 SM resistors (222)
  • 4 - 4k7 SM resistors
  • 3 - 100n SM capacitors
  • 1 - 10u SM electrolytic
  • 1 - 22u electrolytic 16v
  • 1 - 100u SM electrolytic 16v
  • 1 - 1N4148 diode
  • 12 - BC848 SM transistors
  • 1 - BD679 Darlington transistor
  • 4 - TIL 313 displays or equiv
  • 1 - TV-3 12v DPST relay
  • 1 - 78L05ACM 5v regulator IC
  • 1 - PIC16F628 microcontroller (4 Digit program)
  • 1 - 5v buzzer
  • 1 - 18 pin IC socket
  • 5 - 2-pin terminal blocks
  • 1 - 10 pin 90° double-ended connector strip
  • 4 - tactile buttons
  • 1 - mini slide switch
  • 30cm very fine solder
  • 1 - 4 Digit Counter PCB
