2Digit up/down Counter
Colin Mitchell
Colin Mitchell
September 10, 2009
Make sure to subscribe to our newsletter and be the first to know the news.

Table Of Contents

01
THE LAYOUT
02
THE ANTENNA
03
THE TRANSMITTER
04
THE RECEIVER
05
CONSTRUCTION
06
BUILDING THE TRANSMITTER
07
BUILDING THE RECEIVER
08
Connecting the receiver to the 2-Digit Counter
09
PARTS LIST for RF Link
10
GOING FURTHER

See more projects using PIC micros:
Elektor,EPE,Silicon Chip

2 Digit Up/Down Counter with PIC12F628 and prototype PC board $25.00 plus $5.00 postage.
To order the kit, [send an email](mailto:colin@elechelp.com?Subject=Buying components for the 2 Digit Up/Down counter&Body=Please e-mail the cost of components for the 2 Digit Up/Down counter on prototype PC board for $25.00 plus postage by air mail to my country:****___**** and send details of how I can pay for it. My name is:____**)** to us and we will reply with the details of how to order etc.
RF section consists of Transmitter and Receiver: $15.00 plus $5.00 postage.

  • Page 1 2 digit Up/Down Counter using PIC16F628
  • Page 2 adding Dice and Random Number (PIC16F628)
  • Page 3 2 digit Up/Down Counter using PIC12F629
  • P4 adding RF Link to PIC12F629 version
  • Page 5 Car Gears Up/Down counter

Turn the 2-Digit Up/Down Counter into a remote-controlled
counter by adding this RF link.

This section describes an RF link consisting of a 4 channel transmitter on a small PC board and a receiver on another small PC board that connects to the Up/Down Counter.
The 4 buttons are: Up, Down, Reset the number on the display and
Toggle the display On/Off.

The Up/Down Counter circuit can be seen on P3 of this article and uses a PIC12F629 to drive 28 SM LEDs arranged as two 7-segment displays.
This RF link can be used separately however its output consists of 4 frequencies: approx 500Hz, 550Hz, 660Hz and 1kHz and these have to be decoded (detected by a “detection circuit” or by the software in the PIC micro) so that each frequency turns on a particular output. If you don’t use our PIC micro (and the program in it), you will need to design a fairly complex circuit to decode these frequencies and produce individual outputs.

THE LAYOUT

When working with RF circuits (anything above about 1MHz), you have to be careful with the layout if you want the circuit to have the same frequency as shown on a circuit diagram and have the same performance (such as range and stability).
As the frequency gets higher, the length of the leads of the components have an effect on the performance and also the frequency.
There is also another thing to remember.
For a circuit to “push” energy into an antenna, it must have a firm base.
Look at it this way. You are standing on a trampoline and want to throw a bowling ball (a very heavy ball) into a netball hoop. As you try to throw it up, you sink into the trampoline and it will be very difficult to “score.”
The same with a transmitter circuit.
As the circuit tries to push energy into the antenna, from say an inductor, the other end of the inductor must be held rigid, otherwise the energy will go out both directions and very little will be “sent to the antenna.”
This means you need to have a good ground plane and this means keeping everything tight, through the power leads, to the battery as the battery will provide the major part of the ground plane.
We have used surface-mount components in this project and this creates a very tight circuit due to the minute nature of each of the components. If you use ordinary leaded components on a prototype board, the frequency and performance may be different to our design.
The fact that SM components are very small and close together produces a higher frequency and higher output. This is something you have to remember.

A transmitter circuit is fairly easy to design and test as you can easily detect the output frequency.
But a receiver is more difficult. Sometimes you can match the oscillator components in the receiver with those of the transmitter, but the actual frequency of oscillation depends on all the surrounding components and that’s why the coil values are different in the transmitter and receiver.
After a lot of experimenting, we chose the receiver circuit shown in the diagram. Some receiver circuits did not detect the transmitter, even though the receiver was tuned to the correct frequency.
Getting an RF link to work is much more complex than you think.
That’s why you have to build the circuits shown in the diagrams.
We have chosen 27MHz so you can test the transmitter by using a simple 27MHz Walkie Talkie as a piece of test gear.
This will allow you to get the transmitting frequency correct and from there you can build the receiver.

THE ANTENNA

Nothing beats a long antenna, such as a full-wave antenna, but if space is limited, a “cut-down” version has to be used.
While specially designed “half-wave, quarter-wave” etc antennas are nearly as good as a simple piece of “long wire,” they are more expensive and need skill to design and get working correctly.
We added an inductor (such as those on simple walkie-talkies) to the antenna of the transmitter and also the receiver and tried every combination.
We achieved exactly the same range as a straight piece of wire.
I am not saying the inductor will not work in some instances, but it did not increase the range in our prototype.
Now we come to the point of this discussion.
The length of the antenna is important. It determines range.
A full-length antenna for 27MHz is approx 11 metres long, so any antenna shorter than this is going to have a “mis-match” and not be fully efficient. The 30cm antennas we are using are highly inefficient and that’s why increasing the length, increases the range appreciably.
Our tests showed that increasing the length by 50%, increased the range over 200%.

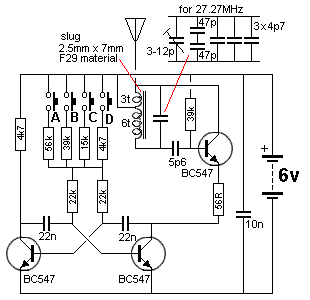

THE TRANSMITTER


4-Channel 27MHz Transmitter

The transmitter consists of three transistors in two building-blocks.
The first section is the multivibrator that is turned on when one of four buttons is pressed.
These buttons determine the frequency of oscillation as they provide the timing current for the two 22n capacitors. The operation of a multivibrator has already been covered in our Electronics Course and basically one transistor is fully turned ON while the other is fully OFF and the two swap conditions very quickly. When the right-hand transistor is turned on, it takes the 56R to the negative rail and this turns on the RF stage.
The tuned circuit made up of the tapped coil (and capacitor across it), gets a jolt of current via the 3 turn winding and this sets it in oscillation.
Exactly how it gets this jolt is fairly complex. The emitter of the RF oscillator transistor is taken to 0v and the base is turned on via the 39k. This causes the transistor to draw current via the collector. The collector current flows through the 3t winding and this produces flux in the core of the slug. The flux cuts the 6t winding and a voltage is produced by this winds (as well as the voltage across the 3t) to deliver a voltage across the capacitor. At the same time a small amount of the voltage is passed to the base of the transistor via the 4p7 to turn the transistor on more.
This causes more current to flow in the 3t and and the process increases. All this happens in less than a microsecond and a point comes when the transistor cannot turn ON any more with the amount of energy being supplied by the 4p7. The current does not increase though the 3t winding but remains steady at a DC level and the flux in the core changes from expending flux to stationary flux.
Stationary flux does not deliver a voltage to the 6t winding and the voltage from this winding ceases. This means the energy delivered to the transistor via the 4p7 ceases.
This turns the transistor off slightly and the current through the collector circuit reduces. This causes a reduced current to flow in the 3t and now the flux in the core becomes a contracting flux. This puts a voltage on the 6t winding that is in the opposite direction to previously and now the voltage on the base of the transistor is less than before and the transistor turns off more.
This causes less current to flow in the collector circuit and the condition continues until the transistor cannot turn off any more via the energy from the 4p7. The capacitor across the coil gets charged during the fist parts of the cycle and the rate at which it charges creates a length of time. And the time it takes to discharge and charge in the opposite direction creates the first half cycle. The time it takes to discharge and charge in the opposite direction creates the second haft cycle.
The frequency of oscillation depends on the inductance of the coil and capacitance of the capacitor across it. The fixed capacitance is actually 36p and this was made up of a number of surface mount capacitors as these were the only values available. You could use 33p or 39p.
No on-off switch is required as no transistor consumes any current when the base of the two multivibrator transistors are not connected to the positive rail.
The way the circuit works is this:
When the right-hand transistor in the multivibrator turns on, the RF stage turns on and produces a “Carrier.” This is a signal with a frequency of 27MHz. This is picked up by a receiver as “quiet.” In other words, the background noise is removed and the output is silence.
When the RF stage is turned off, the background noise is detected. In other words it is the background noise that is detected and not any actual tone. We turn the background noise on and off and this is detected by the receiver.

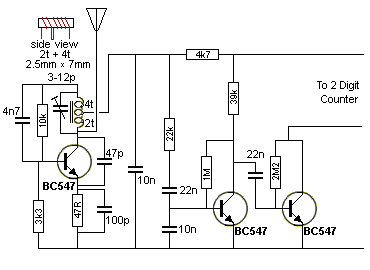

THE RECEIVER


27MHz Receiver

The receiver is a module connected to the 2-Digit Up/Down counter. The PIC12F629 microcontroller does all the work of decoding the 4 individual frequencies and produces a result.
The receiver is a very clever design.
It is actually a transmitter - a very weak transmitter and it sends a signal to the surroundings. When a signal of the same frequency is present in the surroundings, the stage finds it harder to transmit its signal and a higher current is taken by the stage.
This increase causes a voltage drop though the 4k7 load resistor and thus an amplitude is produced at the point where the 22k has been connected.
The amazing thing is the circuit needs the 10n capacitor to operate correctly and when it is set up, a waveform can be clearly detected through the 22k resistor.
The 22n is a coupling capacitor and the 10n on the base of the second transistor removes more of the “hash” (noise) from the received signal.
All this attenuation reduces the wanted signal and we need another stage to amplify the signal to a point where it is large enough to trigger a microcontroller. The third transistor has been biased ON very lightly by the 2M2 base resistor and this allows the transistor to provide a large amplitude.
The winding of the oscillator coil is very critical as even half-a-turn will change the frequency at which the circuit wants to operate and you will never be able to pick up the transmitter.
Obviously all the parts for commercial walkie-talkies are pre-made to strict tolerances and that’s why they work when tested.
When you are copying a design with your own components, it is important to get everything as close as possible to the original, to be sure it will work.
I could say the rest of the components are not critical but that is not true. At first glance you would think the values could be changed but if you want the sensitivity we achieved from the prototype, you need to use the same values.
The signal from the receiver is passed to the PIC microcontroller where it looks for a HIGH from the receiver then looks for a LOW and then a HIGH. If this is detected within a time-frame, the program considers a signal is present and it repeats the detection, taking more-accurate measurements.
The signal processing is done while one of the displays is illuminated and thus the detection does not interfere with the illumination of the display.
The four buttons are:
Up
Down
Reset the number on the display
Toggle the display On/Off

According to the frequency of the signal, the program will execute an outcome.

CONSTRUCTION

Construction of this project is not for beginners. The parts are placed on a prototype board and you need to be competent at soldering as well as being able to work out the placement of the components. We have provided a layout diagram and this needs to be followed carefully to avoid making a mistake.
Soldering surface-mount components is not easy and the biggest problem is identifying the capacitors. They are not marked and the size of the component is no indication of their value.
The capacitors have been placed in a strip with a black band at one end. This indicates the lowest value then they increase in value according to the diagram shown below.
Remove one component at a time and solder it in place so you don’t get any mixed up.
Use a very fine tipped constant-temperature soldering iron set to 360°C and the fine solder supplied in the kit.

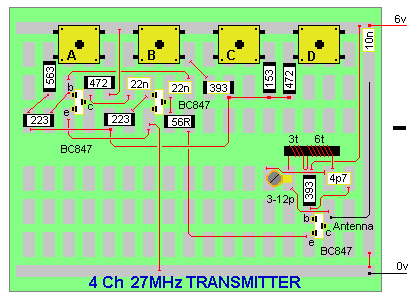

BUILDING THE TRANSMITTER

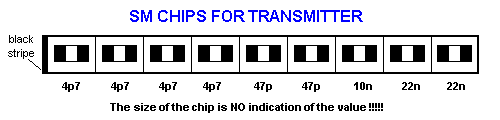

The surface mount capacitors are not identified in any way. They are supplied in a strip with a black strip at one end and this indicates the lowest value.
Take one capacitor from its carrier and fit it to the board before removing the next.
Some capacitors are large and others are very small but the size is no indication of the value.

BUILDING THE RECEIVER

The receiver is built on a 20 pin surface mount PC board but almost any board will be suitable.
The power for the circuit comes from the 2-Digit Up/Down counter module and the signal generated by the receiver board is passed to the PIC chip for processing.
The collector load resistor for the second AF amplifier is fitted to the 2-Digit Up/Down counter module.
The only component that need careful attention is the oscillator transformer. Even though it appears as a single winding, since it is centre-tapped, it has a turns-ratio between the collector circuit and the base circuit and its overall inductance needs to be accurate so the circuit will oscillator at 27.2MHz. We already explained the fact that the circuit is a very weak oscillator and when the same frequency is present in the surroundings, the current taken by the circuit will change and this is passed to the Audio Frequency stages for amplification.

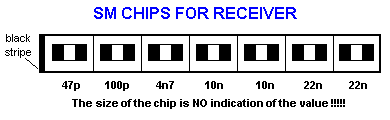

The surface mount capacitors are not identified on the components. They are supplied in a strip with a black strip at one end and this indicates the lowest value.
Take one capacitor from its carrier and fit it to the board before removing the next.
Some capacitors are large and others are very small but the size is no indication of the value.

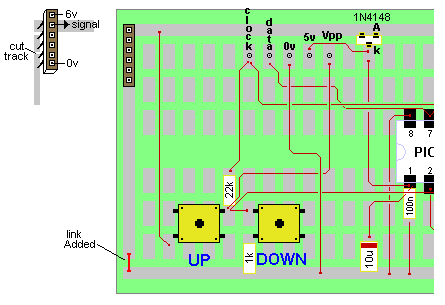

Connecting the receiver to the 2-Digit Counter

The two buttons on the 2-Digit Up/Down counter module are not used when the receiver module is connected via the 5-pin plug-and-socket arrangement.


2 Digit Up/Down Counter and 6-pin connector

The files:

The program below is the assembly program. This is for viewing ONLY. To modify the program you will need to load this file: 12F629Counter.asm into NotePad2 and make the changes.
The .asm is then compiled via MPASM to produce a .hex file for PICkit-2.

Set up your desktop as follows, with a folder called PICkit-2 files. Inside this folder you can have other folders such as PIC12F629 Counter; then an icon for MPASM and an icon for PICkit-2:

Icons

 ;2Digit Counter   12F629.asm
    ;  13-6-2009


status
    retlw   00

show03
    bsf status, rp0     ;Bank 1
        movlw   b'00010001' ;Set TRIS  to show seg A & C
    movwf

show80
    bsf status, rp0     ;Bank 1
        movlw   b'00100000' ;Set TRIS  to show seg A & C & E
    movwf   TRISIO
    bcf status, rp0 ;bank 0
    movlw   b';unit display value will return in w
    movf    tens,0      ;copy tens value into w
    call    table2      ;tens display value will return in w
    bsf status, rp0     ;Bank 1
        movlw   b'11111101' ;Set TRIS
    movwf   TRIS;Clear Up repeat flag
    clrf    FastCount
    goto    Main

        ;oscillator calibration
    call    03ffh
    movwf   OSCCAL

    end

TRANSMITTER

  • RESISTORS (All surface mount 1/10th watt)
    • 1 - 56R marked as 470
    • 2 - 4k7 ” ” 472
    • 1 - 15k ” ” 152
    • 2 - 22k ” ” 223
    • 2 - 39k ” ” 393
    • 1 - 56k ” ” 563
  • CAPACITORS
    • 1 - 3-12p air trimmer
    • 4 - 4p7
    • 2 - 47p
    • 1 - 10n surface mount
    • 2 - 22n surface mount
  • SEMICONDUCTORS
    • 3 - BC847 - surface mount (1F)
  • OTHER
    • 20cm - 0.5mm wire for antenna
    • 1 - 2.5mm x 7mm F29 slug
    • 20cm - 0.28mm enamelled wire
    • 10cm fine tinned copper wire
    • 4 - tactile switches
    • 1 - 30cm fine solder
    • 1 - 4 AAA cell battery box
    • Experimenter PC Board

RECEIVER

  • RESISTORS (All surface mount 1/10th watt)
    • 1 - 47R marked as 470
    • 1 - 3k3 ” ” 332
    • 1 - 4k7 ” ” 472
    • 1 - 10k ” ” 103
    • 1 - 22k ” ” 223
    • 1 - 39k ” ” 393
    • 1 - 1M ” ” 105
    • 1 - 2M2 ” ” 225
  • CAPACITORS
    • 1 - 3-12p air trimmer
    • 1 - 47p surface mount
    • 1 - 100p surface mount
    • 1 - 4n7 surface mount
    • 2 - 10n surface mount
    • 2 - 22n surface mount
  • SEMICONDUCTORS
    • 3 - BC847 - surface mount (1F)
  • OTHER
    • 4 - 5 machine pins on strip
    • 30cm - fine solder
    • 20cm - fine enamelled wire
    • 20cm - 0.5mm wire for antenna
    • 1 - 2.5mm x 7mm F29 slug
    • 20cm - 0.28mm enamelled wire
    • 10cm fine tinned copper wire
    • Experimenter PC Board (20pin SM PC)

GOING FURTHER

You can change the function of any button by creating a sub-routine and calling it when the button is detected.

To order the kit, [send an email](mailto:colin@elechelp.com?Subject=Buying components for the 2 Digit Up/Down counter&Body=Please e-mail the cost of components for the 2 Digit Up/Down counter on prototype PC board and 5/6 pin adapter for $23.00 posted by air mail to my country:****___**** and send details of how I can pay for it. My name is:____**)** to us and we will reply with the details of how to order etc.

If you have any questions on how the circuit works or how to add different features, [email the author](mailto:colin@elechelp.com?Subject=Query on 2 Digit Up/Down counter&Body=Please let me know the following:****___******)** and your answer will be posted here:

Page 1 Page 2 Page 3 P4(RF Link) Page 5

The next page describes the up/down counter displaying the “gear” for motorcycles and racing cars.
