THE FET

The Field-Effect Transistor is just like the ordinary transistors we have studied.
It has three leads and is connected just like an ordinary transistor.
The only difference is the name of the leads and the voltage on the “base.”
The “base” is now called the “GATE” and nothing happens on the GATE until a higher voltage is reached.
The voltage on the BASE of an ordinary transistor needs to be 0.55v before the transistor starts to conduct and at 0.7v it is fully turned ON (can be up to 0.9v).
For a FET, the voltage on the GATE is HIGHER. It needs to be 3.5v for some FETs and as high as 6v for others.
There are two other slight differences between a FET and an ordinary transistor:
The voltage on a FET does not need any current. For an ordinary transistor, CURRENT is needed into the base and the transistor will amplify this about 100 - 200 times to produce collector current.
Since NO CURRENT is needed on the GATE of a FET, the current through the source-drain can be as high as the device will allow. This is the first advantage of a FET.
There is a very small “gap” or “range” where the voltage on the GATE starts to turn the FET ON (from zero output current; gradually, to full output current) and if you work in this range, the FET becomes an audio amplifying device - linear amplifying device.
Every FET is different and the voltage range is quite considerable.

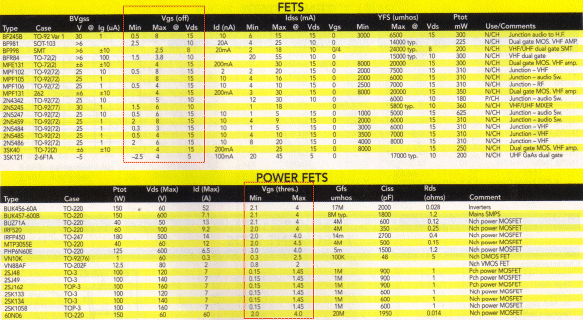

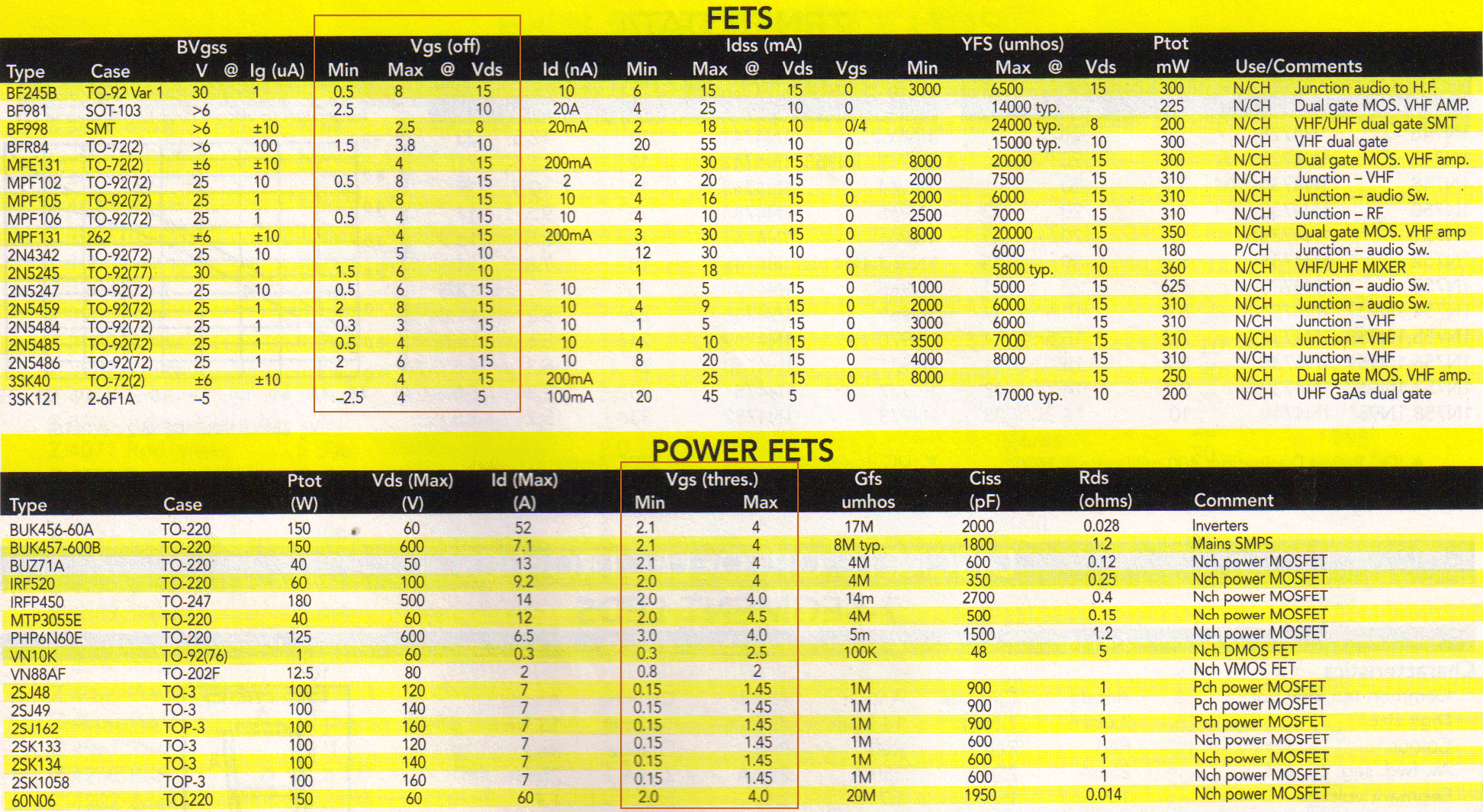

Refer to the following data sheet. The red frames contain the data for the voltage on the gate to turn the FET on. These voltages are only a guide and you need to build a circuit and test the device to determine the actual values:


click image for enlarged view

However the FET has high losses when operating in this linear mode and the current it can handle is limited.
When a FET is used in SWITCHING MODE (called Digital Mode) the losses in the FET are minimal and the device can handle very high currents.

The second advantage is the voltage-drop across the DRAIN-SOURCE terminals is very low and this means very little heat is generated (lost) in the device and they can deliver (handle) a very high current.

If you think of a FET along these lines, you will not be “mystified.” (If you can achieve the relatively high input voltage needed, you can use a FET.)

Here is a more-technical description of a FET:

The Field-Effect Transistor provides an excellent voltage gain with the added feature of a high input impedance. There are also low-power-consumption configurations with good frequency range and minimal size. JFETs, depletion MOSFETs, and MESFETs can be used to design amplifiers having similar voltage gains. The depletion MOSFET (MESFET) circuit has a much higher input impedance than a similar JFET configuration.

Whereas a BJT device controls a large output (collector) current by means of a relatively small input (base) current, the FET device controls an output (drain) current by means of a small input (gate-voltage) voltage. In general, therefore, the BJT is a current-controlled device and the FET is a voltage-controlled device. In both cases, however, the output current is the controlled variable. Because of the high input characteristic of FETs, the ac equivalent model is somewhat simpler than that employed for BJTs. Whereas the BJT has an amplification factor, b (beta), the FET has a transconductance factor _g_m.

The FET can be used as a linear amplifier or as a digital device in logic circuits. In fact, the enhancement MOSFET is quite popular in digital circuitry, especially in CMOS circuits that require very low power consumption. FET devices are also widely used in high-frequency applications and in buffering (interfacing) applications.

Although the common-source configuration is the most popular, providing an inverted, amplified signal, common-drain (source-follower) circuits providing unity gain with no inversion and common-gate circuits providing gain with no inversion. Due to the very high input impedance, the input current is generally assumed to be 0µA and the current gain is an undefined quantity. Whereas the voltage gain of an FET amplifier is generally less than that obtained using a BJT amplifier, the FET amplifier provides a much higher input impedance than that of a BJT configuration. Output impedance values are comparable for both BJT and FET devices.

A MOSFET is a transistor. It is a Metal Oxide Field Effect Transistor.
Here are the symbols for FETs and MOSFETs:

Here is an animation showing how to turn on an N-channel MOSFET:


MOSFET turns ON when gate-to-source
is more than about 2v (2v to 5v)

The easiest way to understand how MOSFETs work is to compare them with PNP and NPN transistors and show them in similar circuits. The advantage of a MOSFET is this: It requires very little current (almost zero current) into the gate to turn it ON and it can deliver 10 to 50 amps or more to a load.
A MOSFET can be used in place of an ordinary transistor (called a bipolar junction transistor, or BJT) providing one slight difference is taken into account.
An ordinary NPN transistor will turn ON when the base voltage is about 0.65v more than the emitter but a MOSFET needs the gate terminal to be at least 2v to 5v, (depending on the type of MOSFET) above the source voltage.

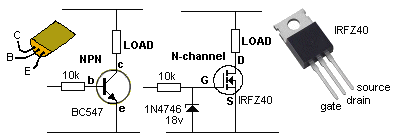

Here is a comparison between an NPN transistor and N-channel MOSFET:

A zener must be added to the gate of a MOSFET if the gate voltage comes from a supply that is above 20v.
A normal transistor is a current amplifying device.
For a load current of 100mA, the base current for a BC547 will need to be about 1mA.
This means it has a current gain of about 100.
A MOSFET is a voltage controlled device and the current it will handle depends on its physical size and the way it is constructed. You cannot change this parameter.
For a load current up to about 35Amp, the gate current for a IRZ40 will be less than 0.25mA. When the gate voltage is 3v to 4v higher than the source, it turns on and the resistance between source and drain terminals is about 0.028 ohms. It will handle up to 35 amps.
The load determines the current through the MOSFET (not the MOSFET) and if it is less than 35 amps, a IRFZ40 is suitable for the application.

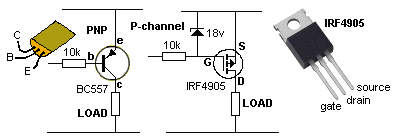

Comparison between a PNP transistor and P-channel MOSFET:

When the gate voltage is 4v LOWER than rail voltage, the MOSFET turns ON. The 10k resistor on the base of the transistor is needed to prevent the base current exceeding the amount of current needed by the transistor to deliver current to the load. However the 10k resistor on the gate of the MOSFET is not needed. Providing the voltage (up to 18v) on the gate rises and falls quickly, the MOSFET will not get hot. The critical period of time is the 0v to 3v section of the waveform as this is when the MOSFET is turning on.

PUSH PULL

MOSFETs can be placed in push-pull mode, just like PNP and NPN transistors.
They must be connected correctly to prevent damage.

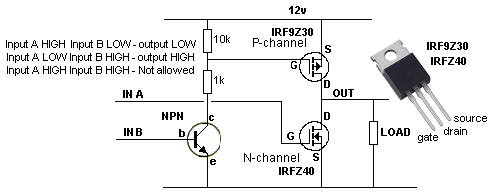

In the following circuit you can see the transistors and MOSFETs have been connected incorrectly.
For the PNP/NPN transistor circuit, as the input changes from high to low or low to high, both transistors are turned on during the transition. Only one transistor is turned on when the line is high and only the other transistor is turned on when the line is low, but during the transition, BOTH are turned on.
The same applies with the MOSFETs. When the input is at mid-rail, a voltage between gate and source will be produced for both MOSFETs. Since a MOSFET can handle many amps, this will put a short-circuit across the power rail and will cause a lot of damage.


Transistors and MOSFETs will produce short-circuit

The correct placement for the NPN and PNP transistors is shown in the diagram below. The output will rise and fall in harmony with the input, however there will be a small 1v2 gap at mid-rail where the output will not respond as this represents 0.6v for the base-emitter voltage of each transistor. You should not connect two MOSFETs as shown the gap will be 6v as the gate to source voltage for each transistor is about 3v, but you cannot connect the gates of the two MOSFETs because each MOSFET will turn off when the gate-to-source voltage is less than about 3v across these two terminal. This means the output will be 3v less than rail voltage and not go below 3v above 0v rail. Both MOSFETs will not turn on during any part of the cycle and no short circuit will occur, but the output will be less than full rail-voltage swing and the MOSFETs are not being supplied with a gate-to-source voltage that has a guaranteed fast rise and fall time (and the MOSFETs may heat up). This is an unreliable design.


MOSFET output is less than rail voltage

The solution is shown in the diagram below. The transistor configuration will work on ANY rail voltage but the MOSFET “totem-pole configuration” will only work up to 5v. This is due to the characteristics of a MOSFET. The MOSFETs used in this arrangement have a gate-to-source characteristic of slightly more than 3v and do not turn on when the voltage across these two terminals is 3v. This means the supply can be 6v and when the input is at mid-rail, 3v will be across each gate-to-source and neither will be turned on. That’s why TTL logic is limited to 5v operation. The output will be extremely close to rail-to-rail for the MOSFET configuration.


Max voltage for MOSFET arrangement is 5v

For a supply greater than 5v, a different MOSFET configuration must be used to get full rail-to-rail output. The MOSFETs must be turned on individually.

PUSH-PULL USING MOSFETS

The circuit above sinks up to 35A via the N-channel MOSFET and delivers about 18Amp via the P-channel MOSFET. Input A must rise quickly to prevent the MOSFET heating up during the turning-on period. Input A must rise to at least 4v to guarantee the MOSFET turns ON.
Input B must rise above 0.65v to turn the transistor ON. The voltage on the collector of the transistor will fall and this will provide a gate-to-source voltage for the P-channel MOSFET.
Both inputs must not be HIGH at the same time as this will turn ON both MOSFETs and create a short-circuit on the power rail.

The circuit above is much more complex than meets the eye.
To turn on the top N-channel MOSFET, the gate must be taken at least 3v higher than the source because it is a SOURCE FOLLOWER (similar to an EMITTER FOLLOWER). This is equal to Vin + 3v.
How does pin HG get this high voltage?

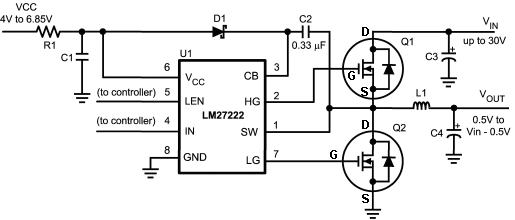

It gets it from a voltage doubling circuit made up of the 0.33u, high speed diode D1 and an oscillator in the chip.
The circuit is a buck converter and will reduce any supply voltage to a lower voltage with very high efficiency. It allows a small “packet of energy” to flow to the Vout terminal via the inductor L1 and this percentage determines the Vout voltage.

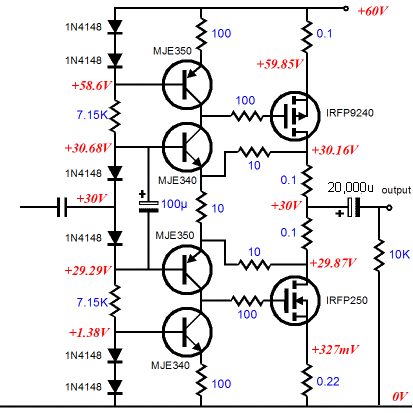

Here is an audio amplifier using PUSH PULL mode to drive a speaker:

The top two transistors are in push-pull mode to turn the P-channel MOSFET on and off very quickly. They speed up the incoming waveform and prevent the MOSFET generating heat during the turning-on process.
The two lower transistors do the same thing.
The diodes and resistors connected to the input form a voltage-divider to correctly bias the push-pull transistors.

H-BRIDGE

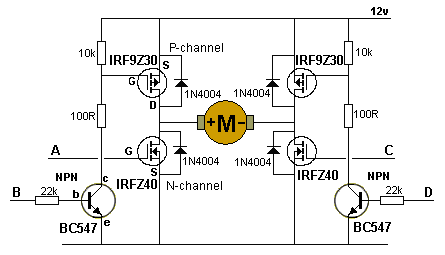

An H-Bridge can be designed using MOSFETs:

Input A HIGH, Input D HIGH - forward rotation
Input B HIGH, Input C HIGH - reverse rotation
Input A HIGH, Input B HIGH - not allowed
Input C HIGH, Input D HIGH - not allowed

The H-Bridge can be designed with two more transistors so that only two input lines are needed.

PWM MOTOR SPEED CONTROLLER

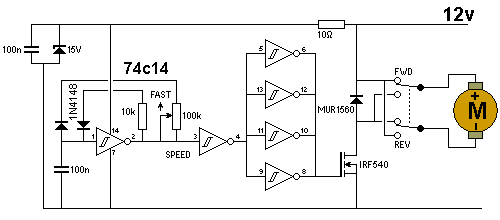

Here is a circuit from a 12v drill. The MOSFET will deliver up to 30Amps.
The frequency of the oscillator is in the range 550Hz to about 6.5kHz, with an off period of about 2.6us.


PWM 12v CORDLESS DRILL MOTOR CONTROLLER

WHY MOSFETs FAIL

There are quite a few possible causes for device failures, here are a few of the most important reasons:

  • Over-voltage: MOSFETs have very little tolerance to over-voltage. Damage to devices may result even if the voltage rating is exceeded for as little as a few nanoseconds. MOSFET devices should be rated conservatively for the anticipated voltage levels and careful attention should be paid to suppressing any voltage spikes or ringing.
  • Prolonged current overload: High average current causes considerable thermal dissipation in MOSFET devices even though the on-resistance is relatively low. If the current is very high and heatsinking is poor, the device can be destroyed by excessive temperature rise. MOSFET devices can be paralleled directly to share high load currents.
  • Transient current overload: Massive current overload, even for short duration, can cause progressive damage to the device with little noticeable temperature rise prior to failure.
  • Shoot-through - cross conduction: If the control signals to two opposing MOSFETs overlap, a situation can occur where both MOSFETs are switched on together. This effectively short-circuits the supply and is known as a shoot-through condition. If this occurs, the supply decoupling capacitor is discharged rapidly through both devices every time a switching transition occurs. This results in very short but incredibly intense current pulses through both switching devices.
    The chances of shoot-through occurring are minimised by allowing a dead time between switching transitions, during which neither MOSFET is turned on. This allows time for one device to turn off before the opposite device is turned on.
  • No free-wheel current path: When switching current through any inductive load (such as a Tesla Coil) a back EMF is produced when the current is turned off. It is essential to provide a path for this current to free-wheel in the time when the switching device is not conducting the load current.
    This current is usually directed through a free-wheel diode connected anti-parallel with the switching device. When a MOSFET is employed as the switching device, the designer gets the free-wheel diode “for free” in the form of the MOSFETs intrinsic body diode. This solves one problem, but creates a whole new one…
  • Slow reverse recovery of MOSFET body diode: A high Q resonant circuit such as a Tesla Coil is capable of storing considerable energy in its inductance and self capacitance. Under certain tuning conditions, this causes the current to “free-wheel” through the internal body diodes of the MOSFET device. This behaviour is not a problem in itself, but a problem arises due to the slow turn-off (or reverse recovery) of the internal body diode. MOSFET body diodes generally have a long reverse recovery time compared to the performance of the MOSFET itself.
    This problem is usually eased by the addition of a high speed (fast recovery) diode. This ensures that the MOSFET body diode is never driven into conduction. The free-wheel current is handled by the fast recovery diode which presents less of a “shoot-through” problem.
  • Excessive gate drive: If the MOSFET gate is driven with too high a voltage, then the gate oxide insulation can be punctured rendering the device useless. Gate-source voltages in excess of +/- 15 volts are likely to cause damage to the gate insulation and lead to failure. Care should be taken to ensure that the gate drive signal is free from any narrow voltage spikes that could exceed the maximum allowable gate voltage.
  • Insufficient gate drive - incomplete turn on: MOSFET devices are only capable of switching large amounts of power because they are designed to dissipate minimal power when they are turned on. It is the responsibility of the designer to ensure that the MOSFET device is turned hard on to minimise dissipation during conduction. If the device is not fully turned on then the device will have a high resistance during conduction and will dissipate considerable power as heat. A gate voltage of between 10 and 15 volts ensures full turn-on with most MOSFET devices.
  • Slow switching transitions: Little energy is dissipated during the steady on and off states, but considerable energy is dissipated during the times of a transition. Therefore it is desirable to switch between states as quickly as possible to minimise power dissipation during switching. Since the MOSFET gate appears capacitive, it requires considerable current pulses in order to charge and discharge the gate in a few tens of nano-seconds. Peak gate currents can be as high as 1 amp.
  • Spurious oscillation: MOSFETs are capable of switching large amounts of current in incredibly short times. Their inputs are also relatively high impedance, which can lead to stability problems. Under certain conditions high voltage MOSFET devices can oscillate at very high frequencies due to stray inductance and capacitance in the surrounding circuit. (Frequencies usually in the low MHz.) This behaviour is highly undesirable since it occurs due to linear operation, and represents a high dissipation condition.
    Spurious oscillation can be prevented by minimising stray inductance and capacitance around the MOSFETs. A low impedance gate-drive circuit should also be used to prevent stray signals from coupling to the gate of the device.
  • The “Miller” effect: MOSFET devices have considerable “Miller capacitance” between their gate and drain terminals. In low voltage or slow switching applications this gate-drain capacitance is rarely a concern, however it can cause problems when high voltages are switched quickly. A potential problem occurs when the drain voltage of the bottom device rises very quickly due to turn on of the top MOSFET. This high rate of rise of voltage couples capacitively to the gate of the MOSFET via the Miller capacitance. This can cause the gate voltage of the MOSFET to rise resulting in turn on of this device as well ! A shoot-through condition exists and MOSFET failure is certain if not immediate.
    The Miller effect can be minimised by using a low impedance gate drive which clamps the gate voltage to 0 volts when in the off state. This reduces the effect of any spikes coupled from the drain. Further protection can be gained by applying a negative voltage to the gate during the off state. eg. applying -10 volts to the gate would require over 12 volts of noise in order to risk turning on a MOSFET that is meant to be turned off !
  • Conducted interference with controller: Rapid switching of large currents can cause voltage dips and transient spikes on the power supply rails. If one or more supply rails are common to the power and control electronics, then interference can be conducted to the control circuitry.
    Good decoupling, and star-point earthing are techniques which should be employed to reduce the effects of conducted interference. The author has also found transformer coupling to drive the MOSFETs very effective at preventing electrical noise from being conducted back to the controller.
  • Static electricity damage: Antistatic handling precautions should be used to prevent gate oxide damage when installing MOSFET or IGBT devices. But are very reliable once they are soldered in place.

For a mathematical approach to understanding the operation of a FET and some further circuits, here are four documents:

The FET .pdf 670KB
The FET Amplifier .pdf 310KB
MOSFET Basics .pdf 380KB
FET Principles and Circuits .pdf 1MB

This is just a start to learning about transistor circuits and more can be found on Talking Electronics website.
We have avoided mathematics and theory for a reason. Transistors have such wide parameters that theoretical values and “Computer models” do not work.
Most circuits have to be built and tested using transistors from different manufacturers to be sure they work every time. The author had a batch of transistors from a different manufacturer for his FM transmitters and THEY DID NOT WORK.
The gain at 100MHz was so poor, the FM Bug did not transmit.
The only way to learn is by “building circuits.” Text books don’t do this. Show me a text book that explains the output current for a common-emitter stage is dependent on the LOAD resistor (in the circuits above).
Show me a book that explains why capacitor-coupling two stages is so [inefficient](/articles/the-transistor-amplifier/page-2#Coupling Cap).
Or why the load resistor in Fig 25 should be 15 ohms and not 330 ohms.
You can get too tied up in mathematics and theory and as the saying goes: “You can’t see the wood - (forest) - for the trees.”
You have to be able to look at a circuit and see things “going up and down” or “passing energy from one stage to the next.” And that’s what we have tried to do.

24/8/2011 - constantly being updated and added-to

email Colin Mitchell for any extra theory you want added.


Colin Mitchell

Colin Mitchell

Expertise

electronics
writing
PIC-Chips

Social Media

instagramtwitterwebsite
© 2021, All Rights Reserved.

Quick Links

Advertise with usAbout UsContact Us

Social Media
